مميزات خاصة

Ultra‑Fine Carbide Substrate – Manufactured from premium ultrafine‑grain tungsten carbide for exceptional hardness and chipping resistance, ideal for high‑precision machining.
Mirror‑Finish Cutting Edge – The CCGT positive‑rake geometry features razor‑sharp, double‑polished edges that produce superior surface finishes on aluminum, brass and other non‑ferrous metals.
Multiple Nose Radii – Available in three nose radii: 0.2 mm, 0.4 mm and 0.8 mm (CCGT060202/060204/060208), allowing flexibility from super‑fine finishing to light roughing.
H01 Grade for Non‑Ferrous Materials – H01 uncoated grade provides high edge sharpness and prevents built‑up edge formation when machining aluminum alloys and soft metals.

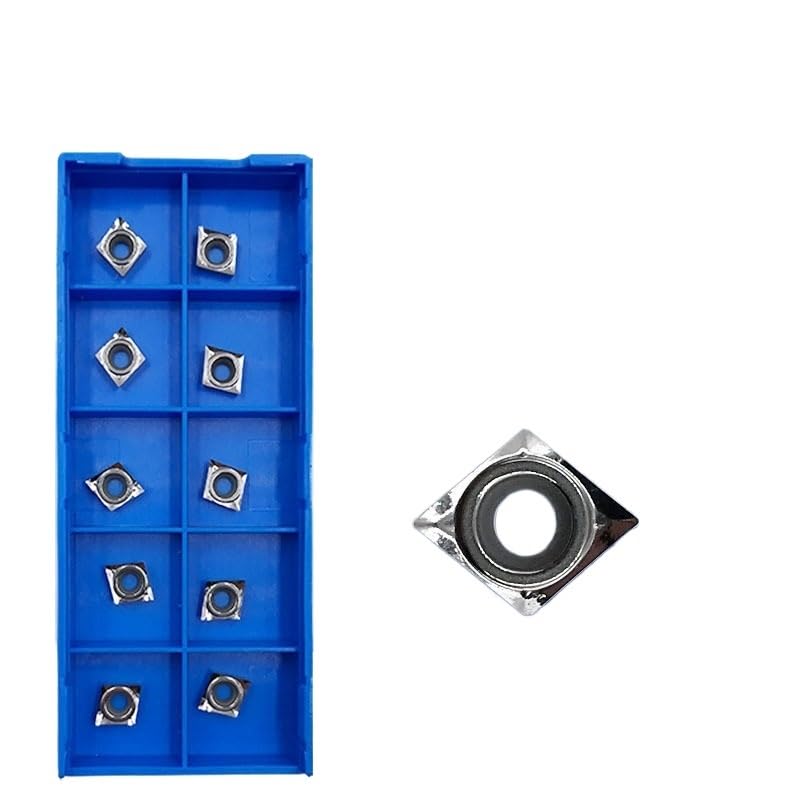

Professional Packaging – Each box includes 10 inserts stored in individual compartments, ensuring that cutting edges remain intact during transport and storage.

وصف

These CCGT06 series inserts are designed for ultra‑precision turning and finishing operations on non‑ferrous materials. The CCGT designation indicates an 80‑degree diamond insert with a positive rake and ground cutting edges, making it ideal for light cutting and achieving mirror‑like finishes.

Technical Parameters:

Models: CCGT060202‑AK H01, CCGT060204‑AK H01, CCGT060208‑AK H01

Shape: 80° rhombic (C‑type), positive rake

Inscribed circle: 6.35 mm (1/4 inch)

Thickness: 2.38 mm (0.094 inch)

Nose radii: 0.2 mm (0.008 inch) / 0.4 mm (0.016 inch) / 0.8 mm (0.031 inch)

Edge preparation: Double‑sided ground edges for maximum sharpness

Grade: H01 ultrafine carbide (uncoated), optimized for aluminum and non‑ferrous machining

Quantity: 10 inserts per box

Compatible holders: Suitable for CCGT‑style tool holders
