مميزات خاصة

Cemented Carbide Material – Manufactured from a fine‑grain carbide substrate to provide reliable wear resistance and toughness in grooving and parting operations.
1.5 mm Groove Width – MGMN150 design delivers a 1.5 mm (0.059 inch) cutting width, suitable for narrow grooves and precision parting on CNC lathes.
Multiple Grade Options – Available grades include NC3020 (for semi‑finishing and finishing on steels), NC3030 (for medium‑load cutting on steels) and PC9030 (for stainless steels and difficult‑to‑machine alloys).
M‑Style Clamping – Each insert features an M‑style clamping notch and chip‑breaker geometry to ensure secure seating and efficient chip evacuation.

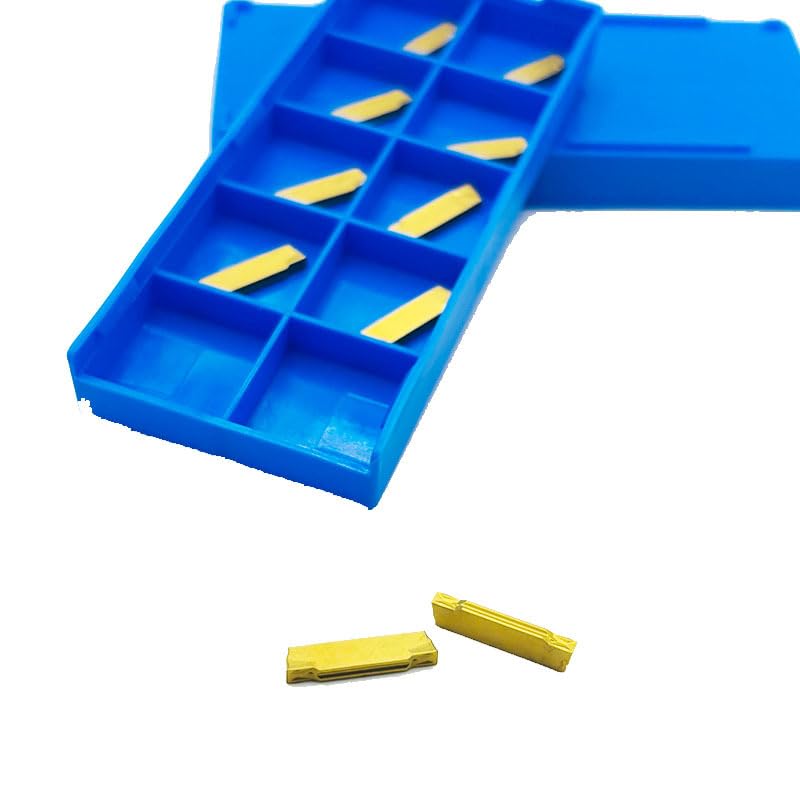

Packaged in Protective Case – Each box contains 10 inserts stored individually to prevent damage during transport and storage.

وصف

These MGMN150 grooving inserts are designed for precision grooving and parting tasks on CNC lathes and turning centers. The inserts provide a narrow groove width of 1.5 mm and use an M‑style clamping system that allows quick and secure replacement.

Technical Parameters:

Model: MGMN150

Cutting width: 1.5 mm (0.059 inch)

Approx. length: 15 mm (0.59 inch)

Approx. thickness: 3 mm (0.12 inch)

Grades available: NC3020, NC3030, PC9030

Coating: PVD/TiAlN or CVD depending on grade

Clamping style: M‑type grooving insert

Quantity: 10 inserts per box

Compatible holders: Fits MGEHR/MGIVR/MGIVL and other MGMN‑style grooving holders

Grade Descriptions:

NC3020: Fine‑grain carbide with PVD coating; suitable for semi‑finishing and finishing of steels and alloy steels.

NC3030: Tougher substrate and thicker coating; designed for medium‑load grooving or parting operations on steel.

PC9030: Optimized for stainless steels and high‑temperature alloys; resists built‑up edge and maintains edge sharpness under lower cutting speeds.
