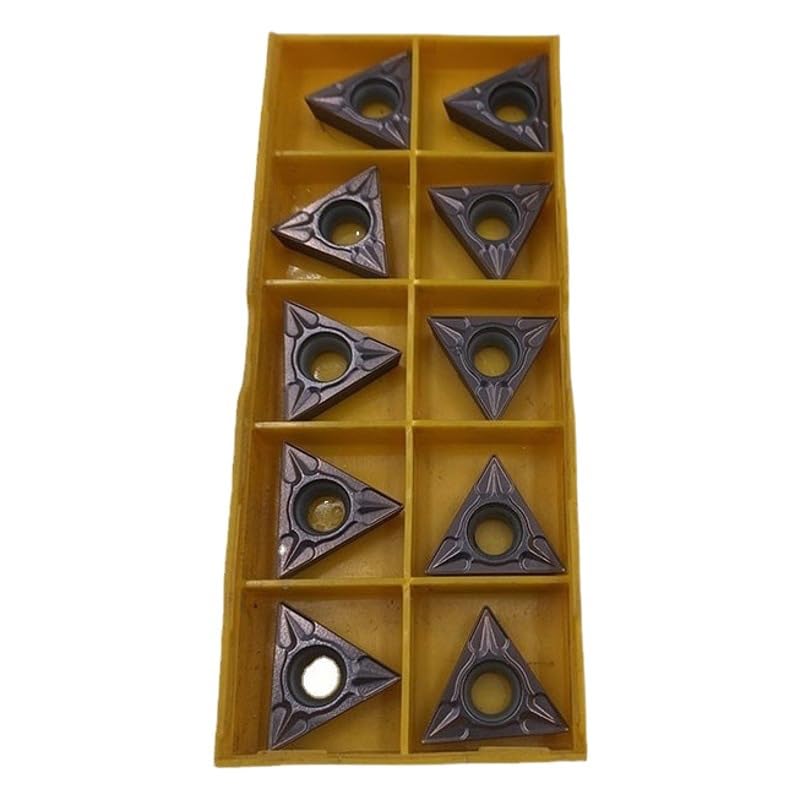

Achieve accurate and efficient turning with these TCMT16 series inserts. Designed for precision work on CNC lathes and manual machines, the TCMT design provides excellent chip control and surface quality due to its positive rake and sharp cutting edges.

Technical Parameters:

Models: TCMT16T304 (0.4 mm radius) / TCMT16T308 (0.8 mm radius)

Shape: 60° triangular (T‑type), positive rake

Inscribed circle: 16 mm (0.63 inch)

Thickness: 4.76 mm (0.188 inch)

Nose radii: 0.4 mm (0.016 inch) / 0.8 mm (0.031 inch)

Cutting edges: Single‑sided inserts with one cutting edge per insert

Grades available: UE6020 (stainless steel & heat‑resistant alloys), VP15TF (steel & stainless steel)

Coating: Multilayer PVD coating for high wear and oxidation resistance

Quantity: 10 inserts per box

Compatible holders: TCMT‑style tool holders

Grade Information:

UE6020: Developed for tough materials such as stainless steels and superalloys; combines a tough carbide substrate with a heat‑resistant PVD coating to prevent edge chipping and extend tool life.

VP15TF: A general‑purpose grade featuring a TiAlN‑based PVD coating and fine‑grain carbide base, offering a good balance of toughness and wear resistance for steel and stainless steel turning.
