Special Features

Cemented Carbide Base – Made from ultrafine carbide substrate engineered for machining non‑ferrous metals, providing reliable wear resistance and edge stability.
Polished Positive Rake – DCGT inserts feature a positive rake angle and a mirror‑polished cutting edge, ideal for achieving high surface finish on aluminum and other soft metals.
Two Nose Radii – Choose between 0.2 mm (DCGT11T302) for ultra‑fine finishing or 0.4 mm (DCGT11T304) for general finishing and light cuts.
AKH01 Grade – Specially developed for aluminum alloy turning, this uncoated grade offers exceptional sharpness and reduces built‑up edge during high‑speed machining.

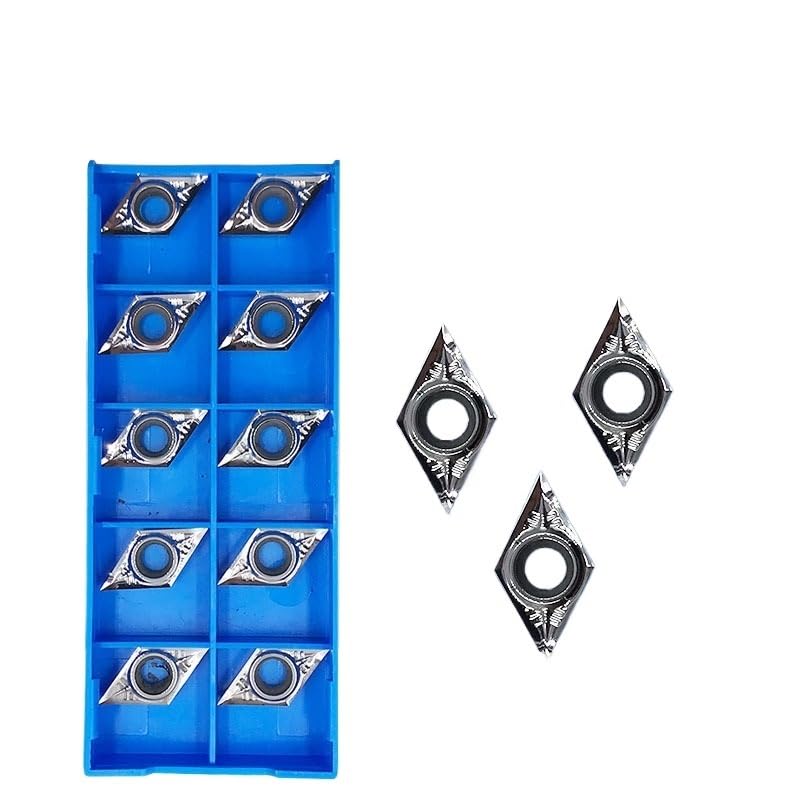

Safe Storage – Supplied in a protective plastic box with 10 individually separated inserts, ensuring edges remain pristine until they are needed.

Description

These DCGT11 series inserts are precision turning tools designed specifically for non‑ferrous materials such as aluminum, copper and brass. The DCGT geometry consists of a 55° diamond shape with a positive rake, providing a razor‑sharp cutting edge and excellent chip control for smooth finishes.

Technical Parameters:

Models: DCGT11T302 (0.2 mm radius), DCGT11T304 (0.4 mm radius)

Shape: 55° diamond (D‑type), positive rake

Inscribed circle: 11 mm (0.433 inch)

Thickness: approx. 3.18 mm (0.125 inch)

Nose radii: 0.2 mm (0.008 inch) / 0.4 mm (0.016 inch)

Edge preparation: Double‑sided ground and polished

Grade: AKH01 – ultra‑sharp uncoated grade for aluminum and other non‑ferrous metals

Quantity: 10 inserts per box

Compatible holders: Fits DCGT‑style tool holders
