Carbide Grooving Inserts for MGMN300‑M, NC3020/NC3030/PC9030 Grades, 10 pcs, 3.0 mm Width(MGMN300PC9030Purple) in Saudi Arabia

Carbide Grooving Inserts for MGMN300‑M, NC3020/NC3030/PC9030 Grades, 10 pcs, 3.0 mm Width(MGMN300PC9030Purple)

SAR 120
Brand
Generic
Category
Cutting Tools
Weight
50 g
ColorMGMN300PC9030Purple
– 1 +

Special Features

  • Cemented Carbide Inserts – Constructed from carbide material with appropriate toughness and wear resistance for grooving and parting operations.
  • 3.0 mm Groove Width – The MGMN300‑M insert provides a 3.0 mm (0.118 inch) cutting width, suitable for wider grooves and parting cuts.
  • M‑Style Chipbreaker – M‑type clamping and chipbreaker geometry help secure the insert and promote efficient chip evacuation.
  • Grade Options – Choose from NC3020 (for finishing and semi‑finishing on steels), NC3030 (for medium‑load cutting on steel) or PC9030 (for stainless steel and difficult‑to‑machine alloys).

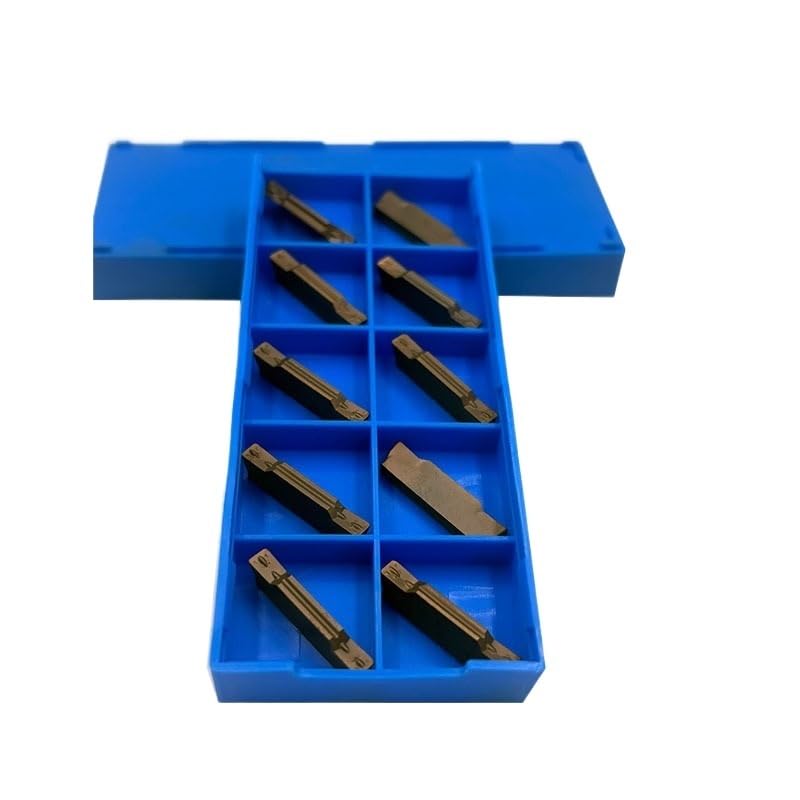

  • Quantity of 10 – Delivered in a compartmentalized plastic box containing ten inserts, protecting the cutting edges during storage and transit.

Description

These MGMN300‑M grooving inserts are designed for parting and grooving applications on CNC lathes and other turning equipment. The 3 mm cutting width and M‑style clamping design ensure stable cutting performance and quick insert replacement.

Technical Parameters:

Model: MGMN300‑M

Cutting width: 3.0 mm (0.118 inch)

Approx. length: 15 mm (0.59 inch)

Approx. thickness: 3.5 mm (0.14 inch)

Grades: NC3020, NC3030, PC9030

Coating: PVD or CVD based on grade

Clamping style: M‑type grooving insert

Quantity: 10 inserts per box

Compatible holders: Fits MGEHR/MGIVR or other MGMN‑style grooving tool holders with 3 mm slots

Grade Descriptions:

NC3020: Fine‑grain carbide with a PVD coating, suitable for semi‑finishing and finishing on steels and alloy steels.

NC3030: Tougher substrate with thicker coating for medium‑load cutting on steels; offers a balance of wear resistance and toughness.

PC9030: Designed for stainless steels and heat‑resistant alloys, this grade resists built‑up edge and maintains edge sharpness at lower speeds.
