مميزات خاصة

Robust Carbide Material – Manufactured from high‑quality carbide for excellent hardness and wear resistance, providing reliable performance in continuous and interrupted cutting.
Six Cutting Edges – TNMG inserts have a 60° triangle negative‑rake design, offering six usable cutting edges per insert for improved tool economy.
Two Nose Radii – Available in 0.4 mm (TNMG160404‑HA) for finishing and 0.8 mm (TNMG160408) for semi‑finishing; adjust your radius to suit the required surface finish.
PC9030 Grade for Stainless Steel – PC9030 is a specialized grade optimized for stainless steel and heat‑resistant alloys, with a tough substrate and a PVD/TiAlN coating that resists built‑up edge and chipping.

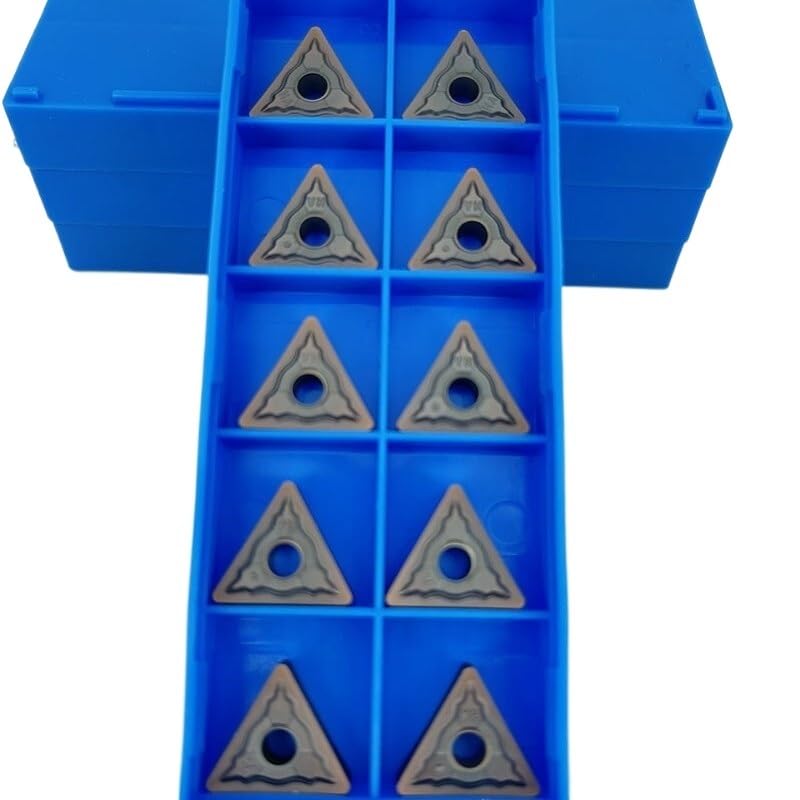

Secure Storage – Supplied in a durable plastic box with 10 individually compartmentalized inserts, preventing damage and making replacement convenient.

وصف

These TNMG16 series inserts are designed for heavy duty turning and profiling on CNC lathes and manual machines. The TNMG geometry provides a 60‑degree triangular insert with a negative rake, delivering six cutting edges per insert and enhanced strength for stable machining.

Technical Parameters:

Models: TNMG160404‑HA (0.4 mm radius) / TNMG160408 (0.8 mm radius)

Shape: 60° triangular (T‑type), negative rake (N‑type), multi‑edge design

Inscribed circle: 16 mm (0.63 inch)

Thickness: 4.76 mm (0.188 inch)

Nose radii: 0.4 mm (0.016 inch) / 0.8 mm (0.031 inch)

Chipbreaker: HA chipbreaker for efficient chip control in stainless steel turning

Grade: PC9030 – tough substrate with high‑performance coating for stainless steels and high‑temperature alloys

Quantity: 10 inserts per box

Compatible holders: Suitable for TNMG‑style tool holders such as MTGNR, DTGNR, GTN tooling blocks
