Carbide Turning Inserts for CNMG120404/CNMG120408, 10 pcs, 0.4/0.8 mm Radius

SAR 157
Brand
Generic
Category
Cutting Tools
Weight
50 g
– 1 +

Special Features

  • Durable Carbide Substrate – Built from high‑grade cemented carbide to provide excellent wear resistance and toughness for demanding turning operations.
  • Multilayer Coating – Coated with a TiCN/Al₂O₃/TiN multilayer for enhanced heat resistance and reduced built‑up edge during high‑speed machining of steels and cast irons.
  • Negative‑Rake 80° Diamond – CNMG inserts feature an 80‑degree rhombic shape with 0° relief angle, offering eight usable cutting edges (four per side) for economical machining.
  • Two Nose Radii – Available in 0.4 mm (CNMG120404) for fine finishing and 0.8 mm (CNMG120408) for semi‑finishing and roughing applications.

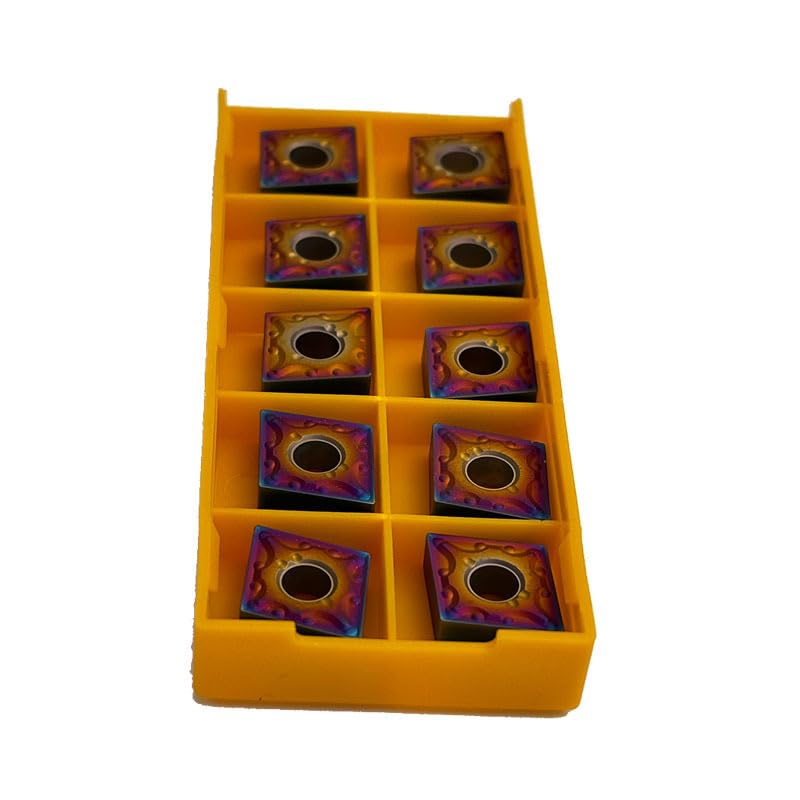

  • Secure 10‑Pack – Supplied in a sturdy plastic box with 10 inserts, each separated to protect the cutting edges during transport and storage.

Description

Upgrade your CNC turning operations with these CNMG12 series inserts. Engineered for efficient material removal on steels, cast irons and stainless steels, the CNMG geometry provides a strong cutting edge and excellent chip control due to its negative rake design and robust corner angle.

Technical Parameters:

Models: CNMG120404 (0.4 mm radius) / CNMG120408 (0.8 mm radius)

Shape: 80° rhombic (C‑type), negative rake (N‑type)

Tolerance class: M (ISO medium tolerance)

Chipbreaker: G‑style chipbreaker for general turning

Inscribed circle: 12.7 mm (0.5 inch)

Thickness: 4.76 mm (0.188 inch)

Nose radii: 0.4 mm (0.016 inch) / 0.8 mm (0.031 inch)

Cutting edges: 8 edges per insert (double‑sided)

Coating: TiCN/Al₂O₃/TiN multilayer coating

Quantity: 10 inserts per box

Compatible holders: Suitable for CNMG‑style holders such as DNMG and CNMG toolholders
