مميزات خاصة

Premium Carbide Material – Constructed from high‑quality tungsten carbide for exceptional hardness and wear resistance during demanding turning operations.
80‑Degree Triangular Geometry – WNMG inserts feature an 80° negative‑rake triangle with six cutting edges, providing excellent strength and longevity in roughing and semi‑finishing.
Dual Nose Radii – Available in 0.4 mm (0.016 inch) for finishing (WNMG080404‑MA) and 0.8 mm (0.031 inch) for medium roughing (WNMG080408‑MA), allowing versatility across various cutting tasks.
Optimized Chipbreaker – MA‑type chipbreaker design helps reduce cutting force, improves chip control and surface finish on steels and alloy steels.

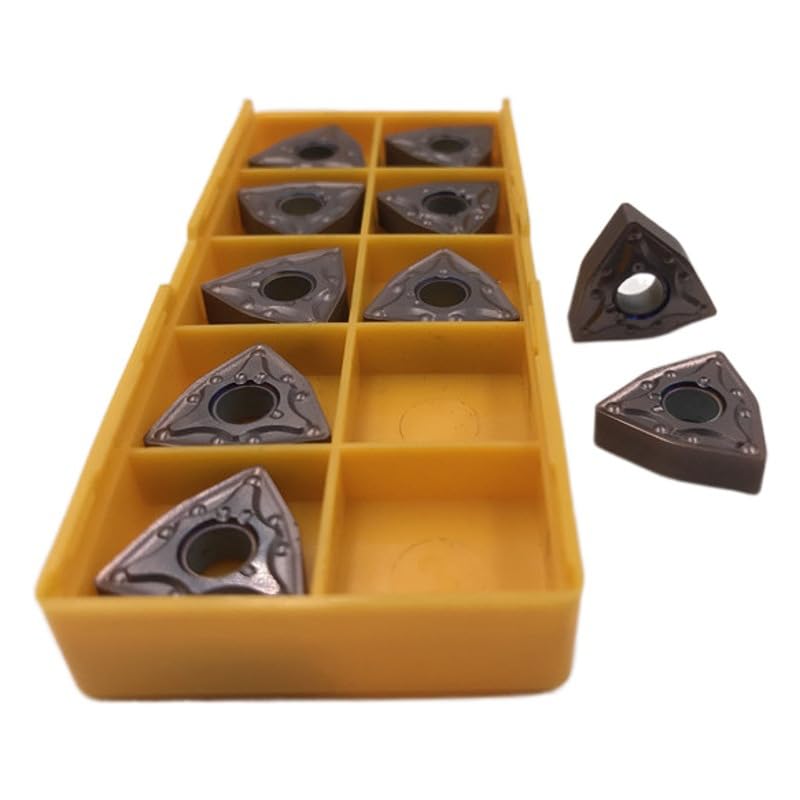

Secure Packaging – Supplied as a set of 10 inserts in a durable, compartmentalized plastic box to protect the cutting edges during shipment and storage.

وصف

These WNMG08 series inserts are versatile, negative‑rake triangular inserts designed for both roughing and semi‑finishing operations on CNC lathes and manual machines. The W‑style shape delivers six usable cutting edges per insert, reducing tooling cost while providing robust performance.

Technical Parameters:

Models: WNMG080404‑MA (0.4 mm radius) / WNMG080408‑MA (0.8 mm radius)

Shape: 80° triangular (W‑type), negative rake

Inscribed circle: 12.7 mm (0.5 inch)

Thickness: 4.76 mm (0.188 inch)

Nose radii: 0.4 mm (0.016 inch) / 0.8 mm (0.031 inch)

Cutting edges: 6 edges per insert (double‑sided)

Chipbreaker: MA (medium to finishing)

Coating: Multi‑layer hard coating for improved wear and heat resistance

Quantity: 10 inserts per box

Compatible holders: Suitable for WNMG‑style tool holders
