Special Features

High‑Grade Carbide – Positive‑rake 80‑degree rhombic inserts manufactured from premium carbide, delivering excellent toughness and wear resistance.
Two Nose Radii – Select 0.4 mm (0.016 inch) radius for finishing (CCMT09T304) or 0.8 mm (0.031 inch) for semi‑finishing (CCMT09T308), depending on your application.
Multiple Coating Grades – VP15TF grade uses a TiAlN‑based PVD coating for general‑purpose turning of steels and stainless steels; US735 grade (sometimes marked US73) features a CVD coating for superior performance in steel and cast iron machining.
Versatile Application – The CCMT09T3 geometry (9.52 mm inscribed circle, 3.97 mm thickness) fits common SCLCR/SCCCR and other positive‑rake tool holders, ideal for CNC lathes or manual machines.

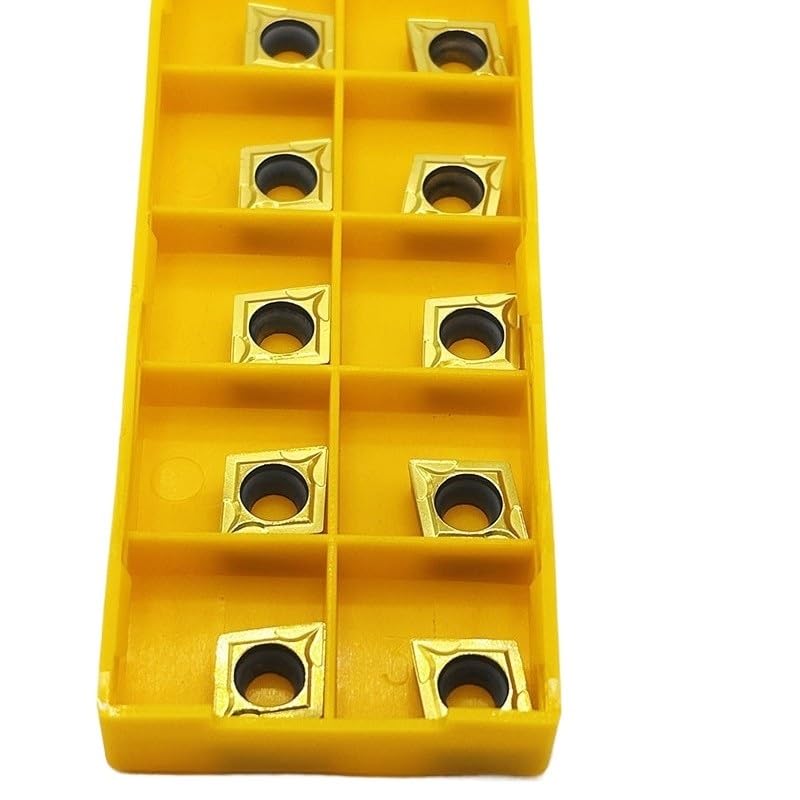

Economical Pack – Each box contains 10 inserts stored individually in a durable case, ensuring safe transport and convenient replacement.

Description

Upgrade your turning operations with these CCMT09T3 series inserts. Designed for precision machining, they feature an 80‑degree rhombic shape and positive rake, giving superior chip control and a smooth surface finish. Two cutting edge options are available:

CCMT09T304 – Nose radius 0.4 mm (0.016 inch); ideal for finishing cuts or light semi‑finishing on steels and stainless steels.

CCMT09T308 – Nose radius 0.8 mm (0.031 inch); suitable for general‑purpose and medium roughing operations.

Technical Parameters:

Model: CCMT09T304‑MA / CCMT09T308‑MA

Insert type: 80° rhombic (C‑type), positive rake

Inscribed circle: 9.525 mm (3/8 inch)

Thickness: 3.97 mm (0.156 inch)

Nose radius: 0.4 mm or 0.8 mm

Cutting edge count: One edge per insert (single‑sided)

Grades: VP15TF (PVD TiAlN), US735 (CVD)

Quantity: 10 inserts per box

Compatible holders: SCLCR, SCCCR, CCMT indexable turning holders
