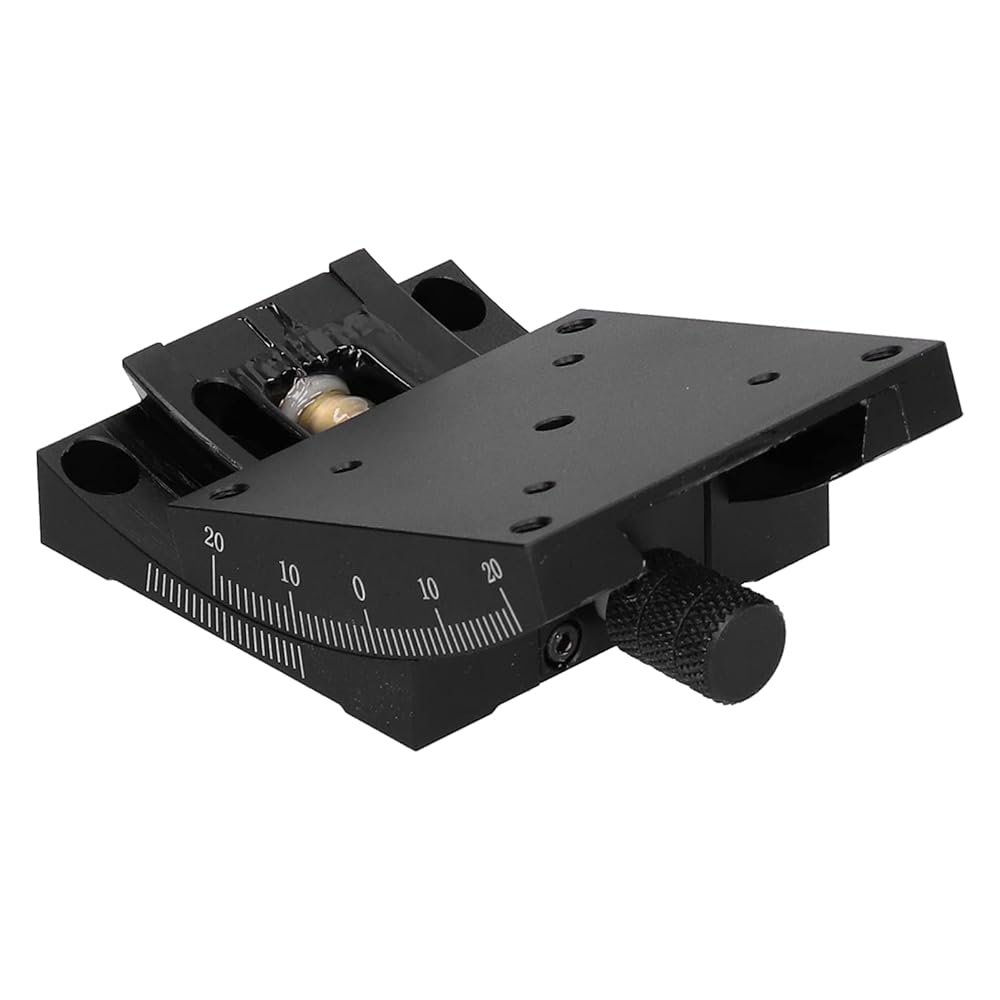

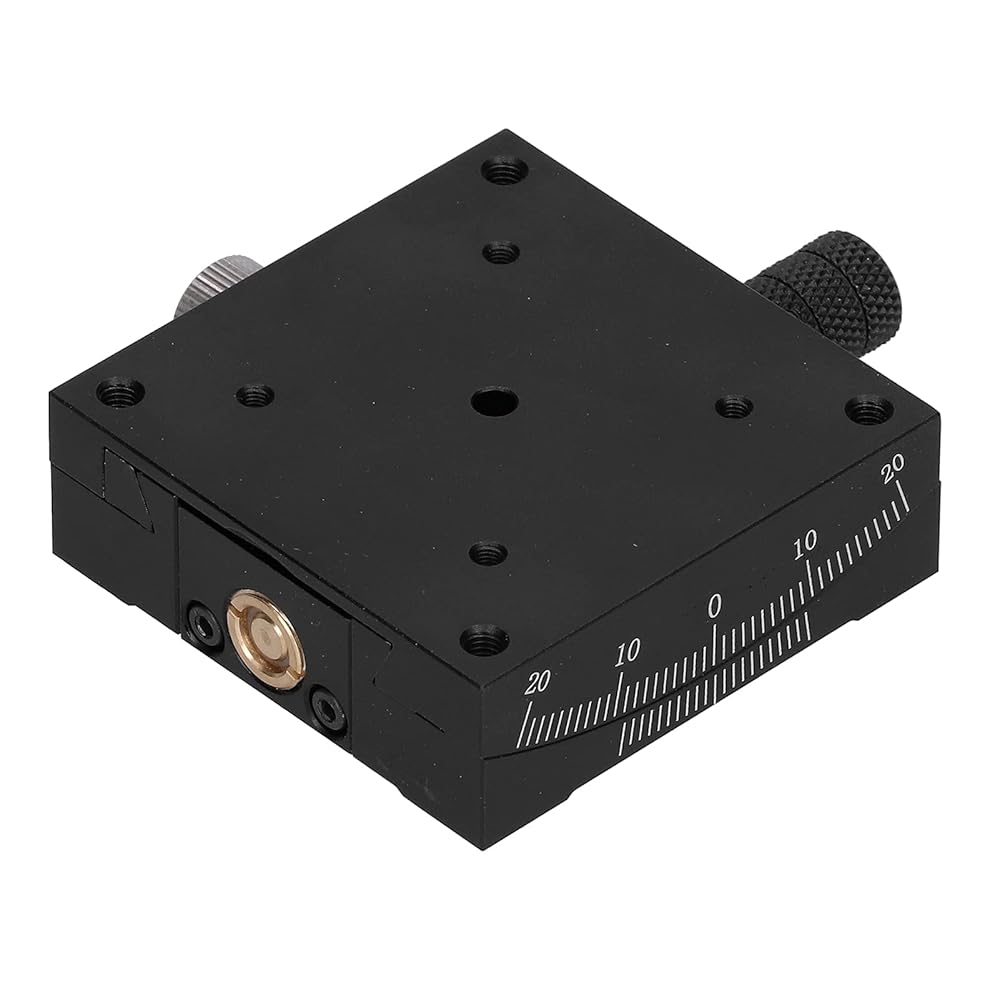

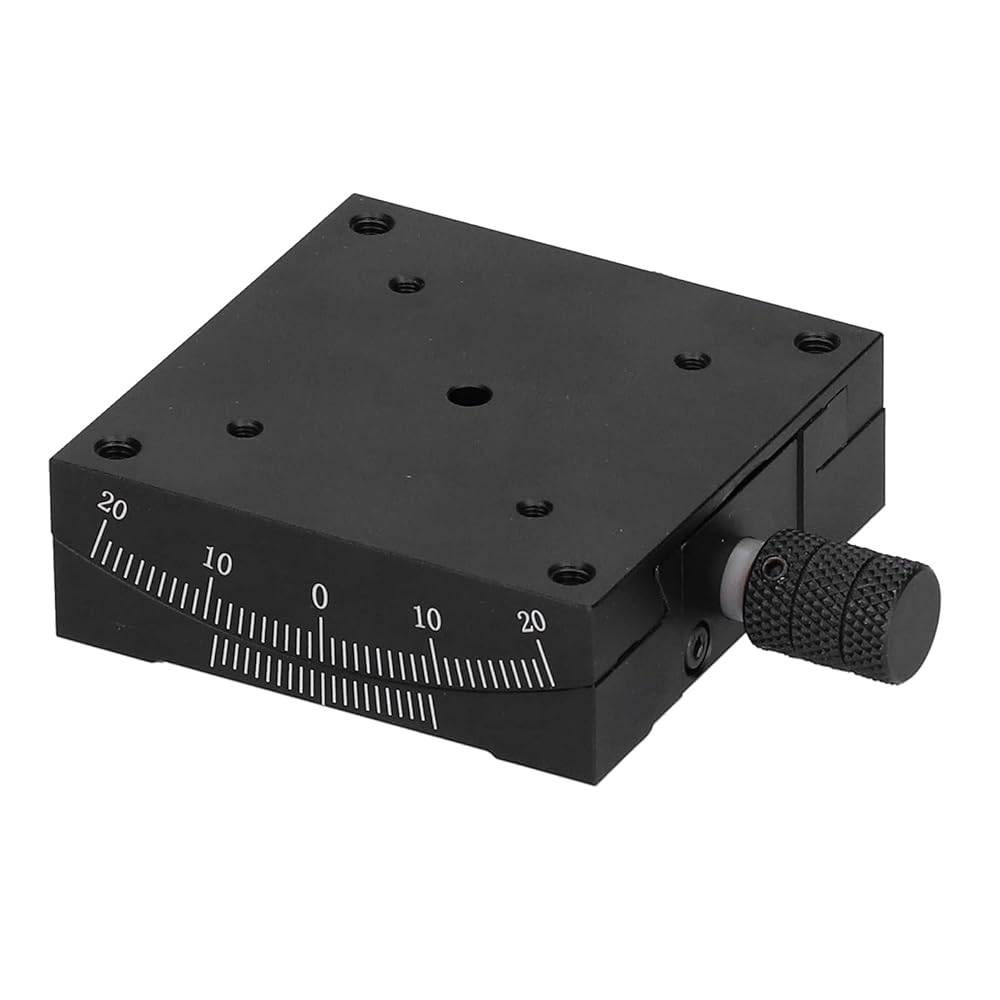

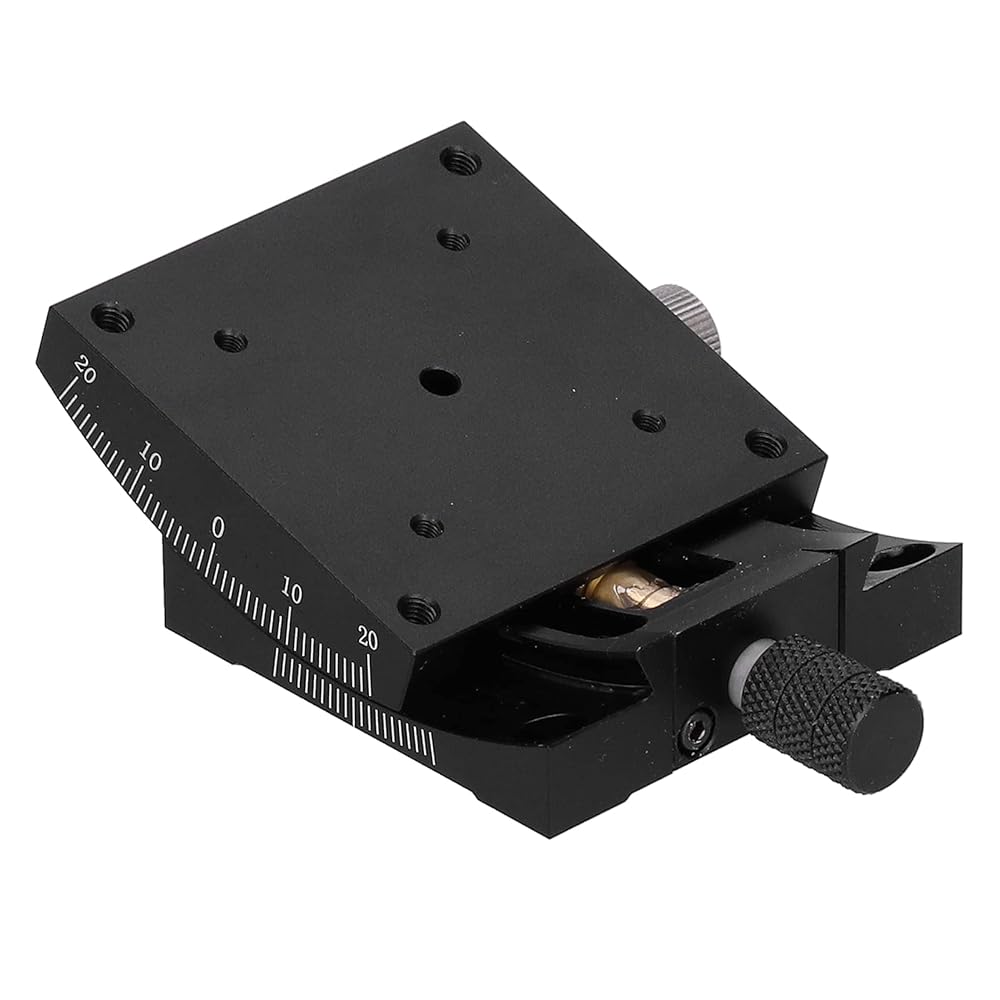

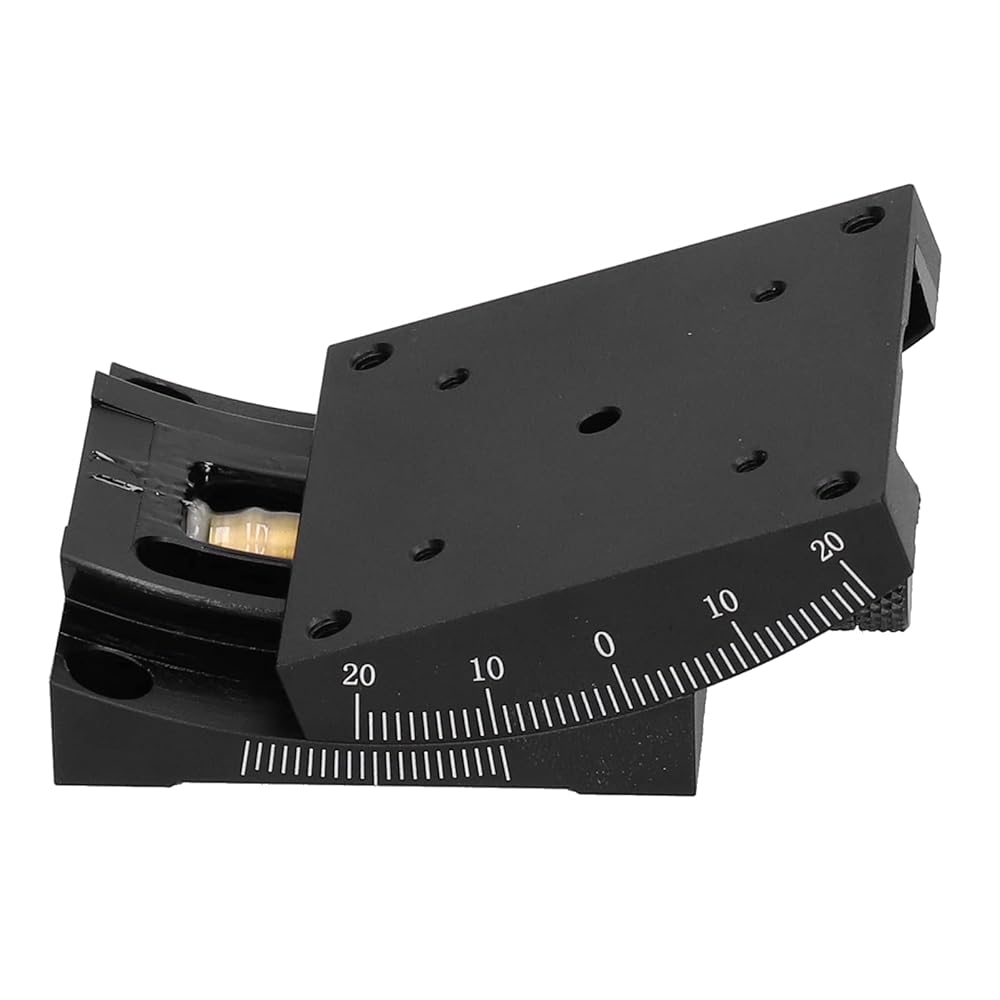

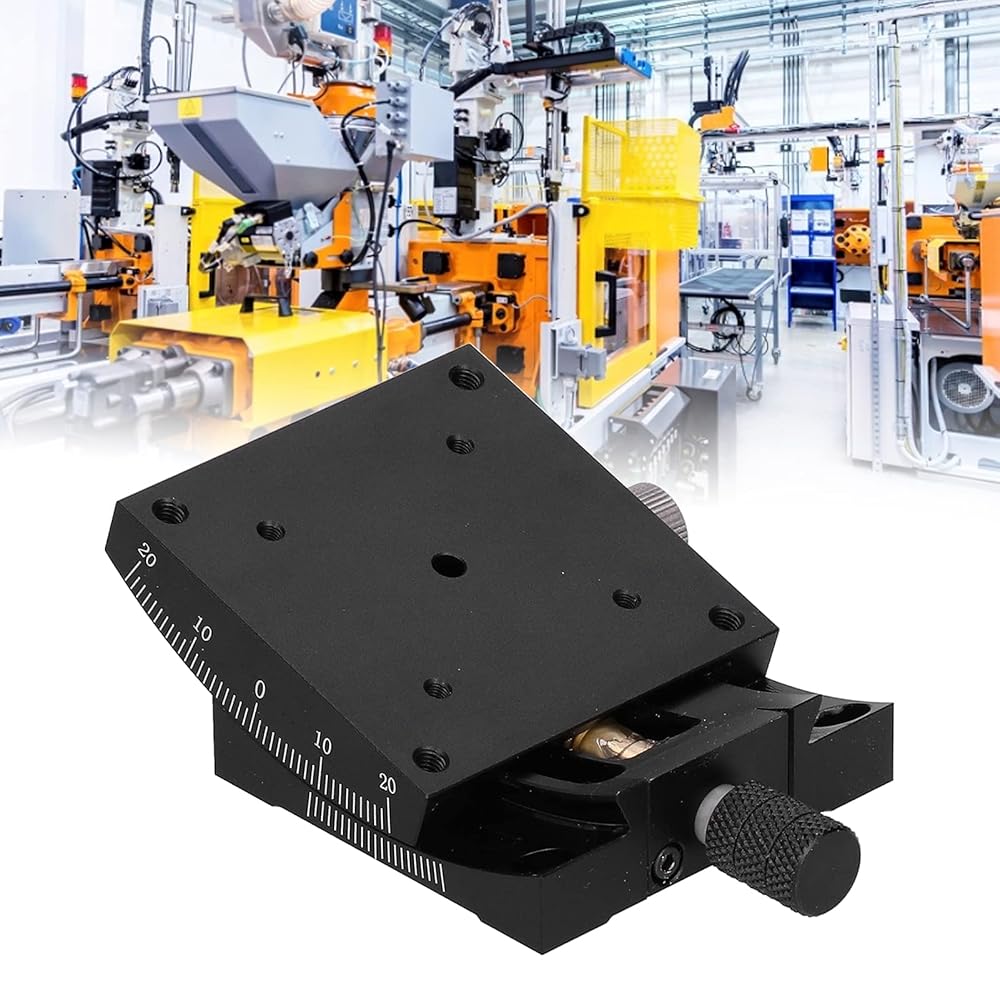

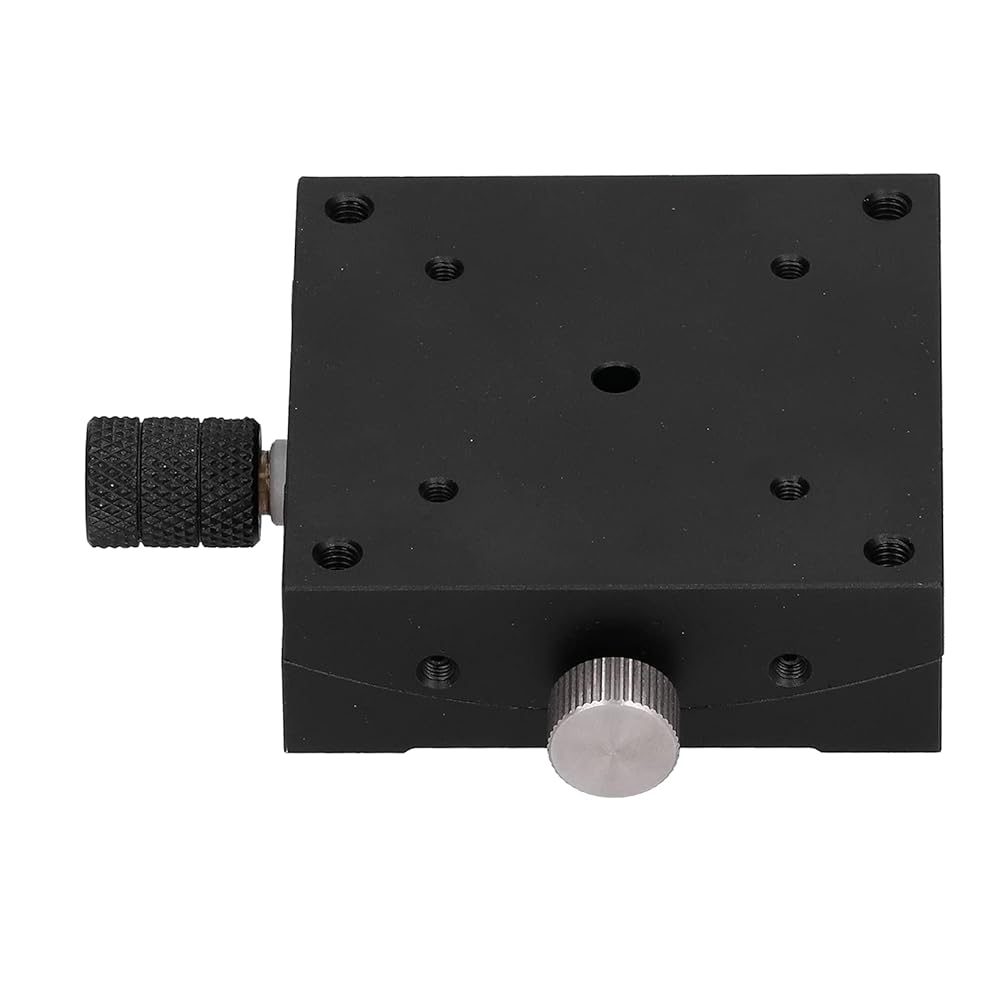

HXV - A60 Manual Linear Stage Goniometer, Dovetail Sliding Table with Turbine Drive, 60x60mm Fine - Tune Platform for Optical and Measuring Equipment

SAR 492
– 1 +

Special Features

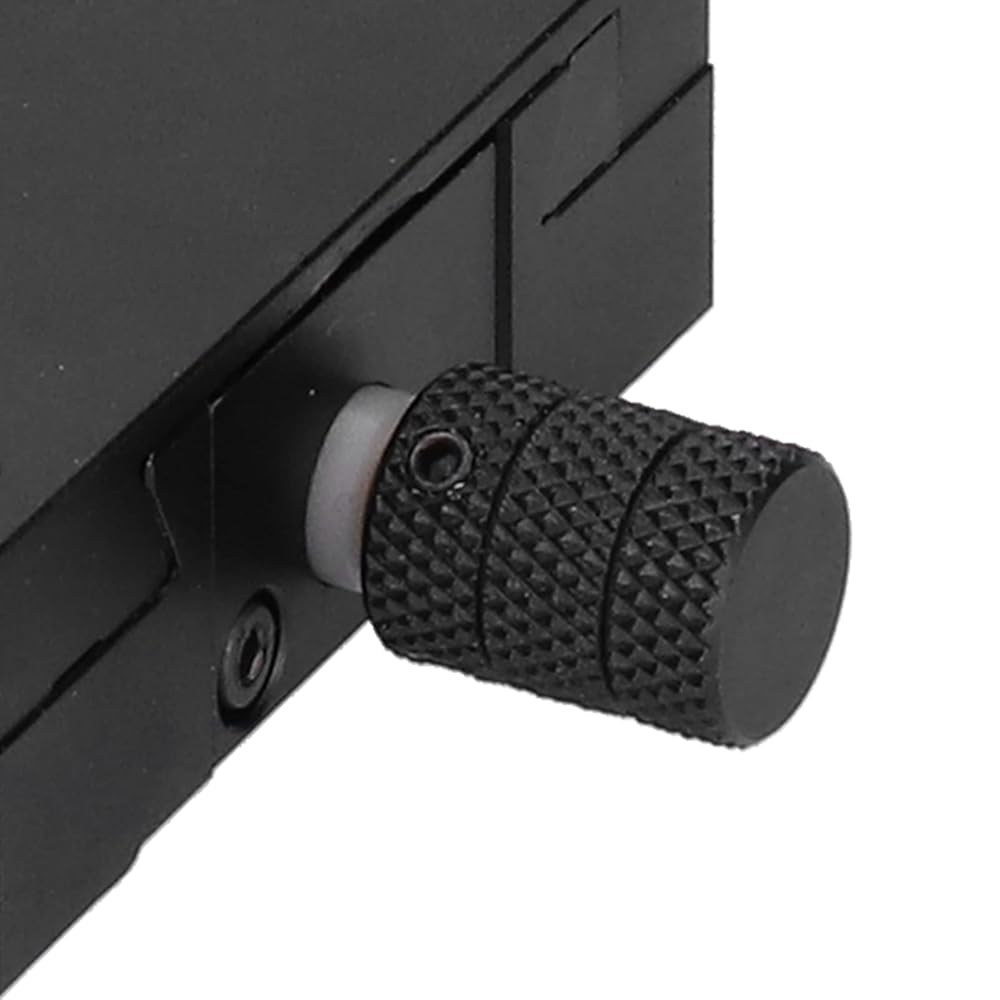

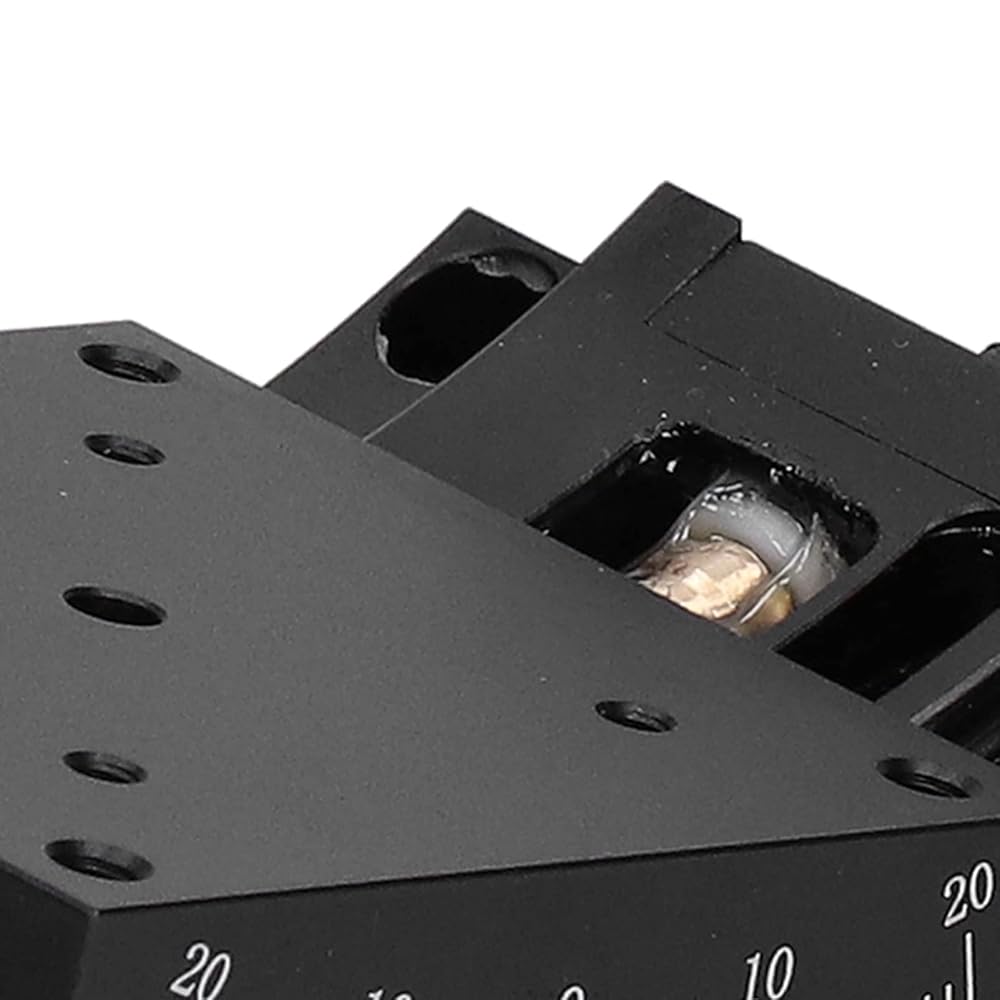

  • Precision Turbine Drive: This HXV-A60 manual linear stage goniometer uses a turbine and drive system for smooth, accurate adjustments with a minimum reading of 0.1° and ±10° moving angle, ideal for tasks requiring fine control in optical alignment or lab setups.
  • Dovetail Guide for Stability: The dovetail sliding table design ensures high load resistance up to 29.4N (3Kgf) and stable movement with straightness of 0.03mm, making this linear stage reliable during repeated use in sensitive measuring environments.
  • Versatile Application Range: Designed for use with optical equipment, microscopes, semiconductor manufacturing tools, testing machines, and photographic setups, this manual linear stage offers precise positioning and hobbyists alike.
  • Durable Aluminum Alloy Build: Made from lightweight yet strong aluminum alloy with black anodizing for enhanced resistance, scratch protection, and quiet operation, while R-angle edges and deburred surfaces improve user safety during handling.
  • Compact 60x60mm Platform with Mounting Flexibility: This linear moving parts platform measures 60x60mm and includes eight threaded mounting holes (4-M4mm and 4-M3mm) for secure attachment to various devices, supporting a ±20mm moving stroke for versatile positioning needs.

Description

Item Type: Linear StageModel: HXV-A60Material: Aluminum alloyTable Size: Approx. 60 x 60mm / 2.4 x 2.4inMoving Angle: ±10°Body Material: Aluminum alloy (black anodized)Drive Mode: Turbine wormGlide Path: Manual rotation of the gear ( wheel + )Rail Type: Dovetail grooveNumber of Threaded Mounting Holes on the Countertop: 4+4Threaded Mounting Hole Diameter: 4-M4mm; 4-M3mmDepth of Threaded Mounting Hole: Approx. 4 ~ 6mm / 0.16 ~ 0.24in; 4 ~ 5mm / 0.16 ~ 0.2inVertical Load Resistance: 29.4N (3Kgf)Moving Stroke: ± Approx. 20mm / 0.8inMinimum Reading: 0.1°Straightness: 0.03mmScope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, handling machines, processing machines, printing machines and othersPackage List：1 x Linear Stage
