Globe Valves

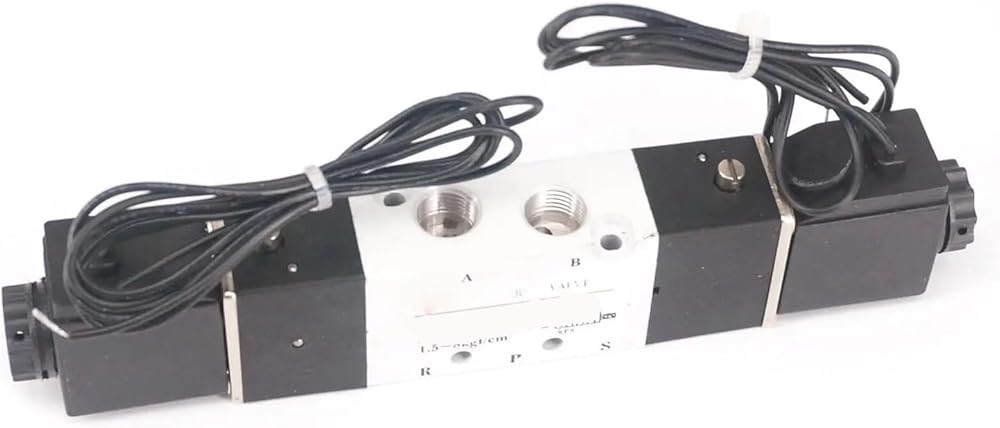

Product model: 4V120-06 air valve 5-port 2-position solenoid valve
Specification
Voltage: AC24V AC110V AC220V DC12V DC24V
Medium: air
Action mode: internal
Type: 5-port 2-bit
Aperture: 12mm2 (CV=0.67)
Interface size: IN-OUT 1/8''BSPT
Lubrication: Not required
Pressure range: 0.15-0.8MPa
Pressure resistance: 1.5MPa
temperature. Range: 5-50
Material: aluminum alloy
Protection level: IP65
