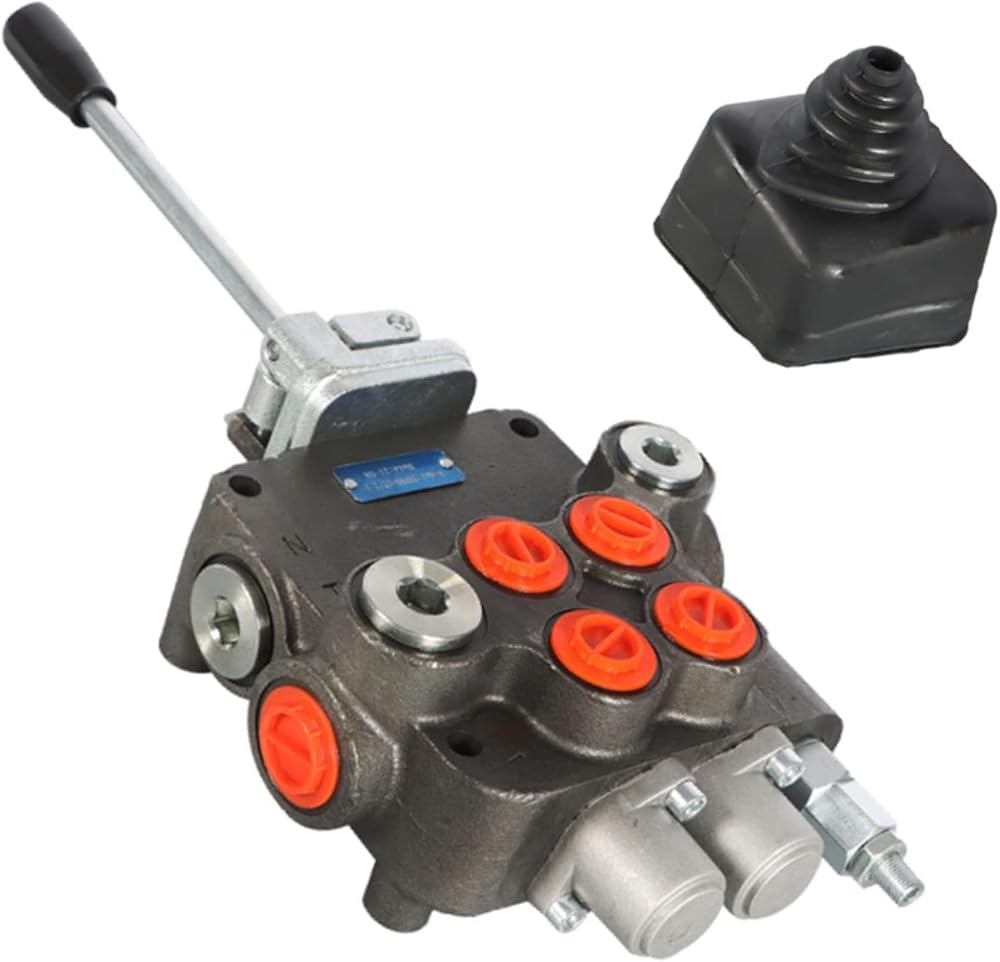

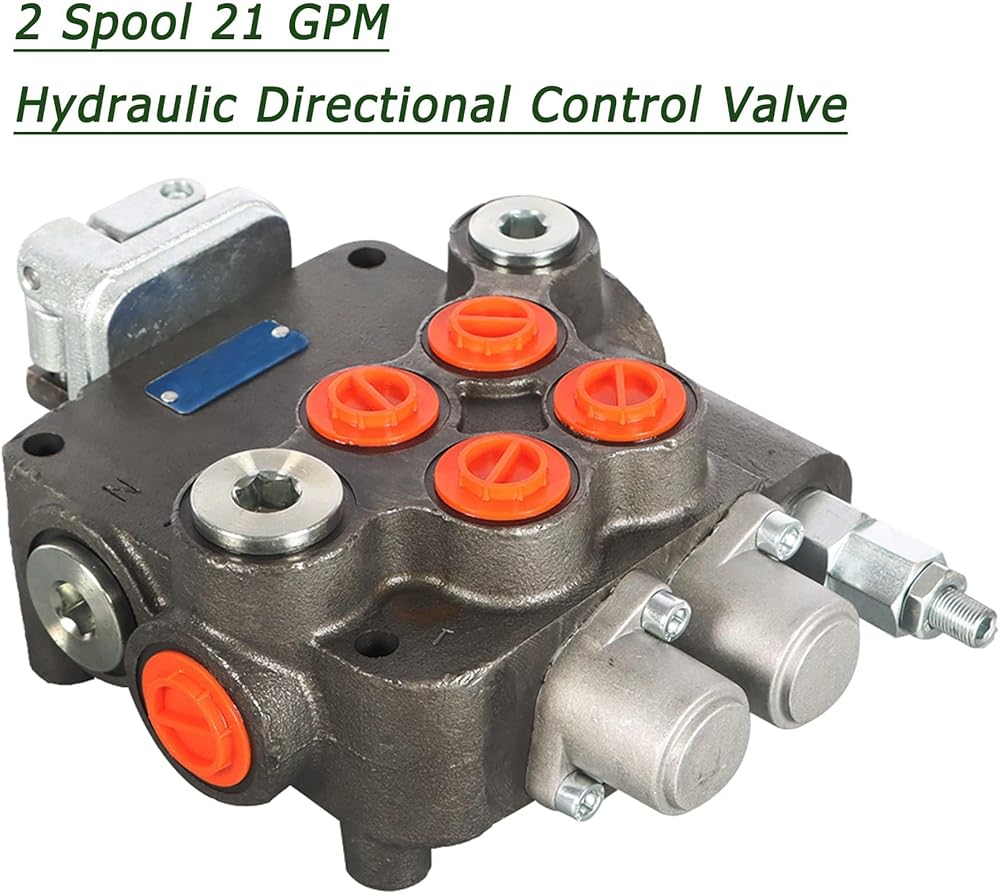

Hydraulic Valve 2 Spool 21GPM 3625PSI SAE Ports Double Acting Hydraulic Directional Control Valve
Specification:
Nominal Flow: 21GPM
Relief Valve: Adjustable

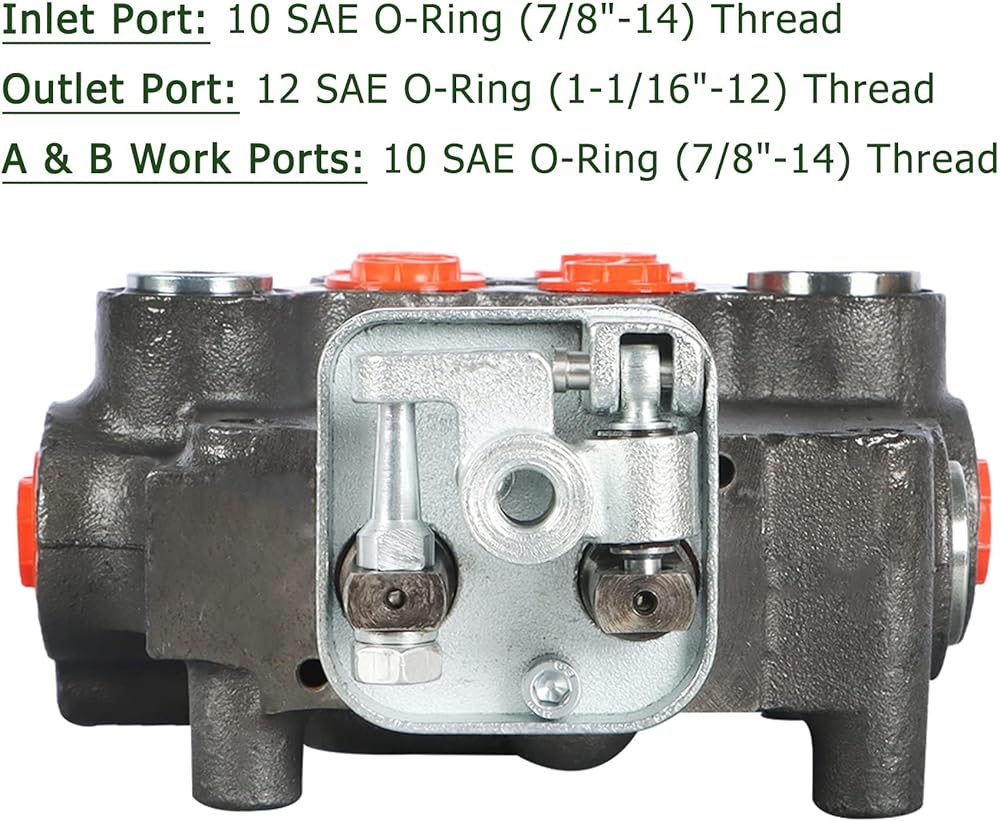

Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 12 SAE O-Ring (1-1/16") Thread
A & B Work Ports: 10 SAE O-Ring (7/8"-14) Thread

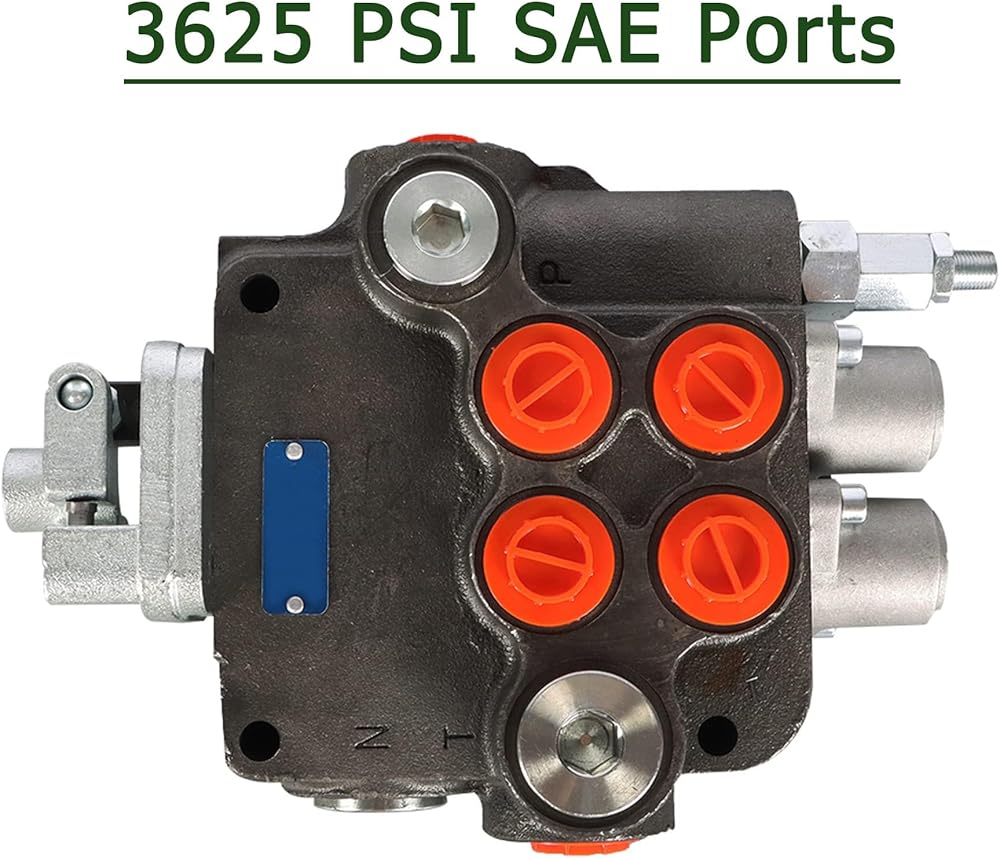

Max Operating Pressure: P=3625PSI, T=725PSI, A & B=4350PSI
The oil port dimensions of this product are PT: 7/8 inches in the US standard, AB: 3/4 inches in the US standard, and C port: 7/8 inches in the US standard
Features:
1. 3625PSI with adjustable pressure relief handle for maximum flow of 21GPM
2. All spools of the product are standard double acting springs returning to neutral place
3. Hydraulic directional valve is suitable for small tractor, tractors loader, light loader, log splitter, etc
4. Used to manage and guide the flow of hydraulic oil between hydraulic pumps and hydraulic cylinders, motors, tanks, etc

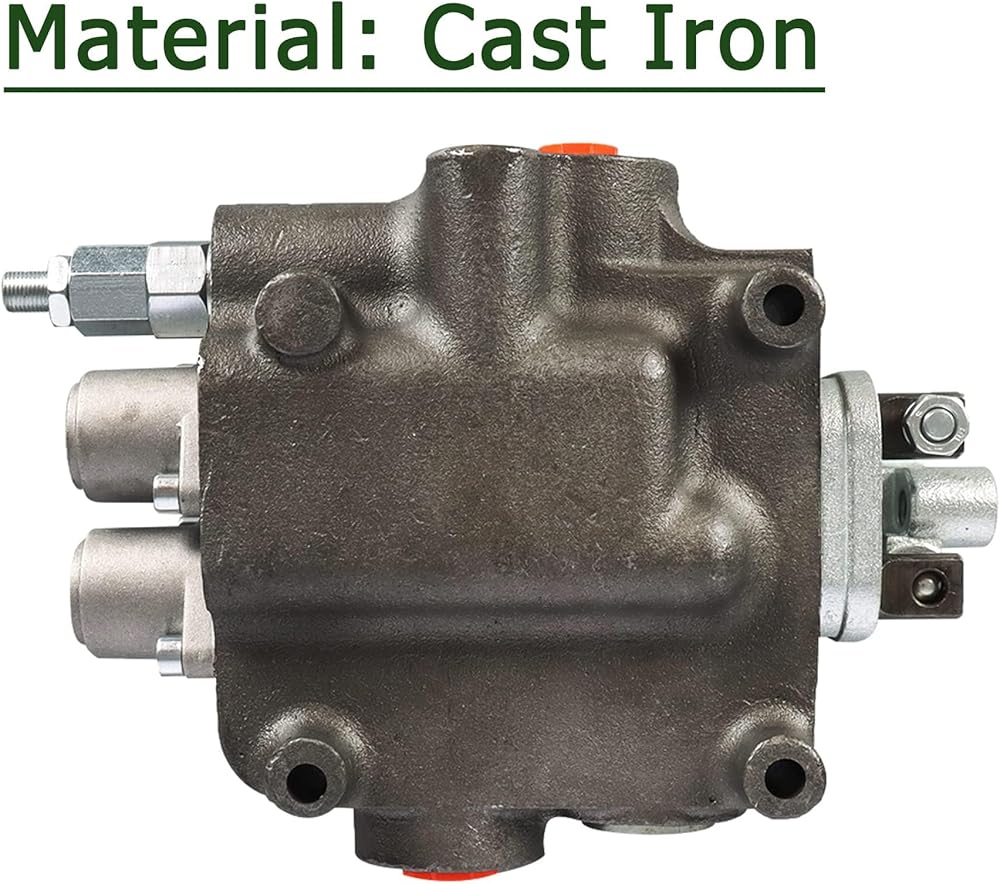

5. This product adopts durable cast iron material and hard chrome plated valve core design to make the product has a long service life
Package Includes:
1 x 2 Spool Hydraulic Directional Control Valve
