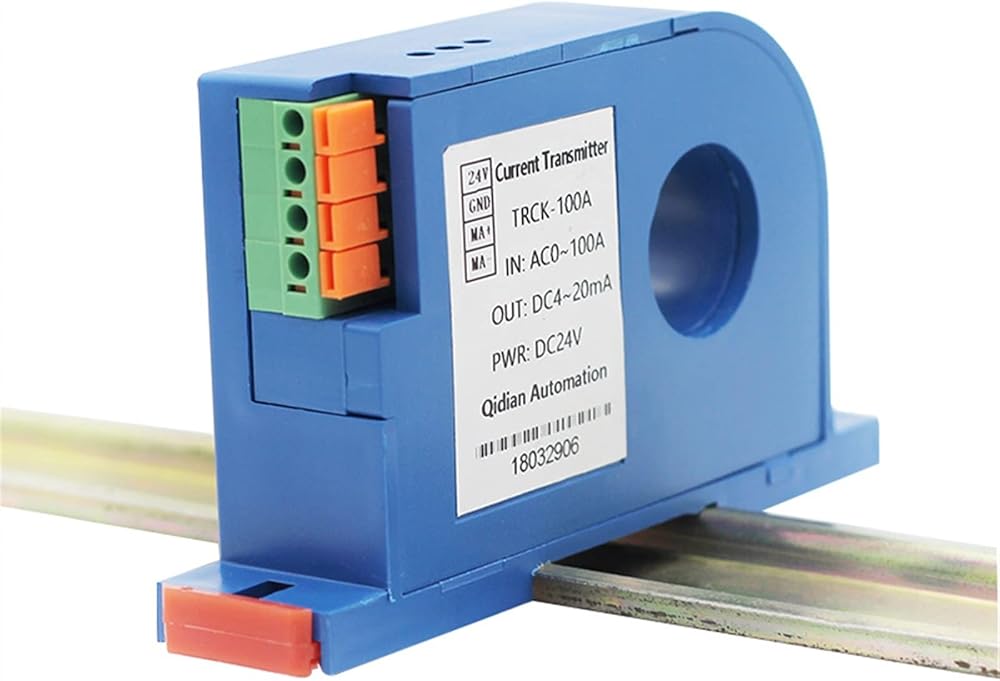

Working principle: closed loop direct measurement.
Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.

Installation：Plane screw fixation

Original side rated current：50A;100A;200A;500A;800A;1000A

Original side measurement range：100A-1200A

Rated output：5V;DC0-20mA;DC4-20mA

Auxiliary power supply：DC12V,DC24V,DC±12V,DC±15V

Load capacity：Voltage output:5mA;Current output:6V;

Linearity：0.50%

Accuracy：1%

Temperature drift：≤500PPM/℃

Band width：DC~20KHz

Consumption of current：≤25mA

Working temperature：-10℃~+70℃

Storage temperature：-25℃~+85℃

Isolation pressure resistance：2.5k/50Hz,1Min

Offset Voltage：≤20mvV

Zero output：≤0.15mA
