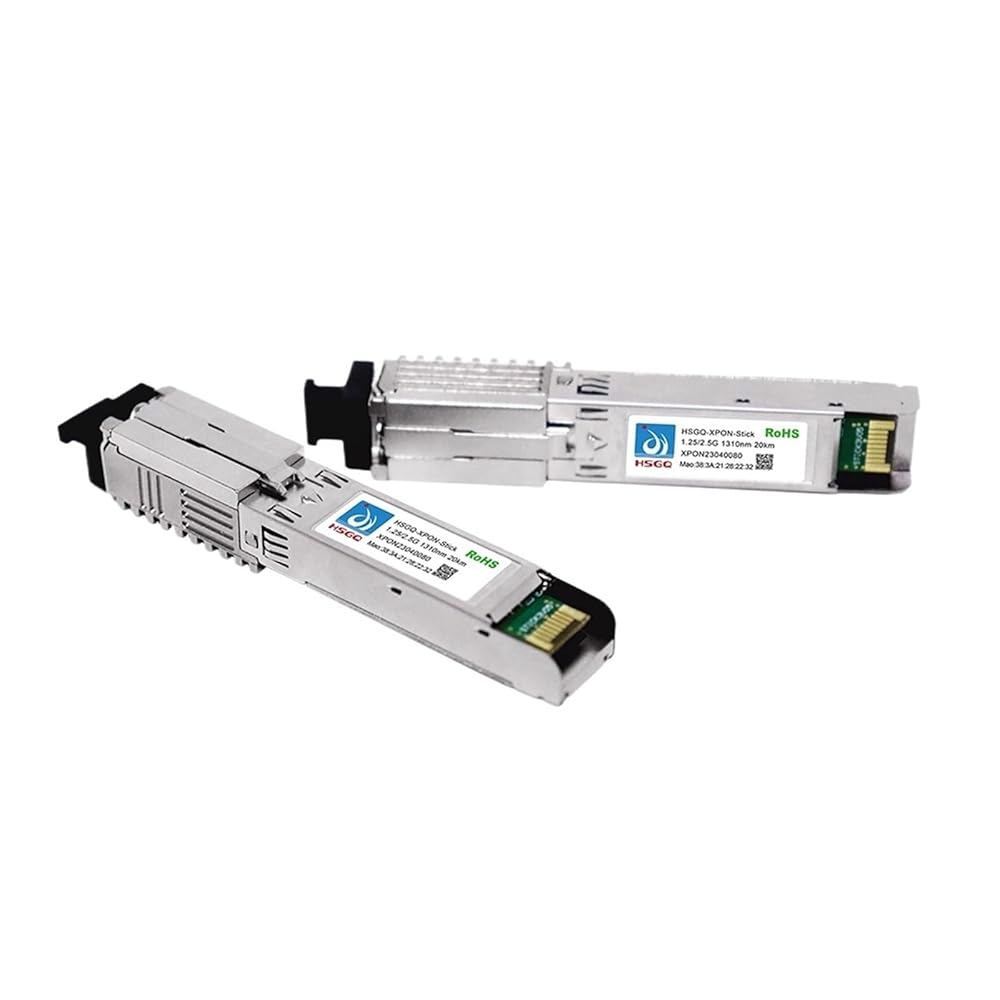

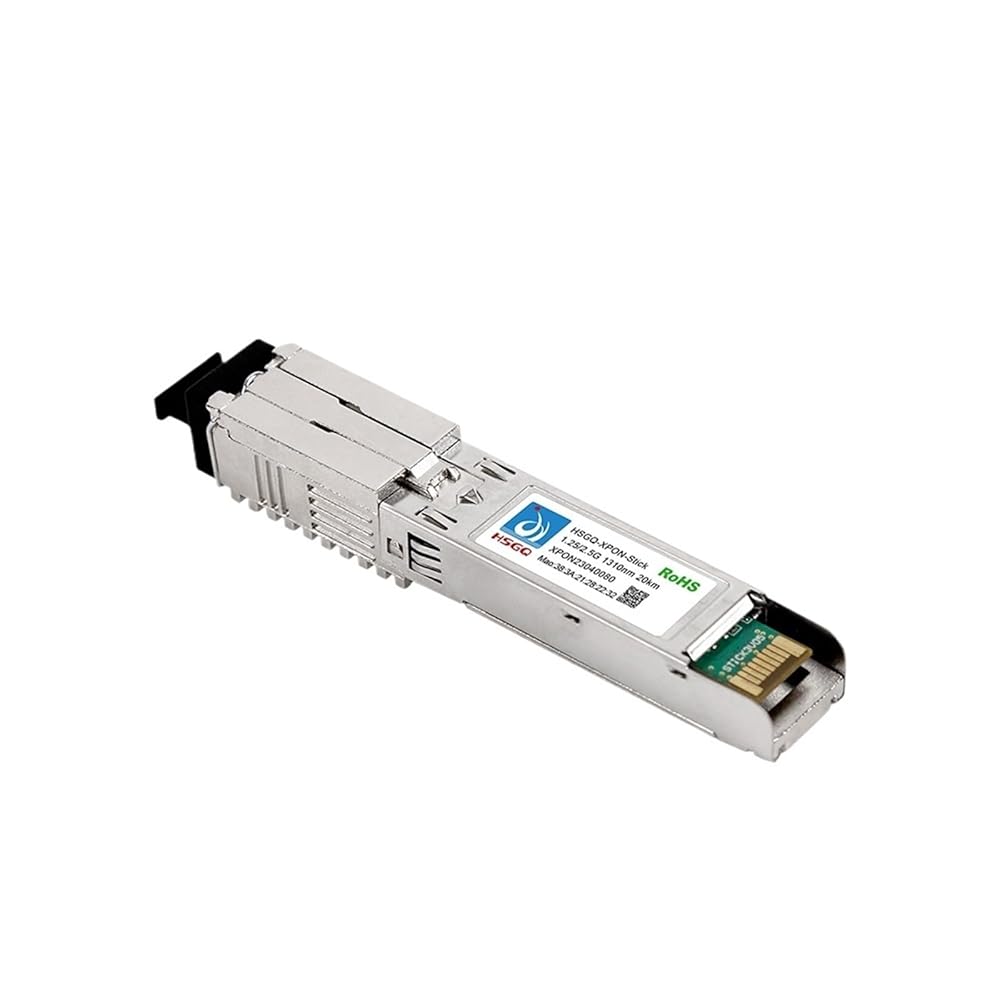

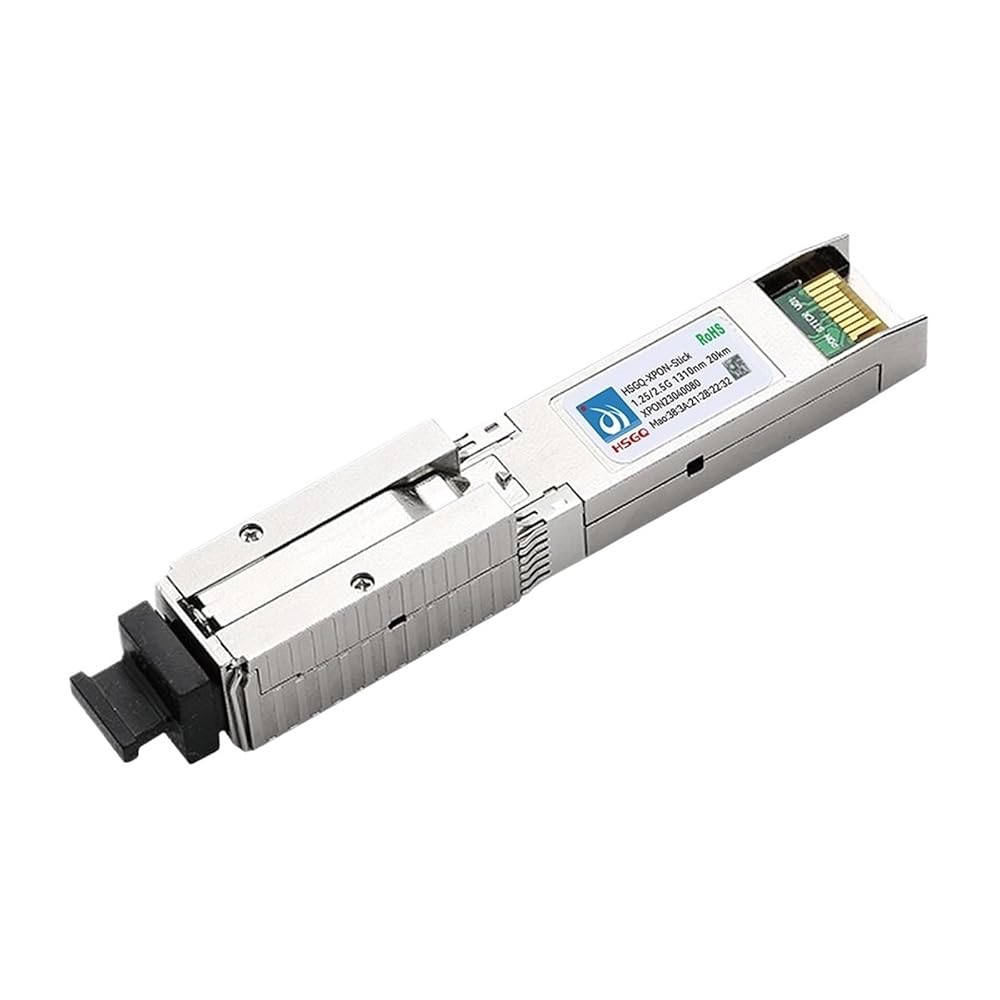

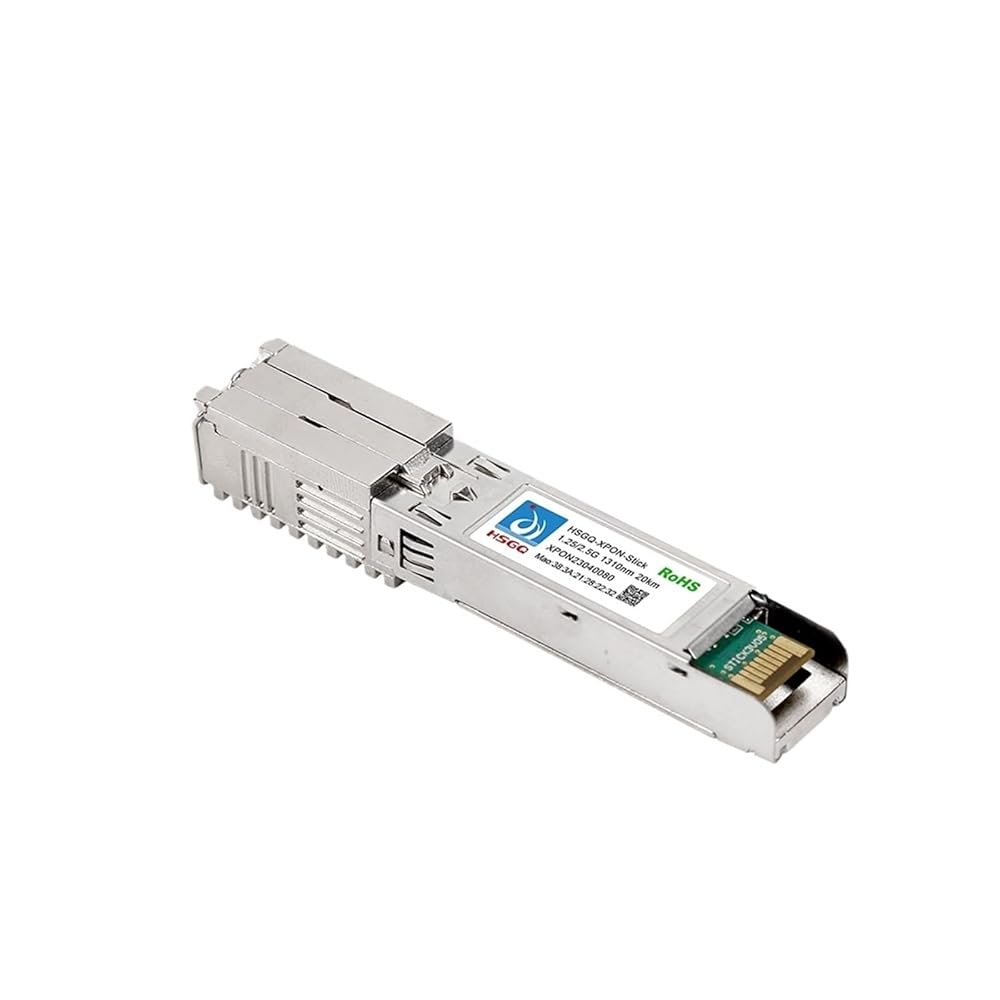

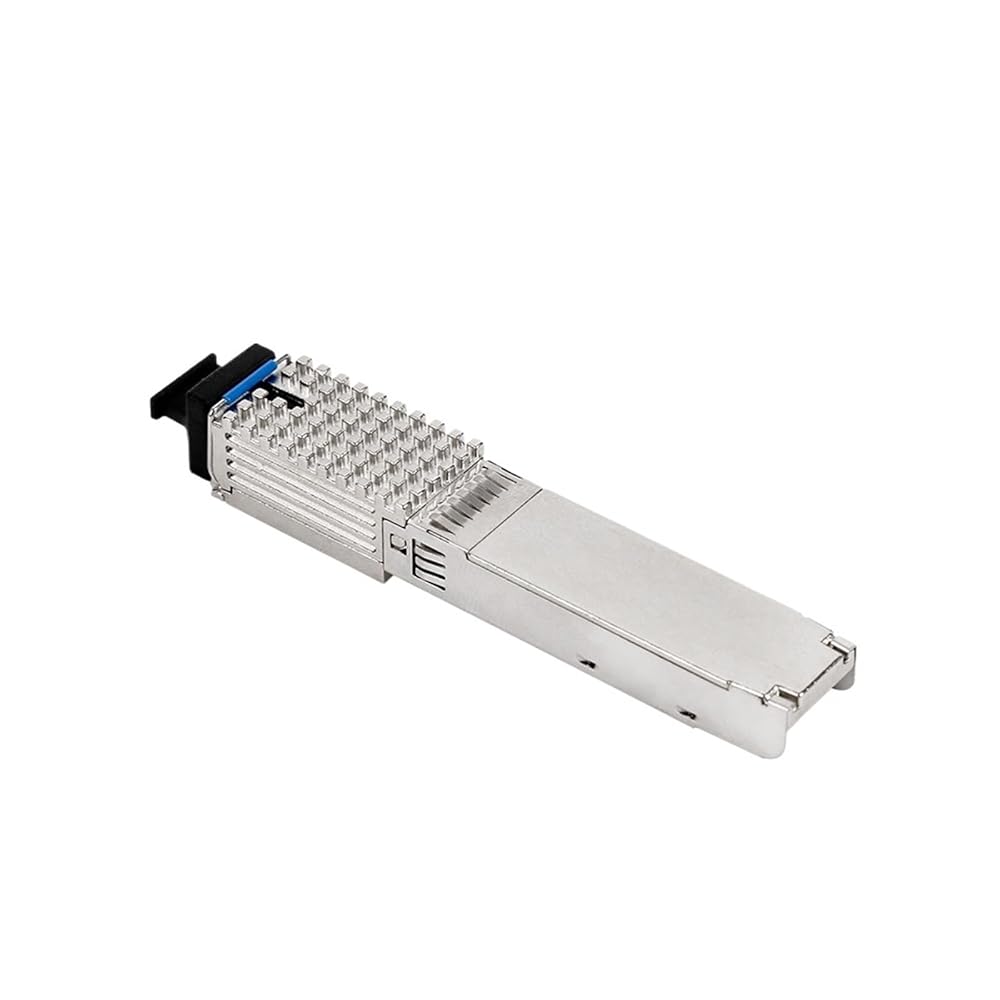

GPON XPON ONU Stick SFP with MAC inside for Xpon OLT
Product Features
Single fiber bi-directional data links asymmetric TX 1244Mbps / RX 2488Mbps GPON ONUapplication with GPON MACfunction. SC/UPC receptacle SFP with GPON ONU MAC inside, "Plug-and-play" via auto-discovery and configuration 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver Single 3.3V power supply Digital diagnostic monitor interface compatible with SFF-8472 SFP MSA compliance Low EMI and excellent ESD protection Class I laser safety standard IEC-60825 compliant RoHS compliance EPON ONU compatible Complies with SFP Multi-Source Agreement (MSA) SFF-8074i Complies with ITUT-T G.984.2, G.984.2 Amendment 1 Complies with ITUT G.988 ONU management and control interface (OMCI) specification
Product Description
Absolute Maximum Ratings
Parameter
Unit
Min
Typical
Max
Power Supply Voltage
V -0.5
3.6
Storage Temperature

-40
85
Operating Case Temperature

-40
85
Operating Relative Humidity
% 5 95
RX Input Average Power
dBm
0 -7
RECOMMENDED OPERATING ENVIRONMENT
Parameters
Symbol
Min.
Typical
Max
Unit
Power Supply Voltage
VCC
3.135
3.3
3.465
V
Power Supply Current
Icc
350
mA
Operating Case
Temperature
TI
-40
25
85

ABSOLUTE MAXIMUM RATING
Parameters
Symbol
Min
Max
Unit
Power Supply Voltage
VCC
0 3.6
V
Storage Temperature
Tc
-40
85

Operating Case Temperature
TI
-40
85

Relative Humidity
RH
5 95
%
RX Input Average Power
Pmax
-7
dB
Company Information
==========
Wireless function : Yes
High-concerned chemical : None
Fiber Type : Single Mode
Connector Type : SC/UPC
Origin : Mainland China
Certification : CE,FCC,RoHS
Model Number : XPON STICK
Type : Fiber Optic Transceivers
Place of Origin : Guangdong, China
Use : FTTH
Warranty Time : 1 year
Network : TCP, POE, 4g
Product name : XPON onu stick pon module
Connector type : SC
wavelength : 1490/1330nm
Data rate : 1.244Gbps
Certification : CE RoHS FCC
Application : FTTH FTTxFTTB Network
Color : Silver
Distance : 20km
