Globe Valves
==========
Structure : Ball
Port Size : DN15(1/2"), DN20(3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2")
Media : Water
Material : Brass
Temperature of Media : 0-95
Power : Electric
Standard or Nonstandard : Standard
Pressure : 1.6Mpa

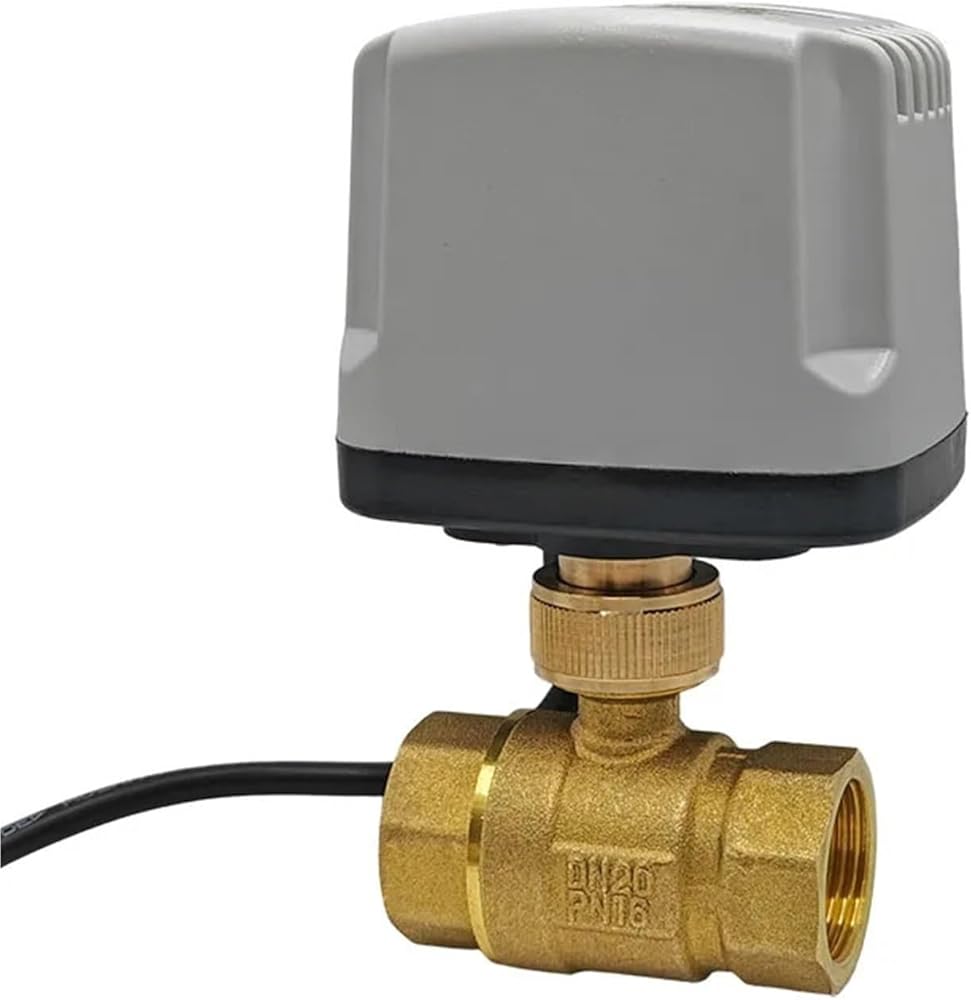

Model Number : Brass Electric Ball Valve
Power Source : AC
Medium : Cold water, Hot water or 50% Glycol solution
Body material : Brass
Wiring mode : 3-Wire two-control, 3-Wire one-control, 2-wire Power-off reset
Structure Forms : Two-port (2 way)
Driving voltage : DC12V, DC24V, AC110V, AC220V
Power consumption : 6 W (only when the valve is opened and closed)
Applicable medium temperature : 0-95
Action time : 5-15s
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
Connection method : Female thread
