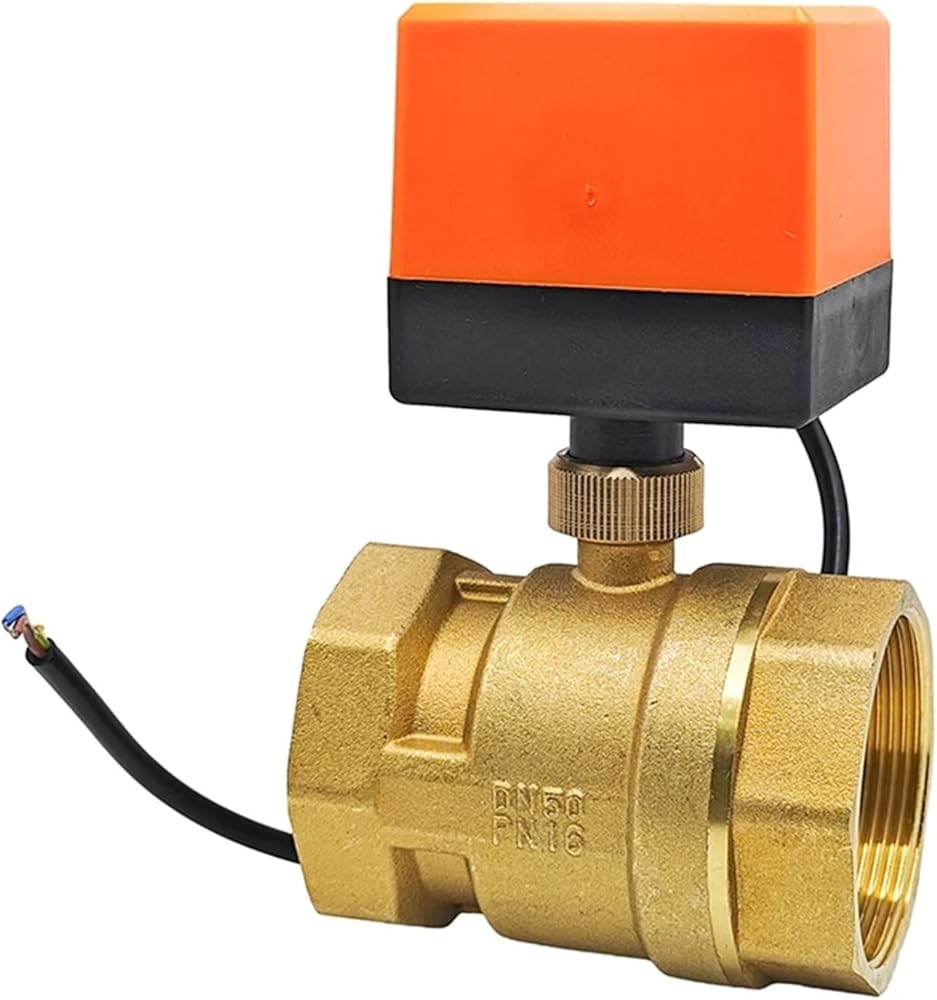

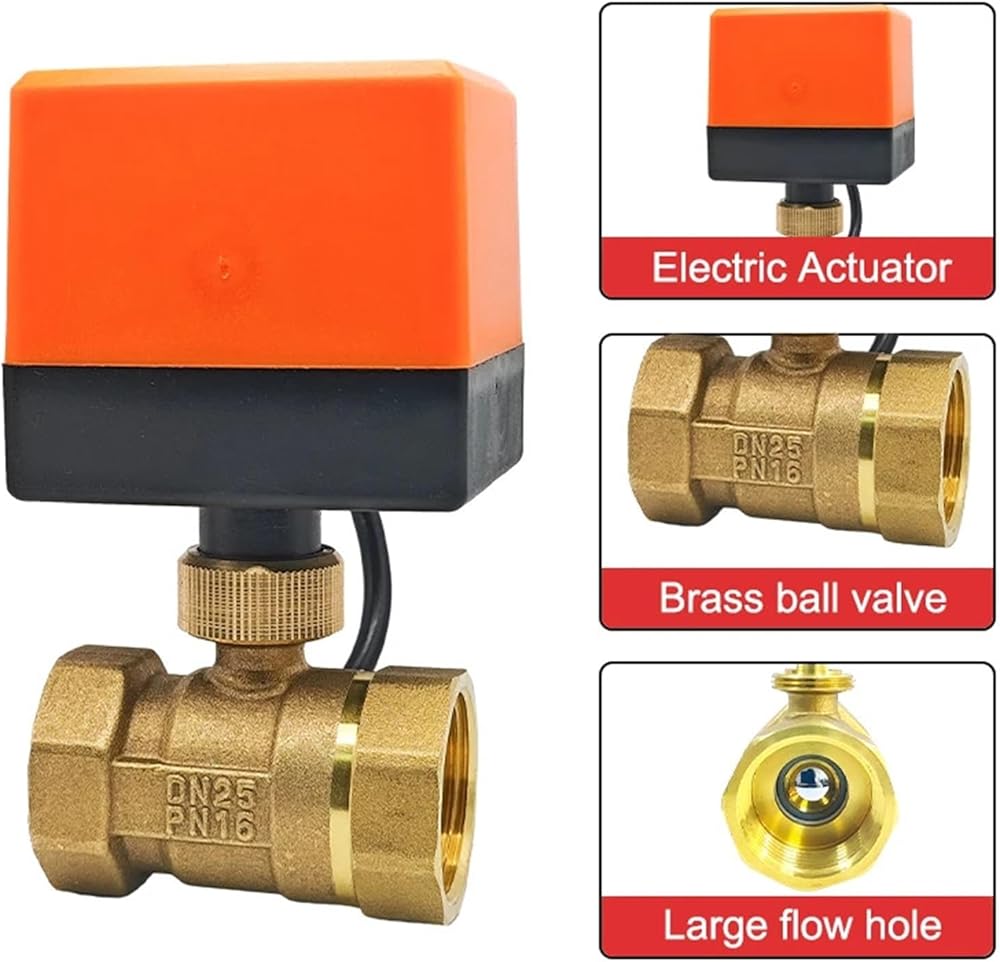

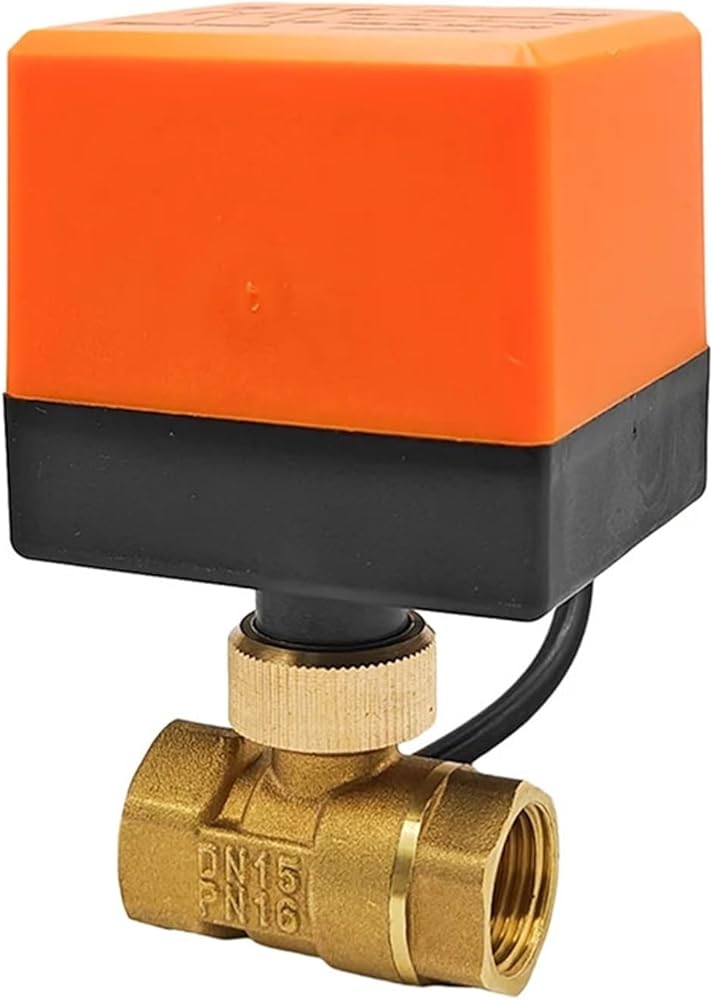

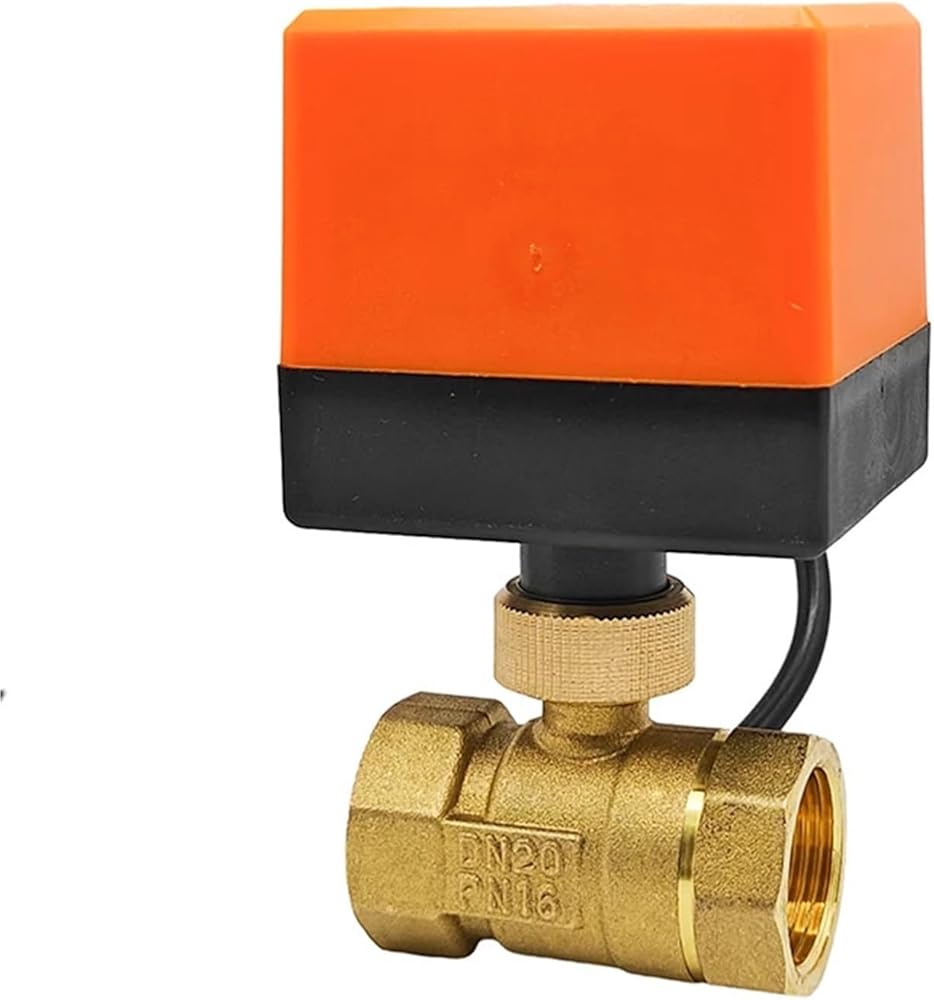

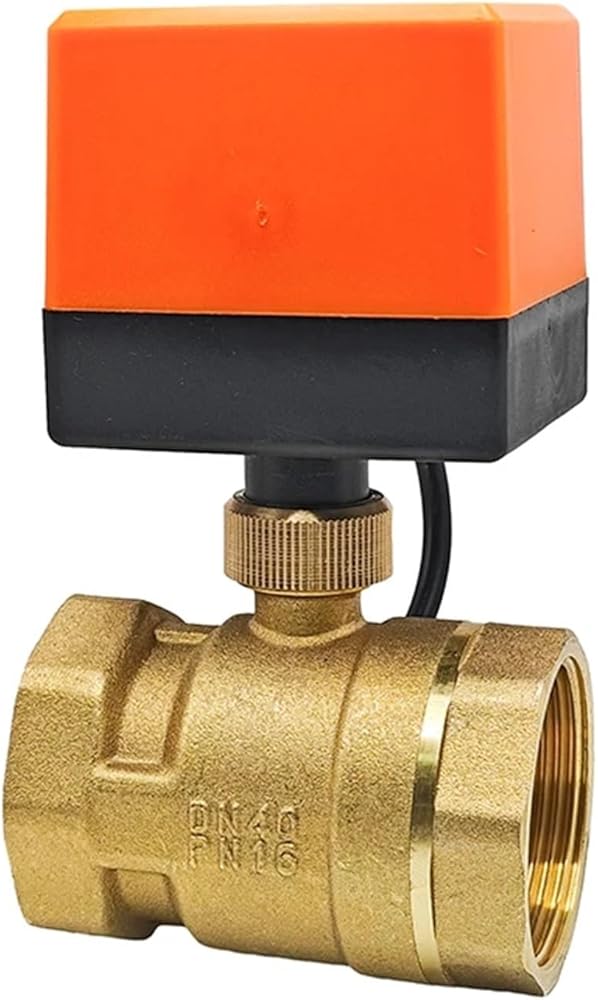

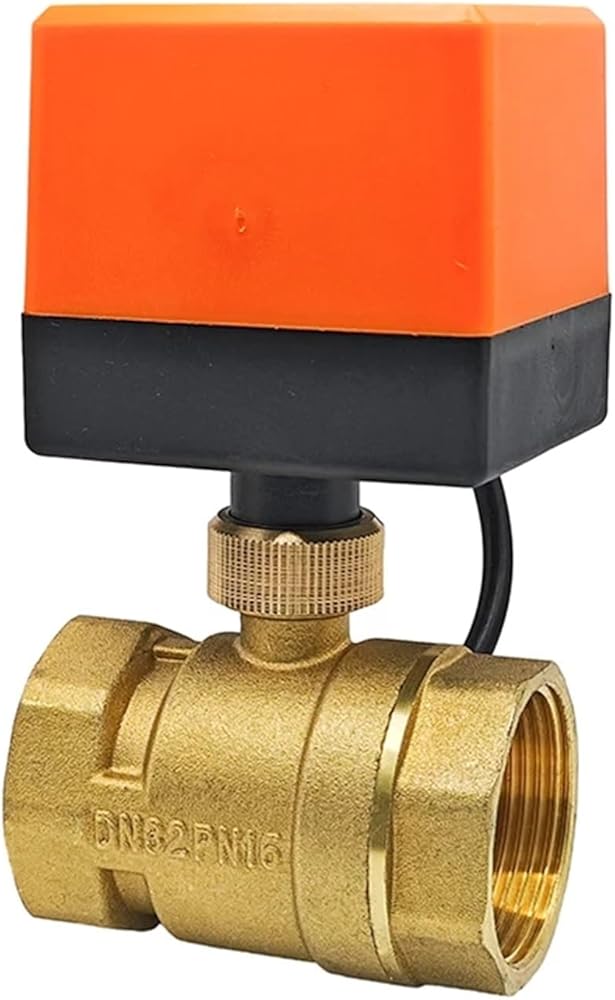

Globe Valves
Actuator Mode : Without Manual And Instruction
Structure : Ball
Port Size : 1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32),1-1/2"(DN40), 2"(DN50)
Media : Water
Material : Brass
Temperature of Media : 0-95
Standard or Nonstandard : Standard
Pressure : 1.6MPa
Model Number : Motorized Two Way Ball Valve
Power Source : AC
Drive voltage : 220VAC 24VAC 24VDC 12VDC
Power : 6VA (only in the process of valve opening and closing)
Applicable medium : cold water, hot water or 50% glycol solution
Control method : three wire two control
Way : two way
Open/Close Time : 15s
Valve body pressure : 1.6MPa
Applicable medium temperature : 0-95°C
Applicable ambient temperature : 0-65°C
Drive torque : 4-8 N.M
Shut-off pressure difference : 0.4Mpa
Lead length : 30 CM
Connection method : Female thread
