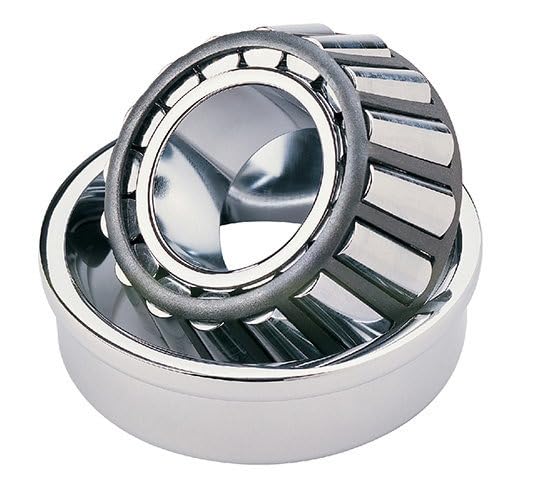

BRAND: NSK ID: 32209 J MADE IN: JAPAN DESCRIPTION: EQUIVALENTS 9 EQUIVALENTS WITH 2,250 PCS IN STOCK 32209-A FAG 32209 TIMKEN 32209M-90KM1 TIMKEN 32209-92KA1 TIMKEN 4T-32209 NTN SPECIFICATIONS BRAND NSK ITEM NUMBER HR32209J NSK ALSO KNOWN AS32209J2/Q EAN 00029176019913 CATEGORY TAPERED ROLLER BEARING SINGLE ROW WEIGHT AND DIMENSIONS INNER (D) MM45 OUTER (D) MM85 WIDTH (B) MM24,75 INNER (D) INCH1.7717 OUTER (D) INCH3.3465 WIDTH (B) INCH0.9744 WEIGHT (KG)0.56 Product Properties Precision Standard Precision Suffix description J Outer Ring Raceway Diameter And Angle Comply With ISO/R355 Product description THE HR32209J NSK IS A SINGLE-ROW TAPERED ROLLER BEARING. THIS BEARING TYPE GETS ITS NAME FROM THE TAPERED ROLLERS BETWEEN THE INNER AND OUTER RINGS. THE RACEWAYS ARE CONICAL. THIS DESIGN ALLOWS THESE VERSATILE BEARINGS TO ACCOMMODATE COMBINED LOADS. THEY SUPPORT HIGH RADIAL AND AXIAL LOADS (IN ONE DIRECTION). THE GREATER THE CONTACT ANGLE, THE GREATER THE AXIAL LOAD CAPACITY. THE HR32209J NSK IS EASY TO (DIS)ASSEMBLE AS IT IS A COMBINATION OF A CUP AND A CONE. THE CONE UNIT CONSISTS OF AN INNER RING WITH CAGE AND ROLLER SET. THE CUP IS THE OUTER RING. SINGLE-ROW TAPERED ROLLER BEARINGS HAVE AN OPEN DESIGN. BECAUSE OF THE INTERNAL CONSTRUCTION, THEY MUST BE MOUNTED IN MIRROR-IMAGE ARRANGEMENT TOGETHER WITH A SECOND TAPERED ROLLER BEARING. PAIRED BEARING SETS CAN ALSO BE APPLIED IN X, O, OR TANDEM ARRANGEMENTS. PACKAGE INCLUDES: ONE (1) NSK 32209 J
