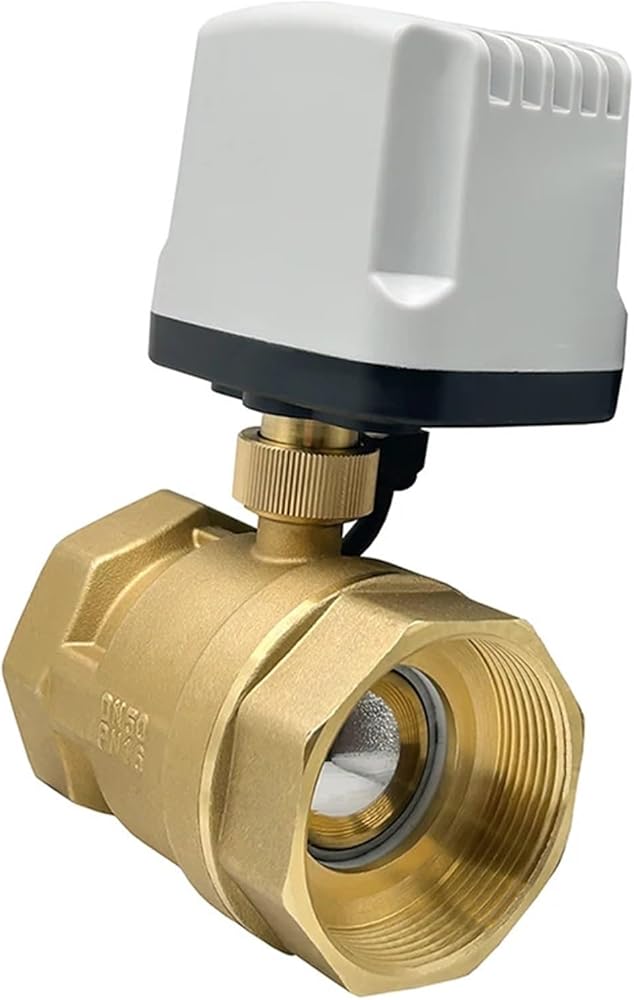

Globe Valves
Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V
Structure Forms: Two Ways,
Operation Mode: Three Wire Two Ways Control/Three-wire One Control mode/2-wire, (power-off reset mode)Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque:220V 8 N.M, DC12/24V 6 N.M
==========
NC or NO : Normally Closed
Actuator Mode : With Manual And Instruction
Structure : Ball
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Standard or Nonstandard : Standard
Pressure : Low Pressure
Power Source : AC
