Power Supplies
Tips:
To ensure the lifetime of the power supply,pls don't use full load when you use it.
We recommend the use power should be 80% of the rated power.
For example: the label of the power supply is 500W,use power should be:500W*80%=400W

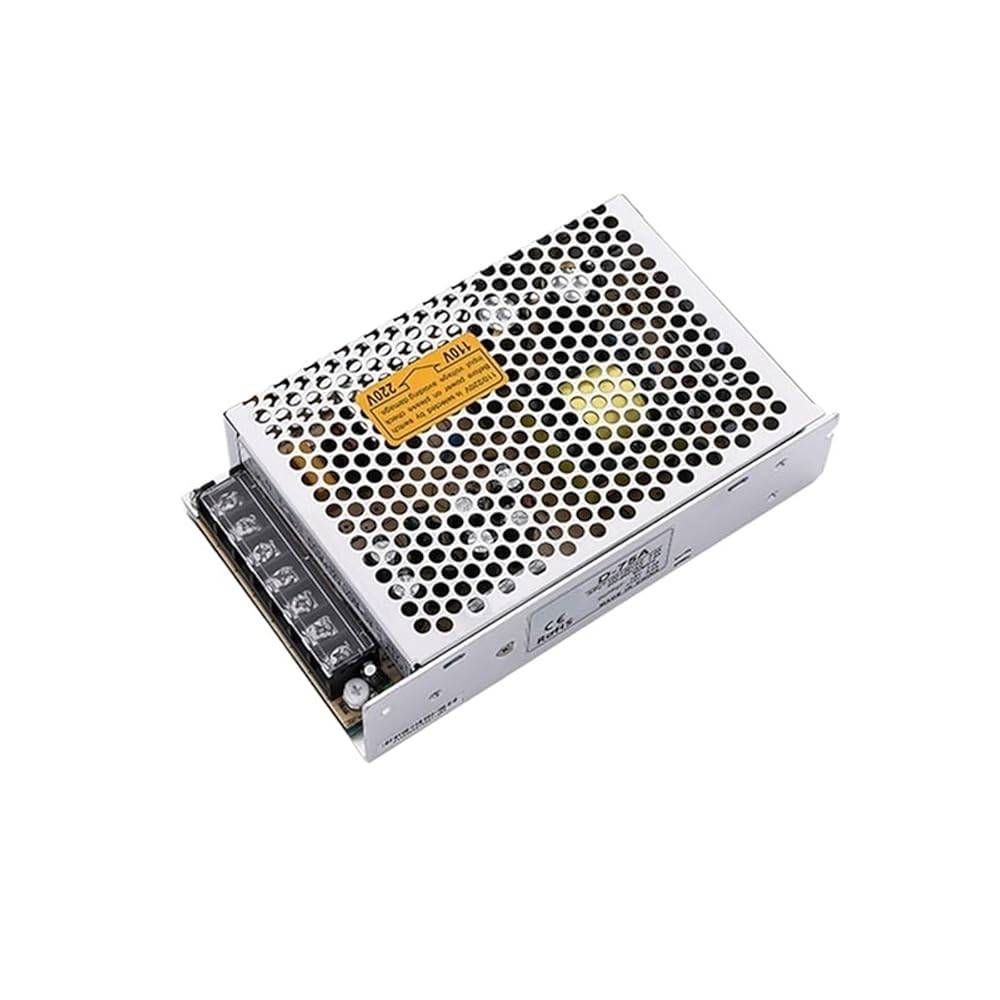

75 Watt Two Groups Multi Output Power Supply AC 110V 220V To 5V 12V 24V for Led Strip D-75
==========
Type : Power Supply
High-concerned chemical : None
Output Power : 51 - 100W
is_customized : No
Model Number : D-75
Output Frequency : 50/60HZ
Output Type : DUAL
Origin :
AC input voltage range : 90~264VAC 47~63 Hz 127~373VDC
Over load protection : 110-150% hiccup mode,auto-recovery
Over-voltage protection : 115-135% hiccup mode,auto-recovery
Withstand voltage : I/P-O/P:1.5KvAC 1min;I/P-FG:1.5KvAC 1min;O/P-FG:0.5KvAC 1min
Working temperature : -10°C~+60°C,20%~90%RH
product size : 159*97*38mm(L*W*H)
Weight : 0.65kg
