Yaregelun No soldering: quickly connect to the development board (such as for , for , ESP32) through the JST cable, saving 90% of wiring time.
Dual interface design:

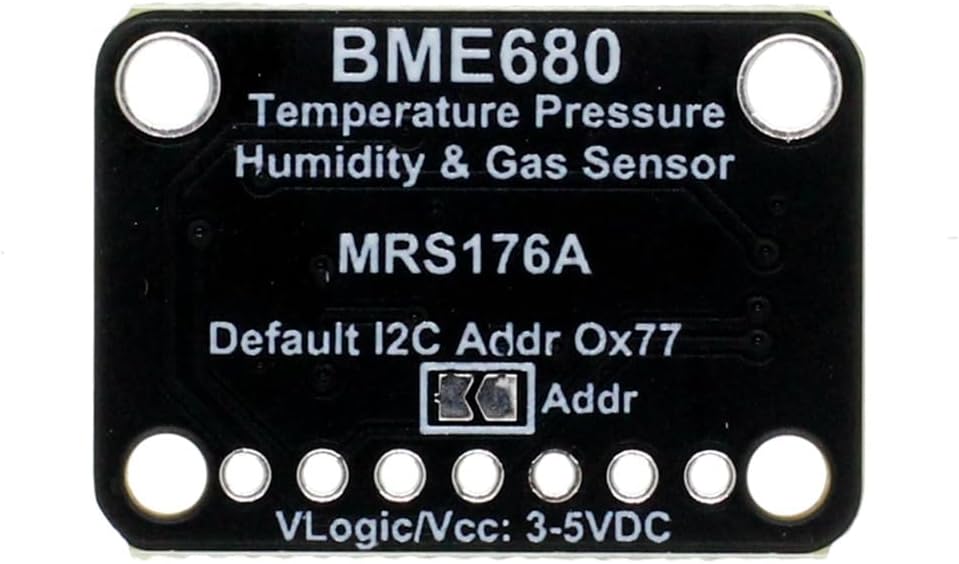

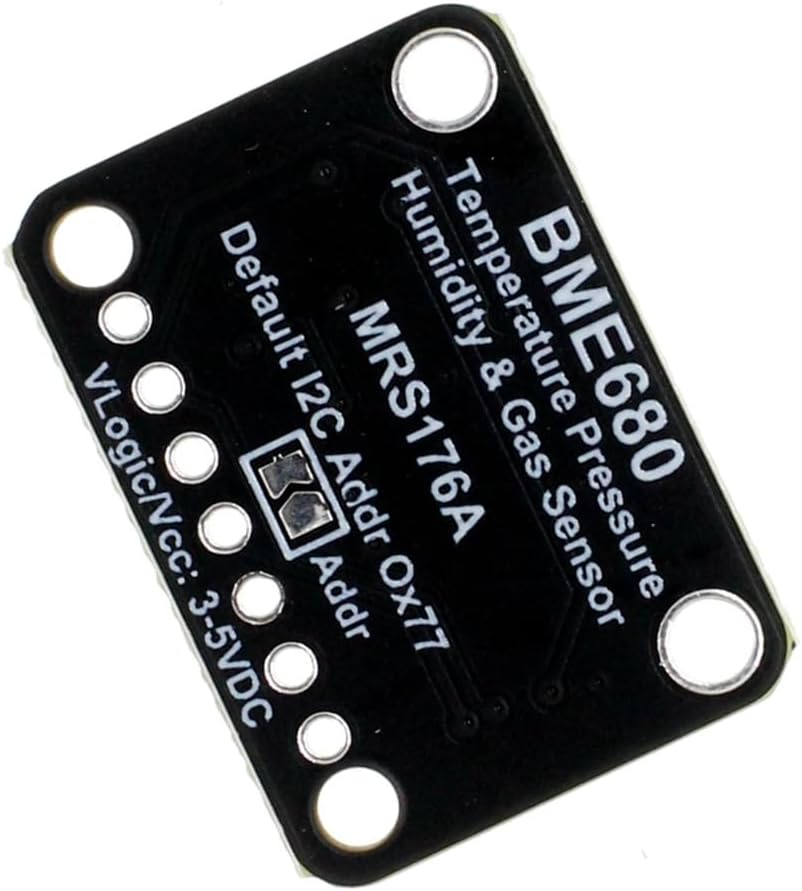

4-pin Qwiic interface (default I²C address 0x77)
Compatible with traditional pin pads (support I²C/SPI switching)
Technical
Parameter Value
Operating voltage 3.3V (compatible with 5V logic level)
Communication protocol I²C (default) / SPI (jumper required)
Power consumption Standby 0.15μA, sampling 2.1mA
Resolution Temperature 0.01°C, air pressure 0.18Pa
Response time Humidity ≤1s, gas ≤10s
Application scenarios
Indoor air quality monitoring (formaldehyde/TVOC trend analysis)
IoT weather station (temperature and humidity/air pressure/altitude)
Smart home/agricultural greenhouse environment control
Maker education/electronic experiments (for , MicroPython projects)
Mainstream library compatibility: for : BME680 Library,Python: bme680 (for ),Sample code: Provide a quick guide to complete data reading in 5 minutes.
Color: As Shown
Material: PCB

Package Contents:

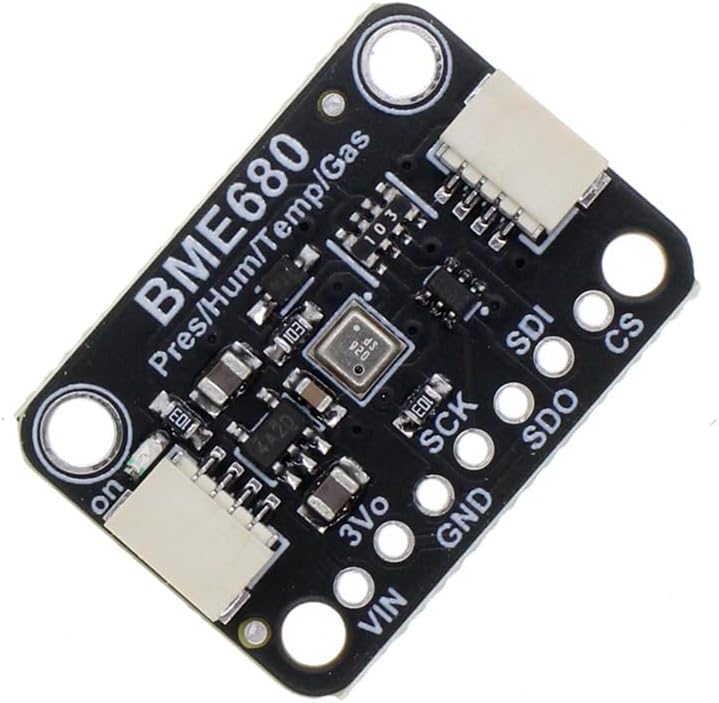

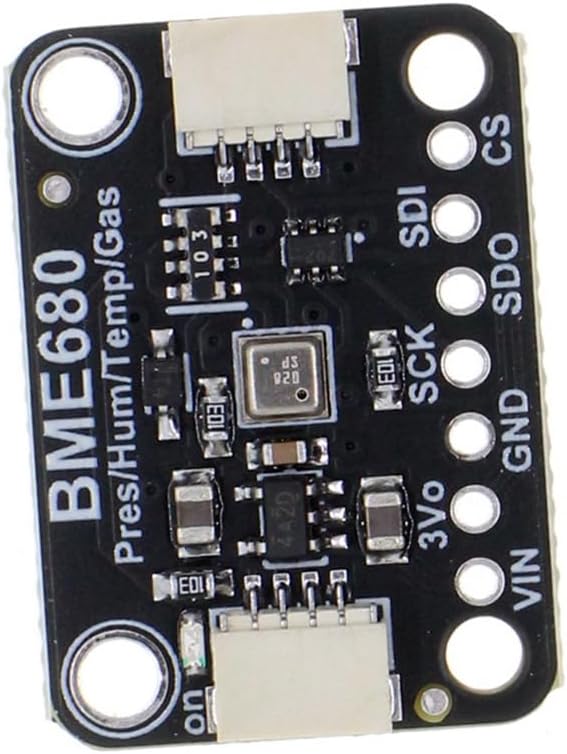

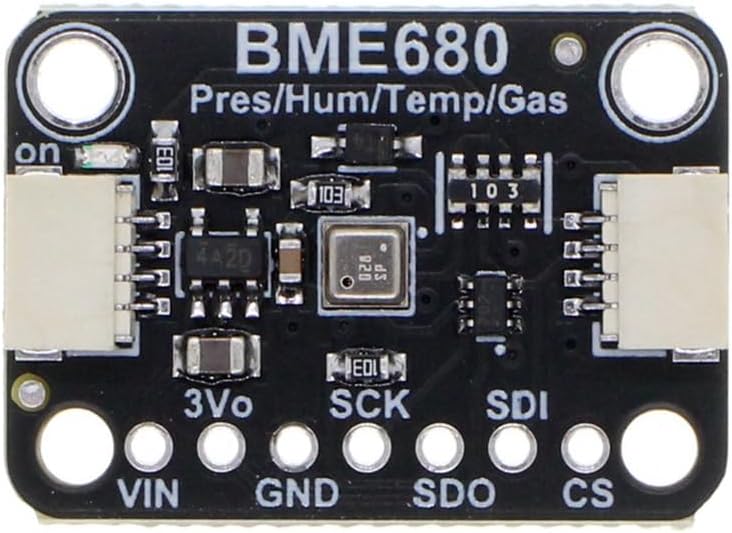

1 * BME680 Environmental Sensor Module

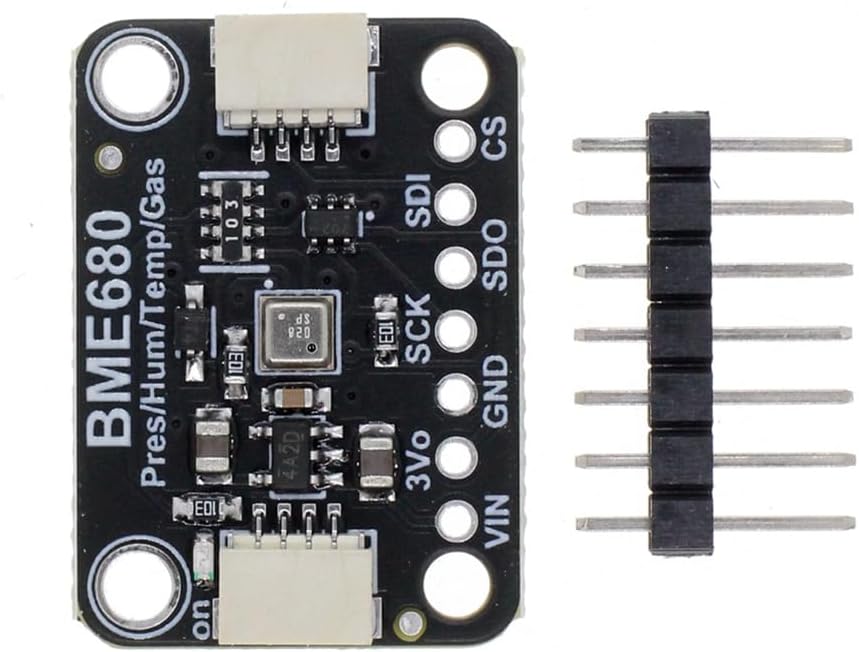

1 * pin header (need to be soldered)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
