Globe Valves
Product information
Medium: Cold water, Hot water or 50% Glycol solution
Body material: Brass

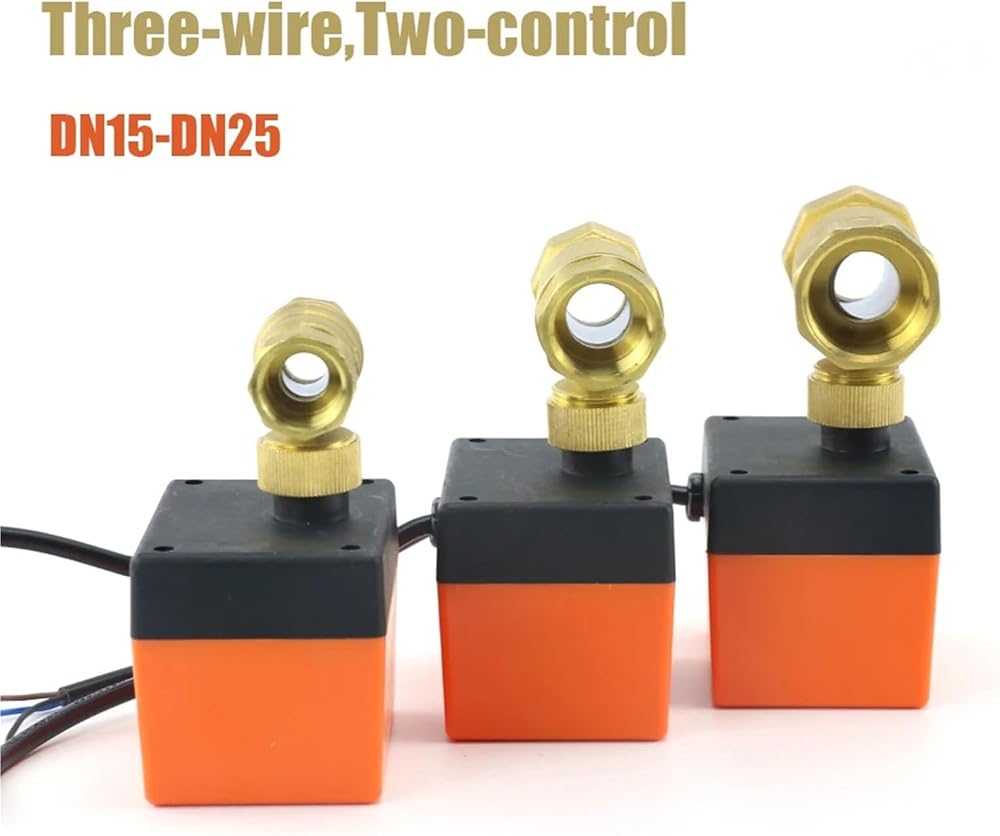

Wiring mode: Three-Wire two-control
Structure Forms: Two Ways
Driving voltage: 220VAC, DC12-24V
Power consumption: 6 W (only when the valve is opened and closed)
Applicable medium temperature: 0-95
Action time: 5-15 S
Nominal Pressure: 1.6 Mpa
Connection method: G Female thread
Notice:
2. Package list: Valve*1
==========
NC or NO : Normally Closed
Actuator Mode : With Manual And Instruction
Structure : Ball

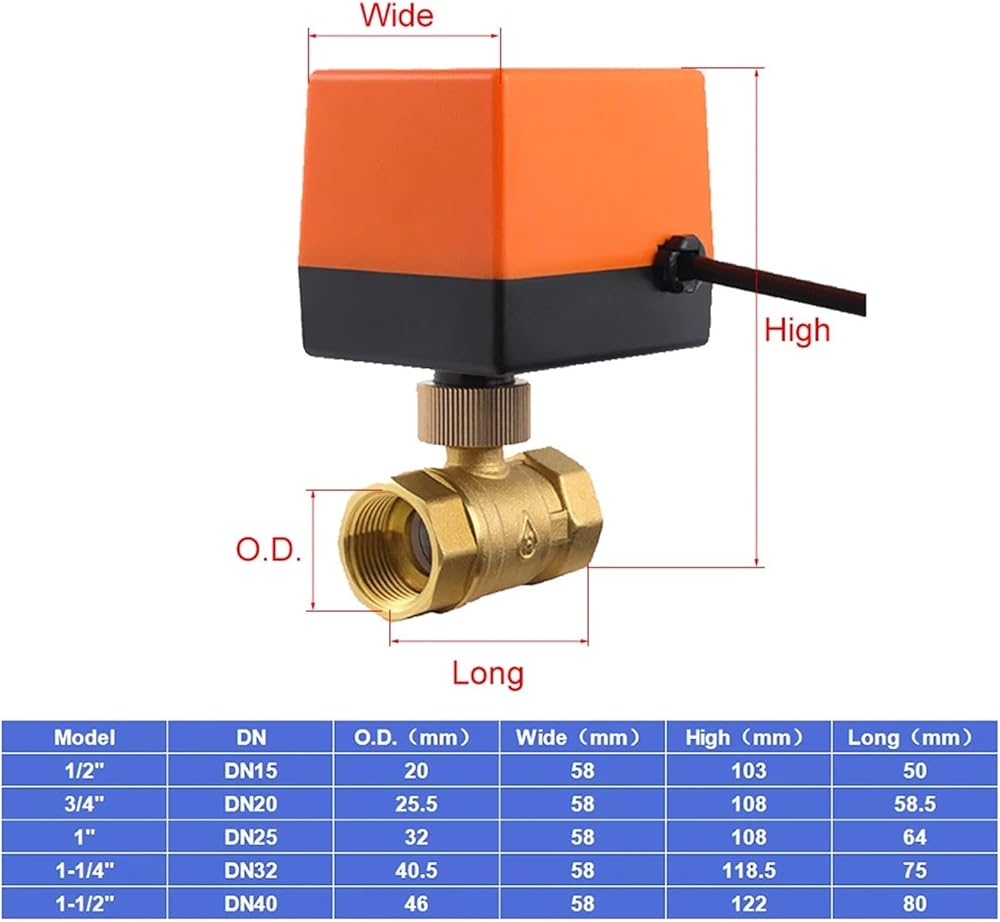

Port Size : DM15,DN20,DN25
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Power : Solenoid
Standard or Nonstandard : Standard
Pressure : Low Pressure
Model Number : 2-way Motorized Ball Valve
Power Source : AC,DC
TYPE 1 : Motorized Ball Valve
TYPE 2 : Electric Ball Valve
TYPE 3 : 2-way Solenoid valve
