PC Software Control: The power supplys can be monitored and set on the PC software(only support WIN7 or above), with a friendly interface and powerful functions.

Multiple protections: The output over-voltage (OVP)/over-current (OCP) value can be set when the output voltage/current exceeds the protections value, the power supply will automatically stop the output to avert damage to the device.

Specification:
Material: ABS
Input voltage ranges: 7-70.00V
Output voltage ranges: 0-60.00V
Output current ranges: 0-24.00A
Output power range: 0-1440W
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Output current setting measurement resolution: 0.01A
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracy between setting and measurement: ±(0.3%+3 digits)
Output current accuracy between setting and measurement: ±(0.5%+5 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Automatic cut off current value when recharging: Set by yourself(higher than 100mA)
Output typical: 100mV@12A,150mV@24A VPP
Working temperature ranges: -10~40
External sensors Temperature detection ranges: -10~100/0~200
External sensors Temperature detection accuracy: ±3/±6
Constant voltage mode response time: 2ms(0.1A-5A load)
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement ranges: 0-9999.99Ah
Energy measurement ranges: 0-9999.99Wh
Constant voltage mode response time: ±2%
Maximum output voltage: (input voltage÷1.1)-1
Cooling fan starts condition: Output current>8A or System temperature>45
Cooling fan shut down condition when working: Output current Over temperature protections: System temperature >80
Screen brightness setting: 0-5(6 level in total)

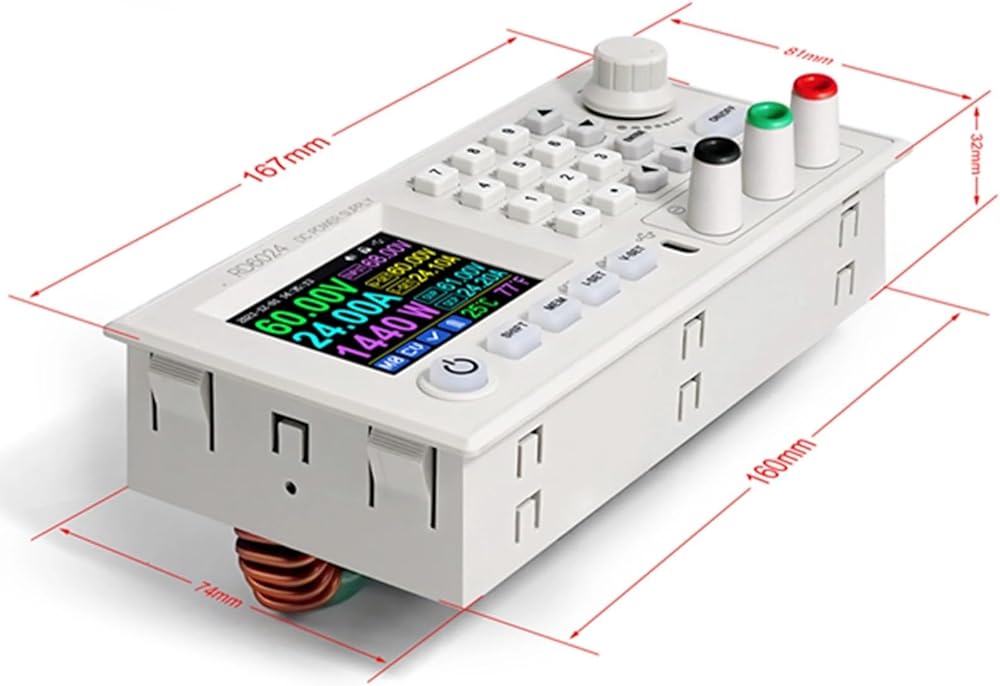

Package size: 240 * 110 * 90mm / 9.4 * 4.3 * 3.5in
Package weight: 722g / 1.6lb
