Bearings
Miniature Bearing Types & Features
Miniature and instrument ball bearings can be divided into two basic types deep groove and angular contact The first (deep groove) can also be classified as "Open", "Shielded", or "Sealed" depending on the existence and type of seal or shield. Deep groove ball bearings have two inherent advantages;
they can sustain some axial load in either direction as well as radial loads, and the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration. Several different cage designs are available with different characteristics and the choice depends upon the individual application.

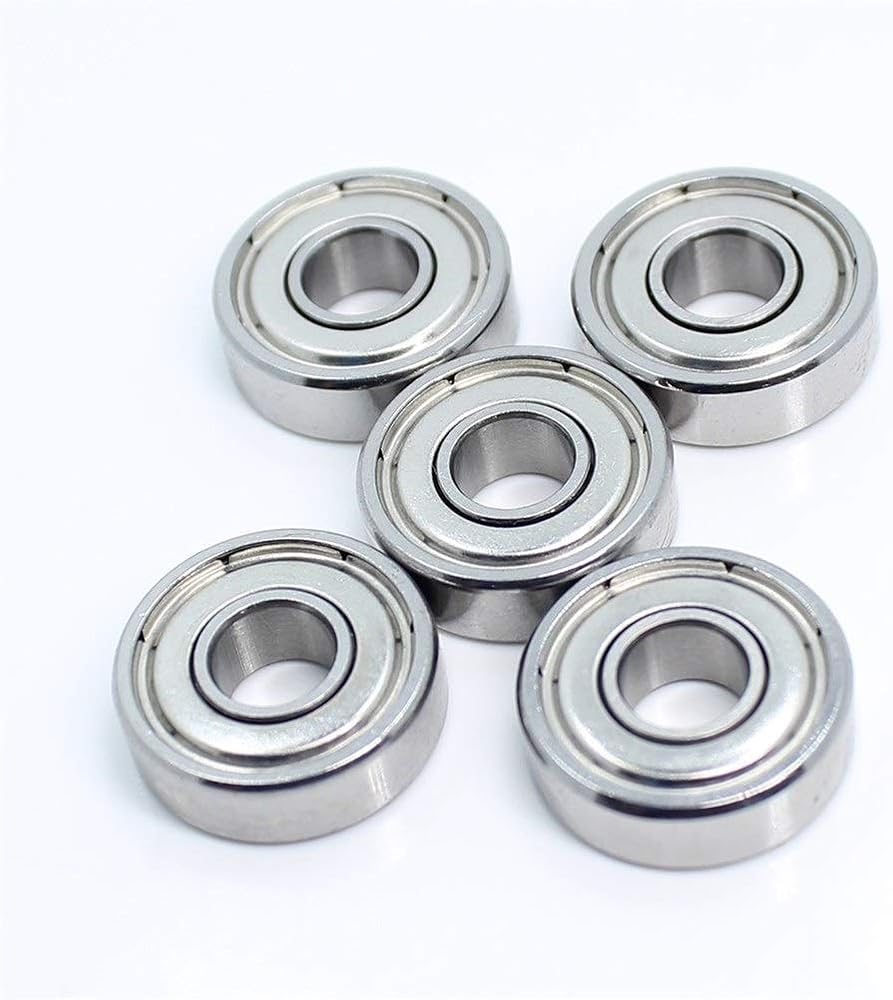

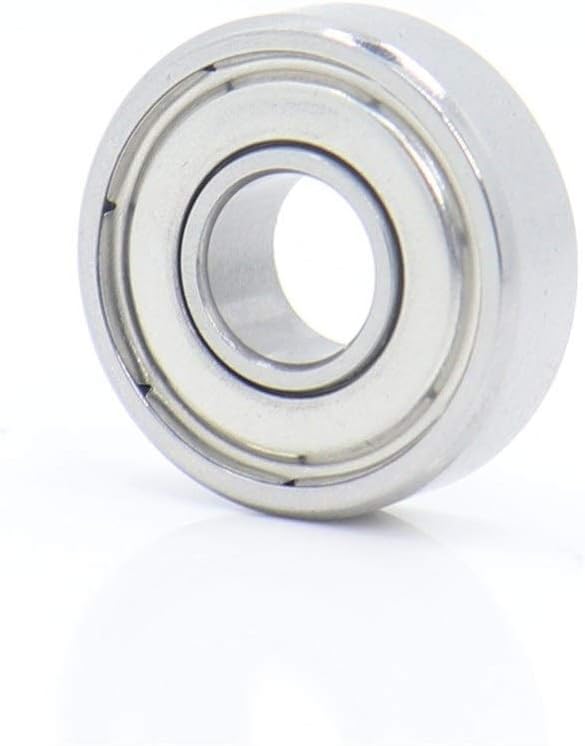

Model Number: MR616Z
Material: Bearing Steel
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Shielded
Part Number: MR616zz
For Shaft Diameter: 6mm

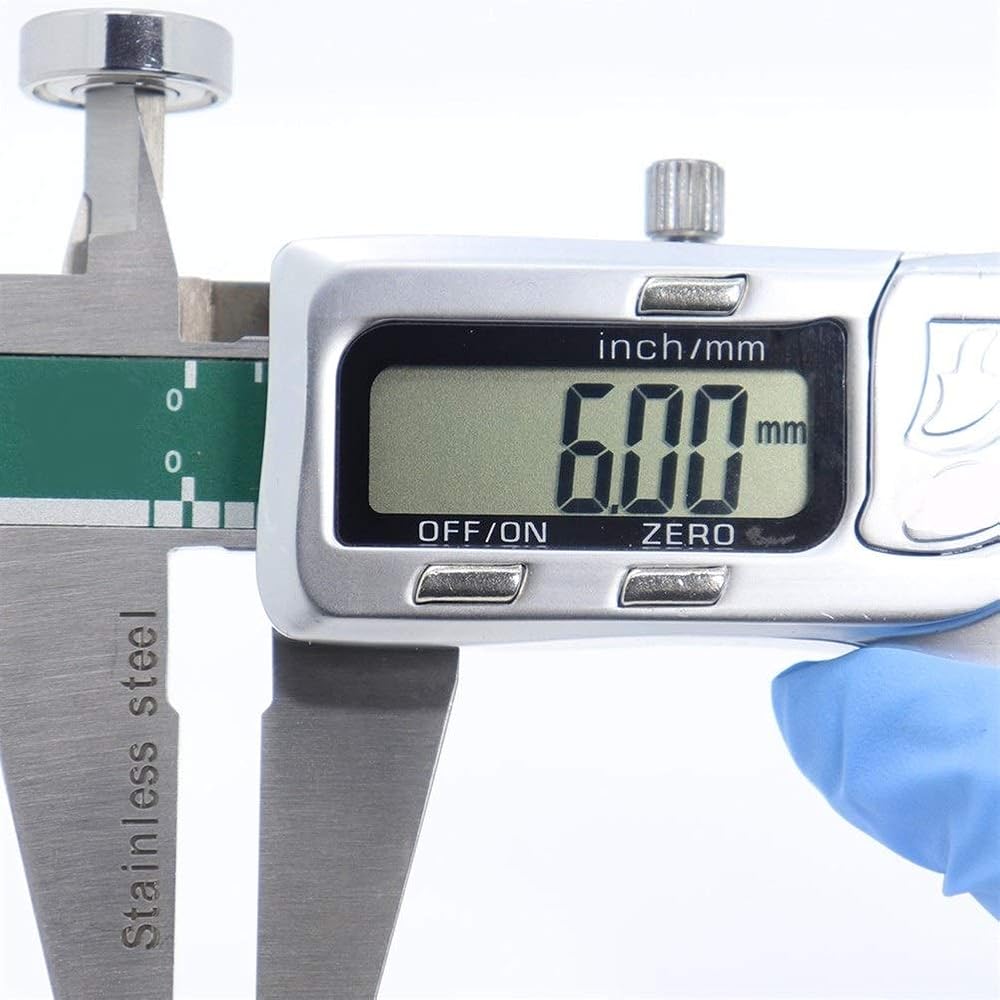

Bore Dia (d): 6 mm
Bore Dia Tolerance: -0.008mm to 0
For Housing ID: 16mm

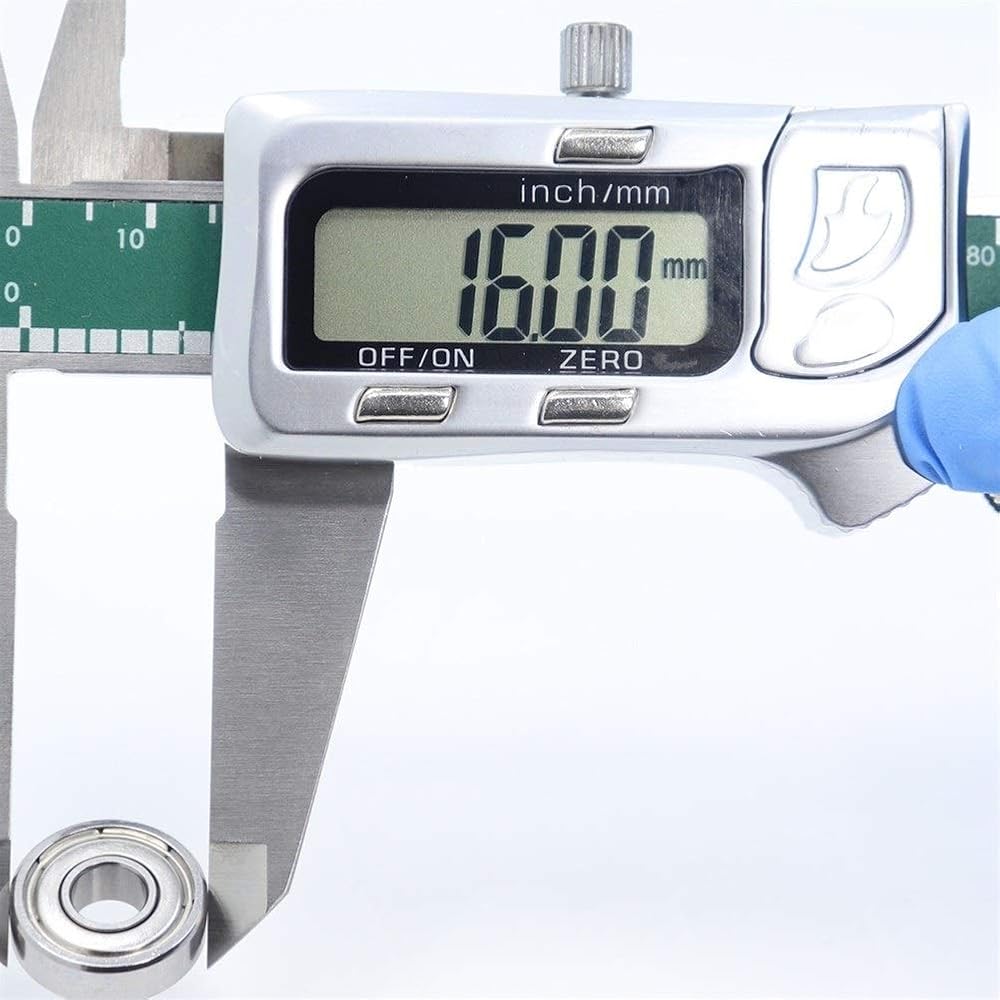

Outer Dia (D): 16 mm
Outer Dia Tolerance: -0.008mm to 0

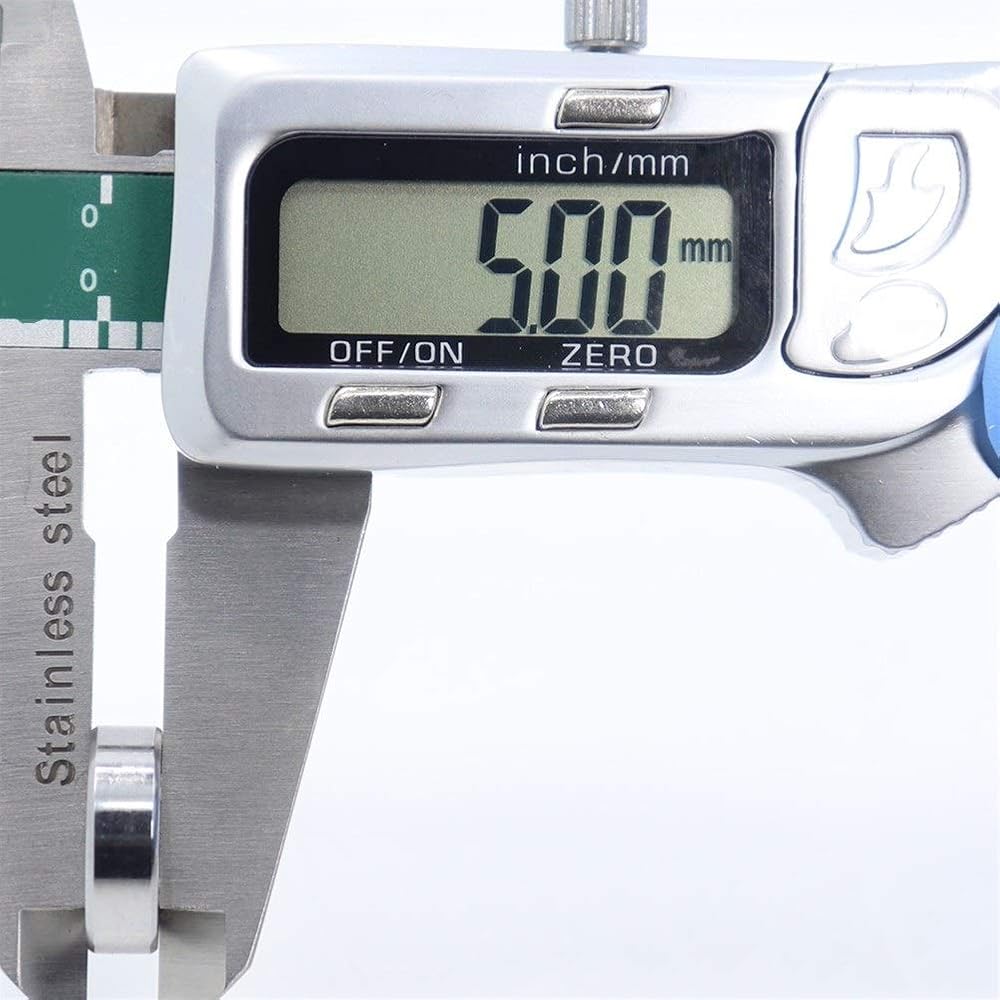

Width (B): 5mm
Width Tolerance: -0.12mm to 0
Ring Material: 52100 Chrome steel
Ball Material: 52100 Chrome steel
Cage Material: 300 Series Stainless Steel
Shield Material: 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons): 1120
Static Load Rating (Cor) (Newtons): 395
Max Speed (Grease) (X1000 RPM): 22
Max Speed (Oil) (X1000 RPM): 28
Lubrication: Grease
Shaft Mount Type: Press Fit
Temperature Range: -20 to 120
ABEC Rating: ABEC-3
Radial Clearance Trade No.: C0
Radial Clearance: 0.002mm to 0.013mm

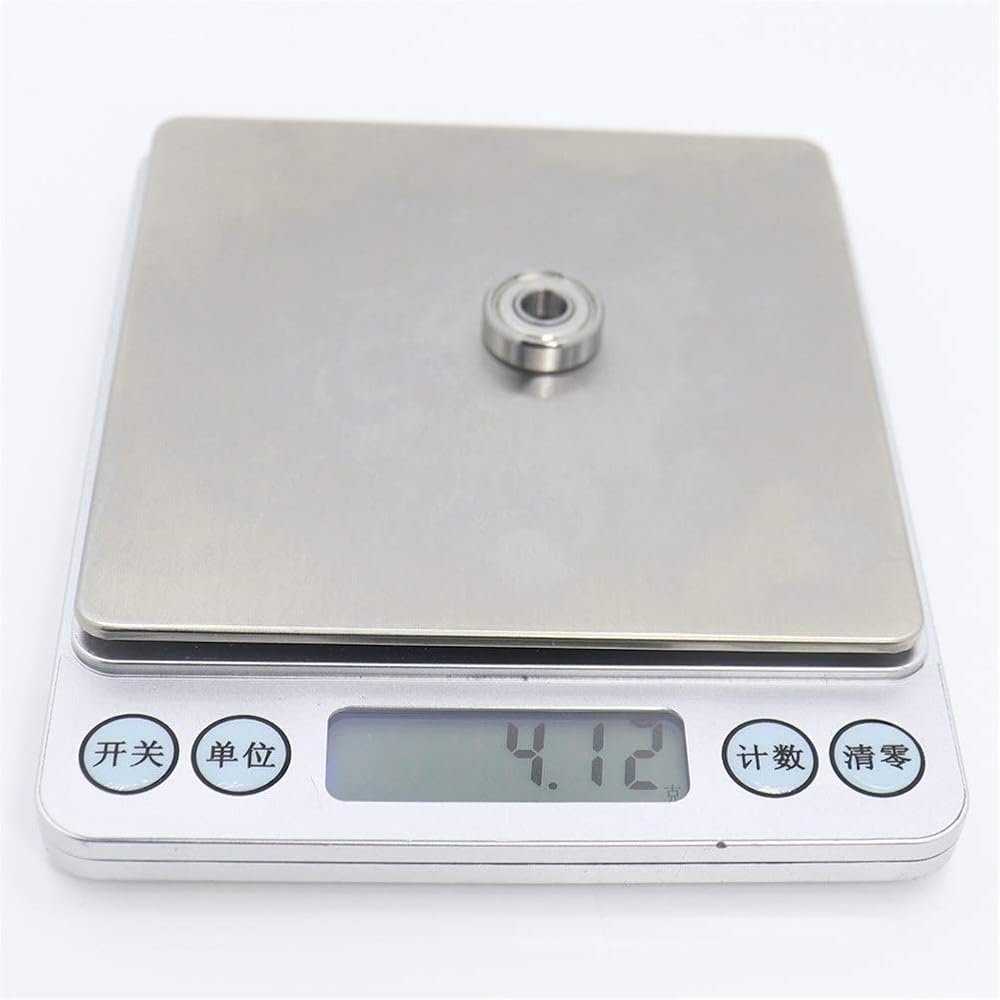

Weight (grams): 4.39
ISO Standard: 492
Widely used in household appliances, garden machinery, outdoor vehicles, industrial production, etc. Suitable for skateboards, longboards, inline skates, scooters, robots, ship rudder axles, etc.
Features: small friction, fast speed,
