Package includes:

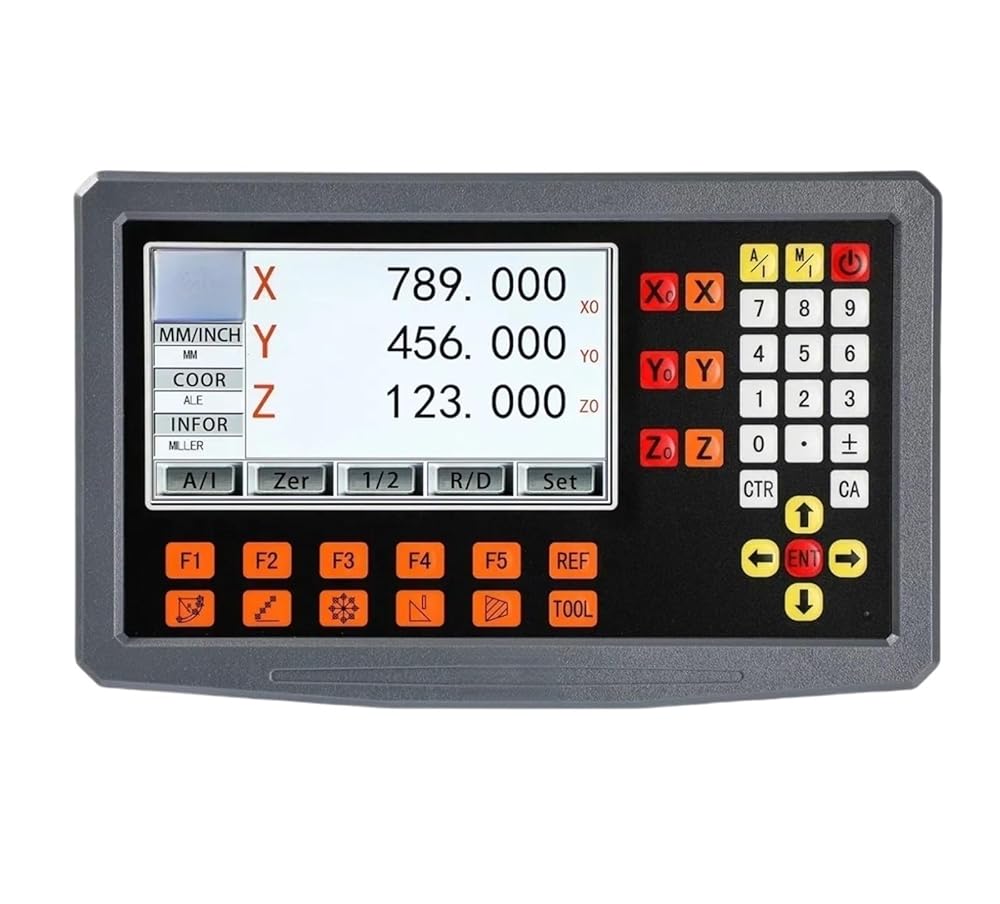

Only 3 Axis LCD DRO
1 pieceSDS2-3VA 3 axis display(with user manual, mounting arm, screw bag)
5um DRO kit1
1 pieceSDS2-3VA 3 axis display(with user manual, mounting arm, screw bag)
3 pieces(KA35+KA35+KA35) 0.005mm linear scales (with covers, mounting bracket, screw bag)
5um DRO kit2
1 pieceSDS2-3VA 3 axis display(with user manual, mounting arm, screw bag)
2 pieces(KA35+KA35) 0.005mm linear scales (with covers, mounting bracket, screw bag)
How to select scales length?
For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.
Scale length means scales working travel length.
After making order, please leave a message to seller with you needed scales travel length.
5um DRO kit1 :If there is no message left, we will deliver the goods according to the travel lengths of 200mm and 300mm and 800mm.
5um DRO kit2 :If there is no message left, we will deliver the goods according to the travel lengths of 250mm and 700mm.
Linear scale parameter
Model: KA35
Available measurement: 100mm to 1000mm
Total length: measurement +140mm
Dimensions Cross section dimensions: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3 meters
DRO parameter
Voltage Range: AC 100V~240V/50HZ~60HZ
Acceptable Signal: TTL square wave
Acceptable resolution: 50um ,10um ,5um ,2um ,1um , 0.5um ,0.1um
Basic Functions
"mm/inch" Conversion Display
200 Points Auxiliary Zero Position Function
Mid-split Function
Segmented Error Compensation
Linear Error Compensation
Power Interruption Memory
Sleep Switch
Mathematics calculation
Smooth R
Simple R
Hole Drilling Along An Oblique Line
The Function For 200 Point
PCD Circle Equally Dividing Holes
Angular Surface Processing
The Progressive Progressing
The Function Calculator Function
N3 Function
Scale fufures
Certification : CE
Origin : Mainland China
Item Name : 3 Axis DRO kit
Resolution : 5um
DRO Input Voltage : AC100V-240V 50/60HZ
Signal : TTL
Scale Cable : 3 Meters
Scale Input : 5VDC
Scale Travel Length : 100-1000mm Available
Application : Mill, Lathe, Boring, Grinder, Wire cutting etc.
