مميزات خاصة

Compatible with X1/P1 series AMS multi-color feeding material system, one AMS Hub can connect up to 4 AMS device to a printer

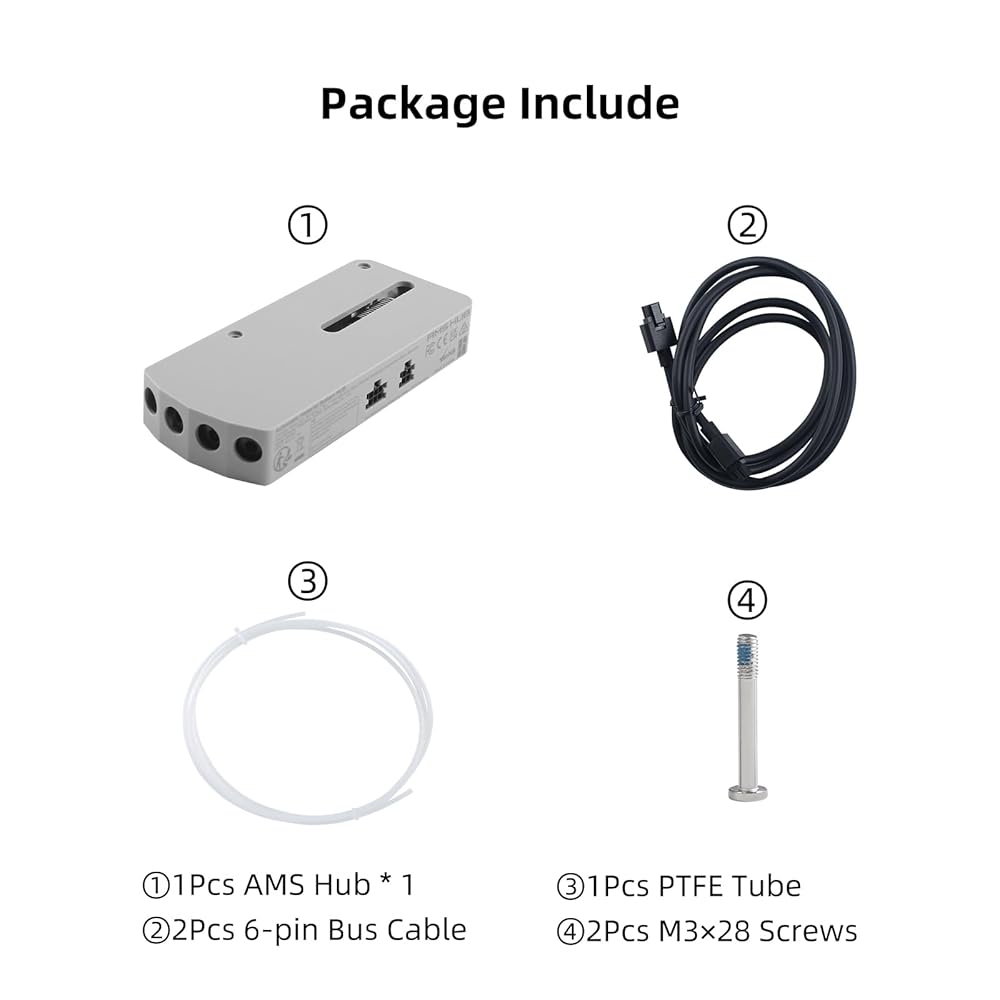

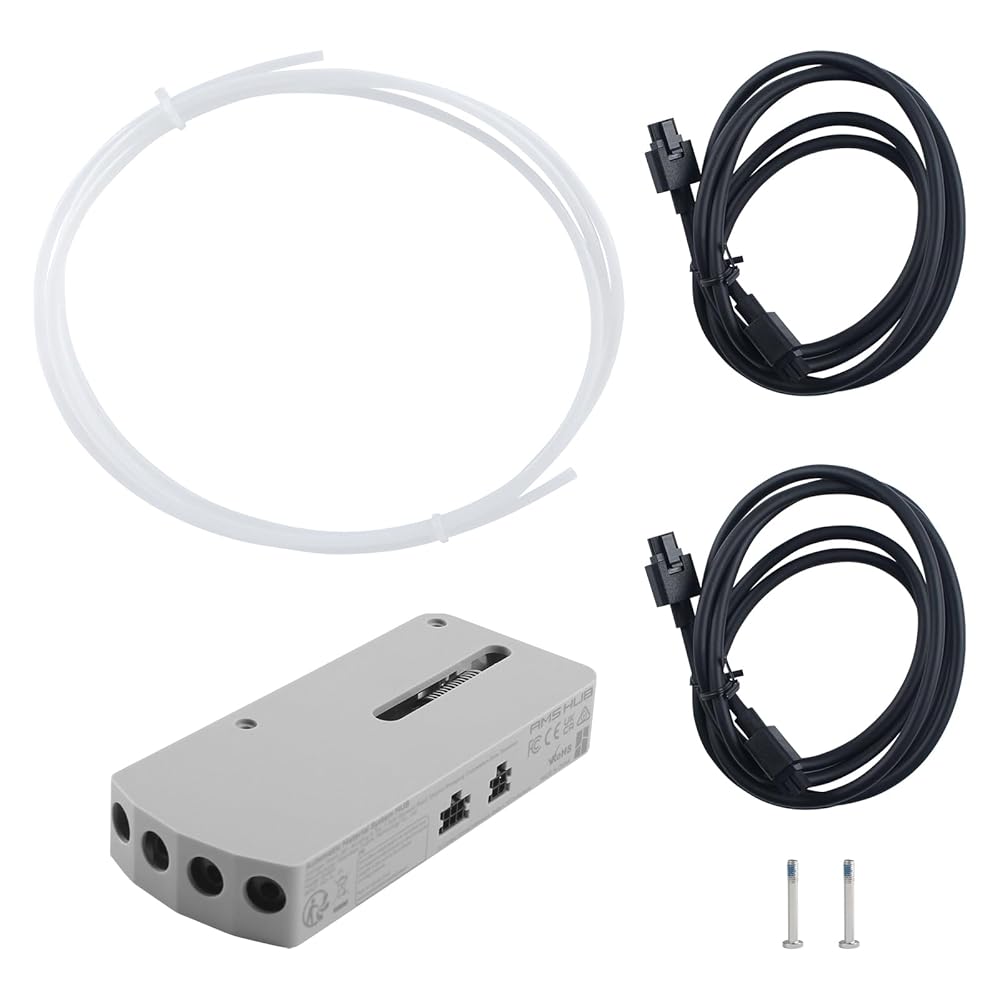

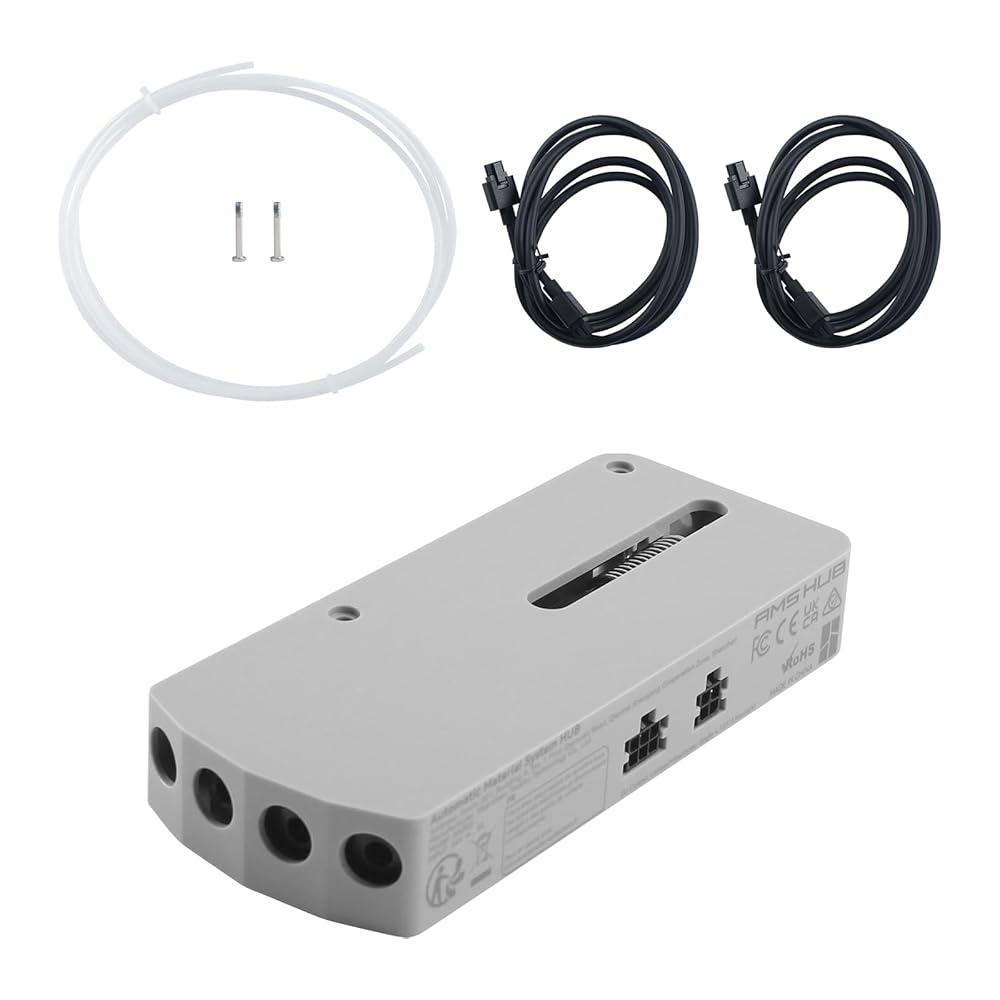

Package Includes: AMS Hub * 1, 6-pin Bus Cable * 2, PTFE Tube * 1, M3×28 Screw * 2

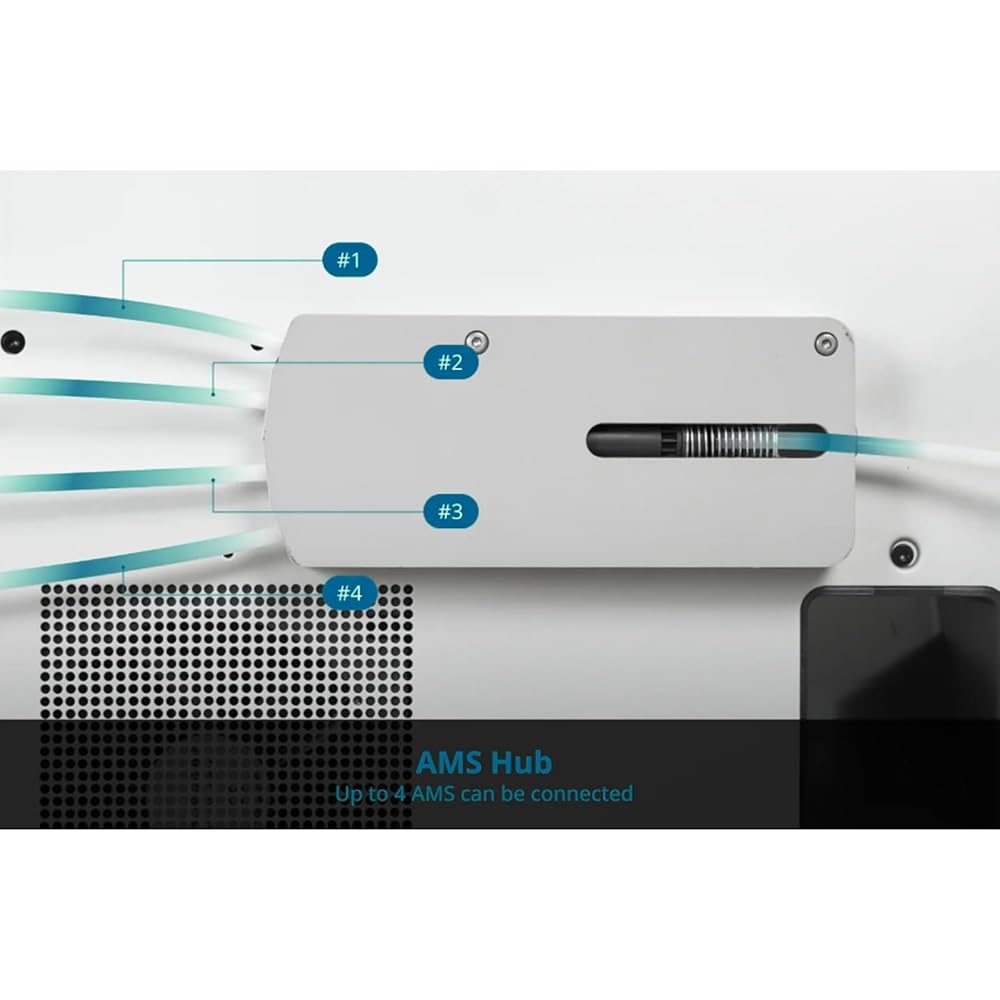

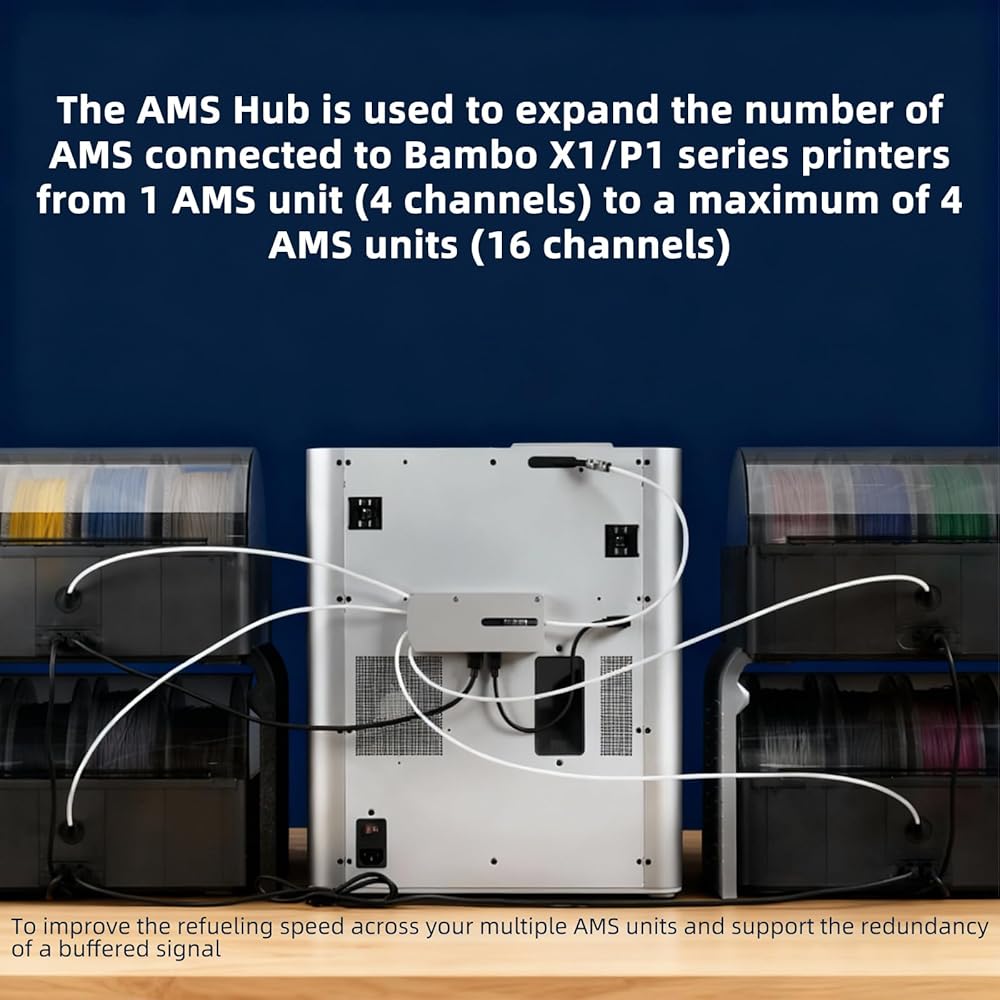

The AMS Hub is used to expand the number of AMS connected to Bambo X1/P1 series printers from 1 AMS unit (4 channels) to a maximum of 4 AMS units (16 channels) to improve the refueling speed across your multiple AMS units and support the redundancy of a buffered signal
You will need a Bus cable (4pin) to connect the AMS Hub to the printer. If you already have a feeding buffer installed, remove and replace it with an AMS hub, mount it on the back of the printer, and connect it to the printer using the matching 4pin cable, connect the first AMS hub to the printer using the 6pin cable, and then connect the remaining AMS hubs in series using the 6pin cable
Easy to install and use. Need to depend on the location of the AMS and the printer, you need to choose the appropriate length of ptfe tube to connect the AMS and the Hub, the tube should avoid bending and twisting to reduce the resistance of the feed filament. Learn more about the Connect AMS Hub and multi-AMS on Wiki

وصف

Please note that this kit is not AMS 2Pro upgrade kit 2, it lacks the filament buffer, PTFE Tube Coupler and switching adapter
Note: When connecting the 4 pin cable, make sure it is in the correct orientation. If you are using an L-shaped plug cable, pay attention to its text prompts. If you insert the 4 pin cable in the wrong direction, it may cause the printer and AMS mainboard to burn down
Connect the AMS hub to the tube coupler on the back of the printer using the matching ptfe tube, which tube should pass through the 4-pin plug and underneath the tray support to reduce feed resistance
Input: 24V 3A
