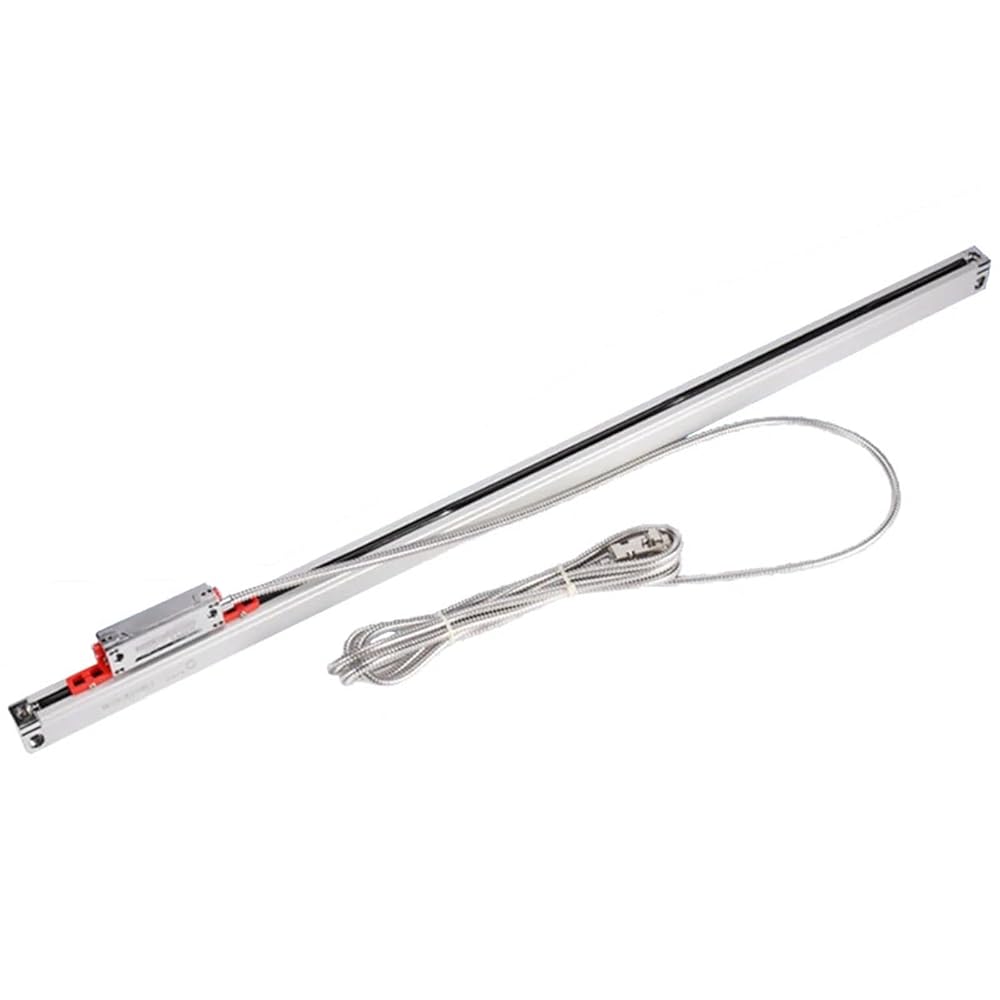

0.005mm Linear Sensors, Optical Grating Ruler Sensor, for DRO Lathe Milling Machine TTL 70mm/1020mm KA300, 1pc(KA300 170MM 5UM) in Saudi Arabia

KA300 820MM 5UM

SAR 1,368
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA300 820MM 5UM
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

0.005mm Linear Sensors, Optical Grating Ruler Sensor, For DRO Lathe Milling Machine TTL 70mm/1020mm KA300, 1pc
Product name: KA-300 Linear scale
Available Measrus Length: 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm, 870mm, 920mm, 970mm, 1020mm
Cross Section: 25mm X 34.5mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um/ 5um(0.001mm/0.005mm)
Output signal: TTL / EIA-422-A
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
High-concerned chemical : None
Electronic : No
Type : Linear Scale
DIY Supplies : Electrical
Resolution : 5um/0.005mm
Model Number : KA300
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 25mm* 34.5mm
Scale overall length : Travel+106mm
Operating temperature : 0-50°c
Installation holes distance : Travel+90mm
Interface Typ : 20um
Cable length : 3 meters
