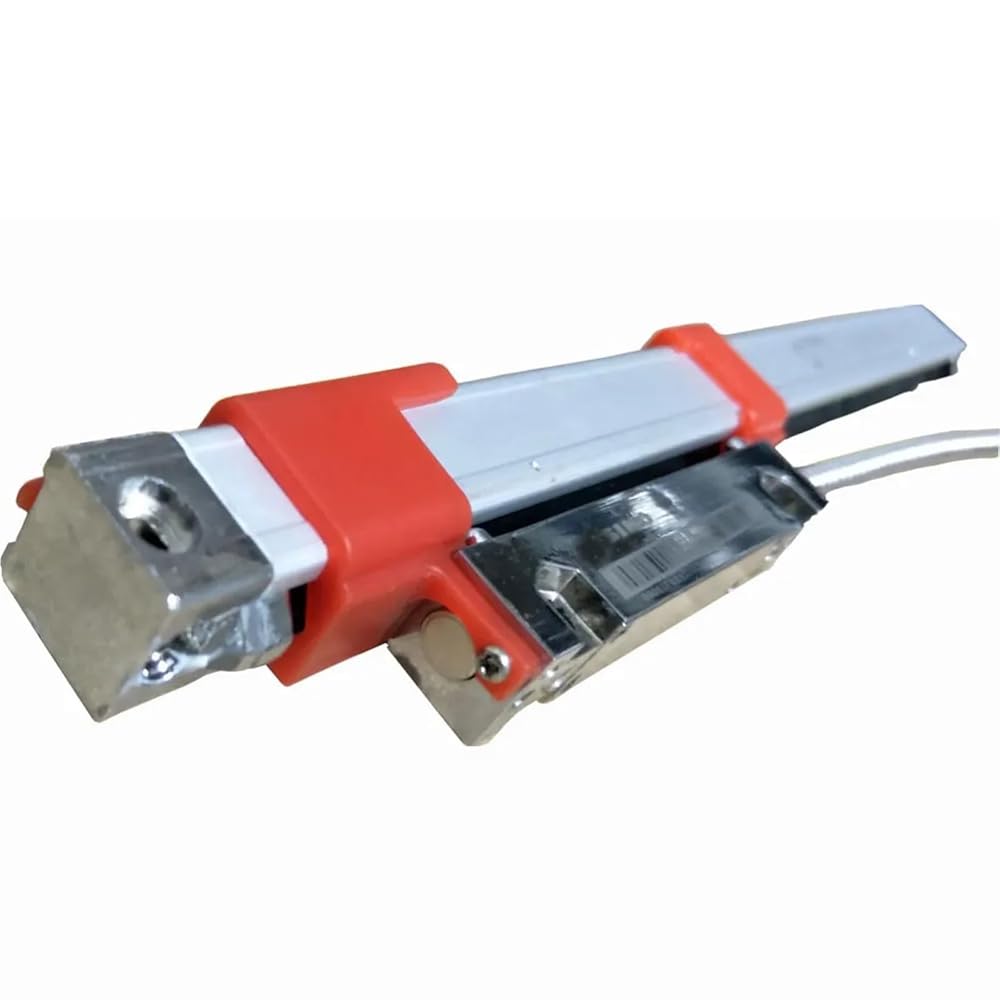

KA200 Linear Sensors, Electronic Scale Glass Optical Scale Incremental 5V A B Z Signal Output Encoder, 1pc
Product Brief:
KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by
optimizing the internal and external structure. It is suitable to the equipment on which
the installation is restricted and the space is even smaller. The length is 30-360mm.
1. technical parameters
1.1, pitch:
1.2, resolution:
1.3, accuracy:
1.4, range:
0.02 mm (50 line /mm)
5 m, 1 m, 0.5 M
+ 3 + 5, M + 15, m m/m (20 + 0.1 C)
30~3000mm
1.5, moving speed: high speed ruler 120 m/min
Ordinary ruler 60m/min
1.6, power supply:
+5V + 5%, 80mA
1.7, the length of the cable: Standard 2M (special length can provide according to the needs of the user)
1.8, working temperature: 0~45
1.9, plug foot instructions:
Battery Included : No
High-concerned chemical : None
Model Number : KA200-30mm
