Optical Glass Scale Linear Sensors 5um, 70/470mm Travel Replace Easson Digital Readout Ruler Lathe DRO, 1pc(KA-300-120mm) in Saudi Arabia

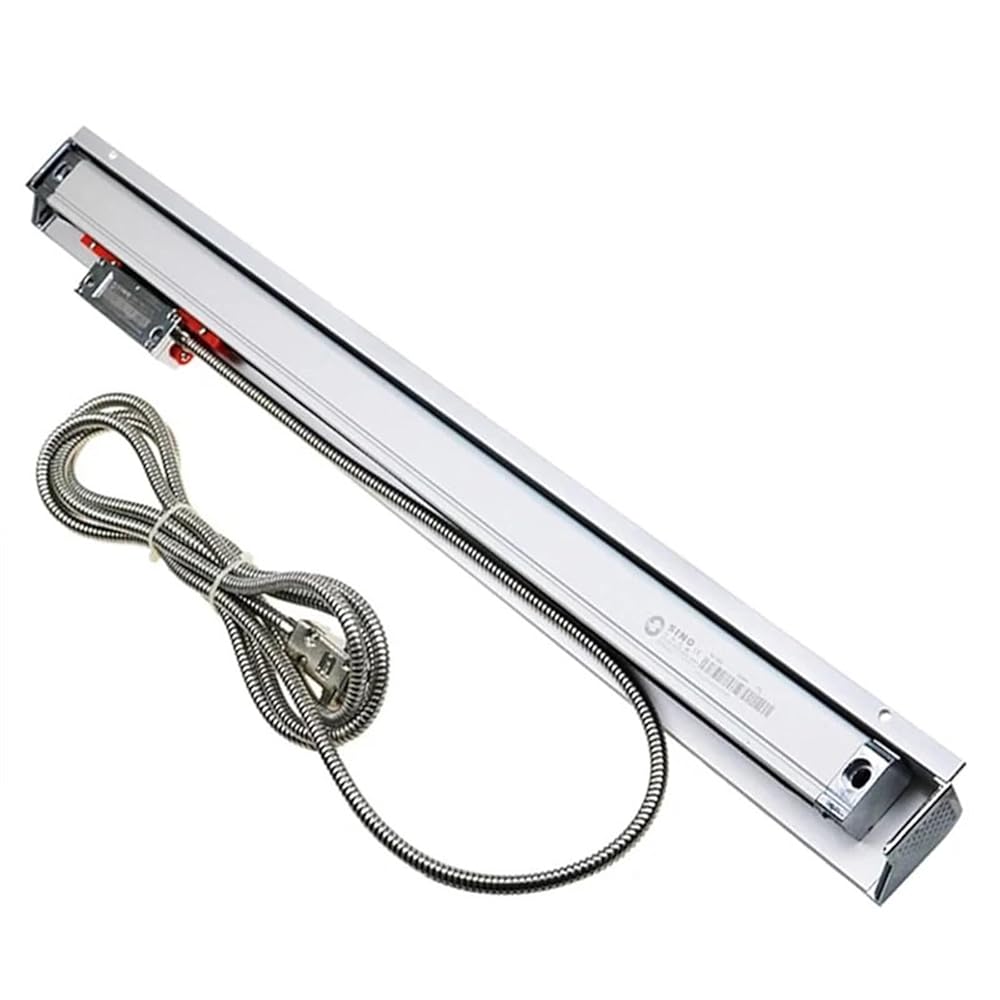

Optical Glass Scale Linear Sensors 5um, 70/470mm Travel Replace Easson Digital Readout Ruler Lathe DRO, 1pc(KA-300-120mm)

SAR 1,296
Brand
LOXNVUY
Category
Sensors
Weight
499 g
ColorKA-300-120mm
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

Optical Glass Scale Linear Sensors 5um, 70/470mm Travel Replace Easson Digital Readout Ruler Lathe DRO, 1pc
Linear Scale Parameter
1. Travel (measuring) length: 0-1020mm / 0-40 inch
2. Total (overall) length: Travel length + 106mm
3. Plug: DB9
4. Resolution: 0.005mm
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter (about 9 feet)
8. Normal size: About 25*34
Battery Included : No
High-concerned chemical : None
Model Number : KA300
Operating temperature : 0-50°c
Interface Type : DB9
Output mode : TTL
Protection grade : IP54
Resolution : 5um/0.005mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 25mm* 34mm
Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
Cable length : 3 meters
