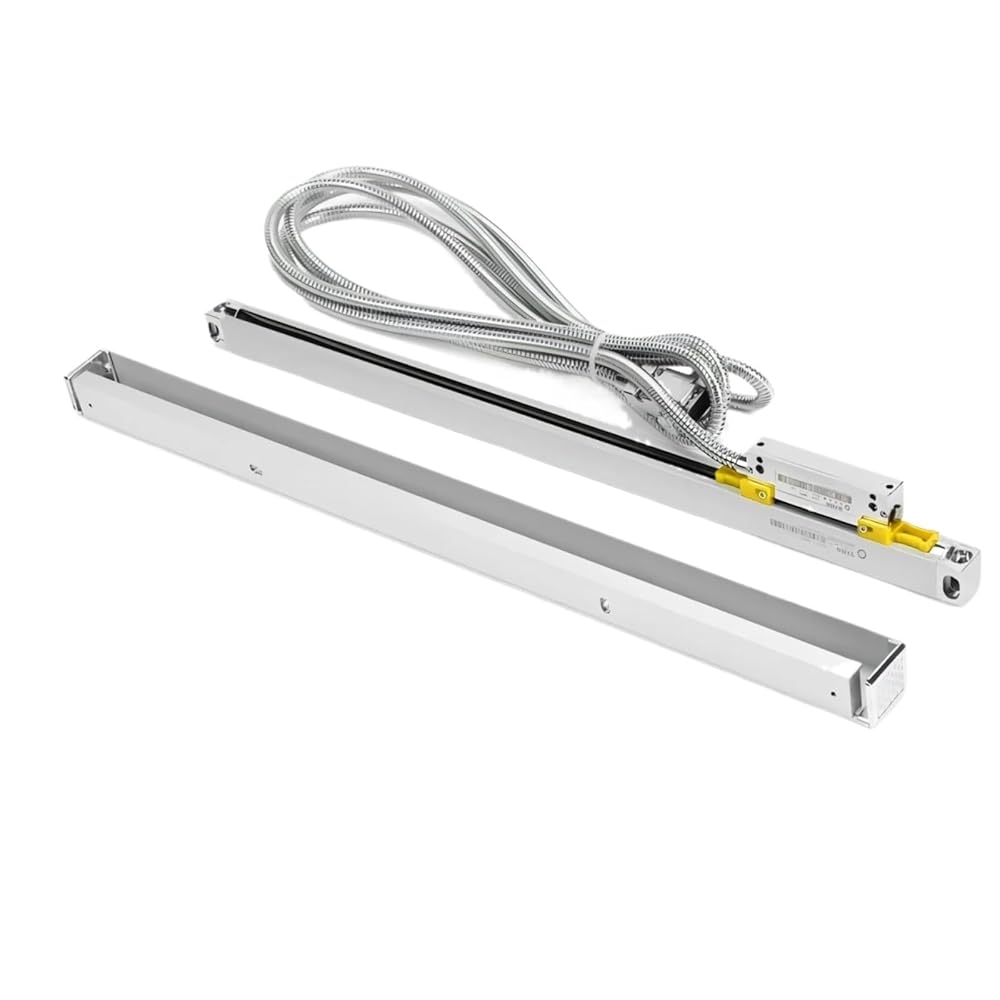

1μm Grating Rulers Sensor, Linear, Encoder for Lathe Milling 70~520mm KA500, 1pc(KA500-120mm-1U) in Saudi Arabia 1μm Grating Rulers Sensor, Linear, Encoder for Lathe Milling 70~520mm KA500, 1pc(KA500-120mm-1U) in Saudi Arabia

1μm Grating Rulers Sensor, Linear, Encoder for Lathe Milling 70~520mm KA500, 1pc(KA500-120mm-1U)

SAR 1,788
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA500-120mm-1U
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

1μm Grating Rulers Sensor, Linear Sensor, Encoder For Lathe Milling 70~520mm KA500, 1pc
Battery Included : No
High-concerned chemical : None
Model Number : KA-500
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : 20um,DB9
Resolution : 1um/0.001mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 25mm* 34mm
Scale overall length : Travel+106mm
Installation holes distance : Travel+90mm
Cable length : 3 meters
Procut name : DRO linear scale
KA-500 available travel length : 70mm-520mm
