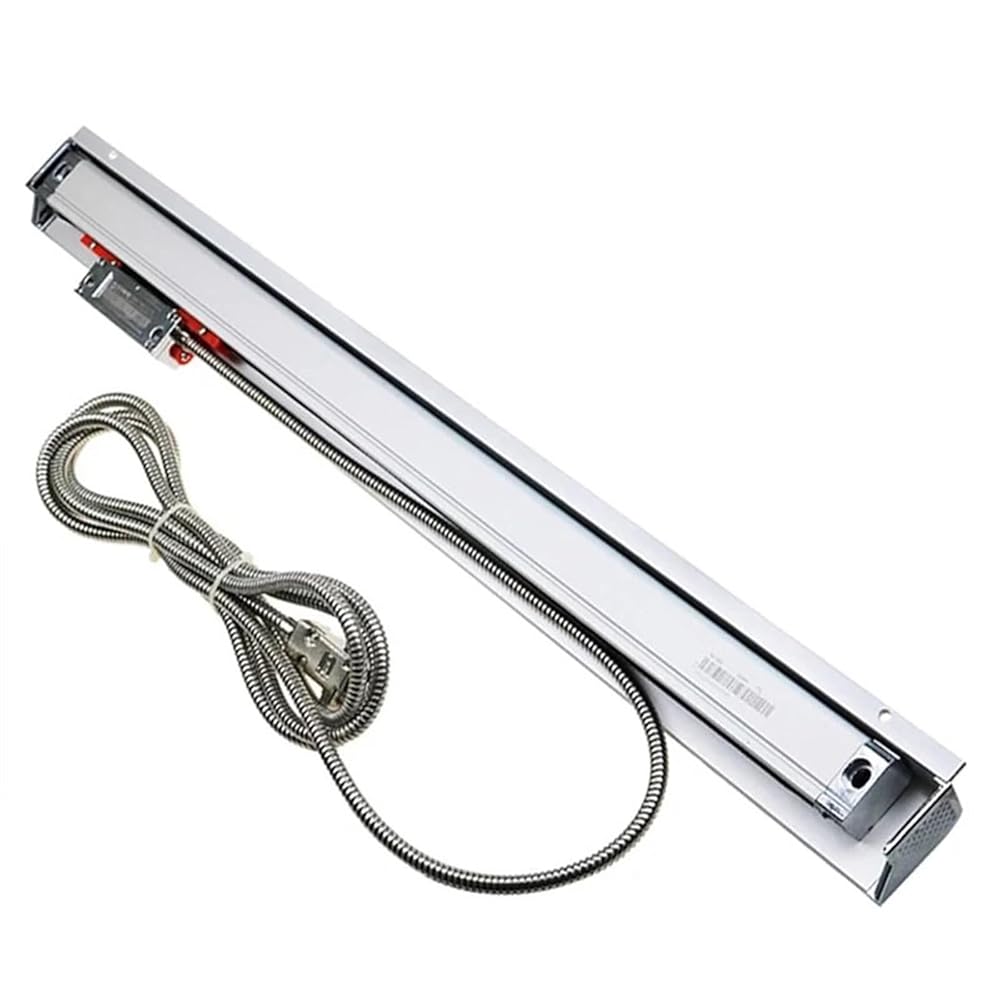

Linear Sensors 0.001mm, Optical Grating Ruler Sensor DRO Lathe Milling Machine TTL, 170mm/1020mm KA300, 1pc(KA-300-520mm) in Saudi Arabia

KA-300-470mm

SAR 1,531
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA-300-470mm
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

Linear Sensors 0.001mm, Optical Grating Ruler Sensor DRO Lathe Milling Machine TTL, 170mm/1020mm KA300, 1pc
Parameter
Product name: KA-300 0.001mm Linear scale
Available Measrus Length: 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 1020mm
Cross Section: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um
Output signal: TTL
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Model Number : KA300 0.001mm
Available Measrus Length : 120mm 170mm 220mm 270mm 320mm 370mm 420mm 470mm 520mm
