Special Features

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

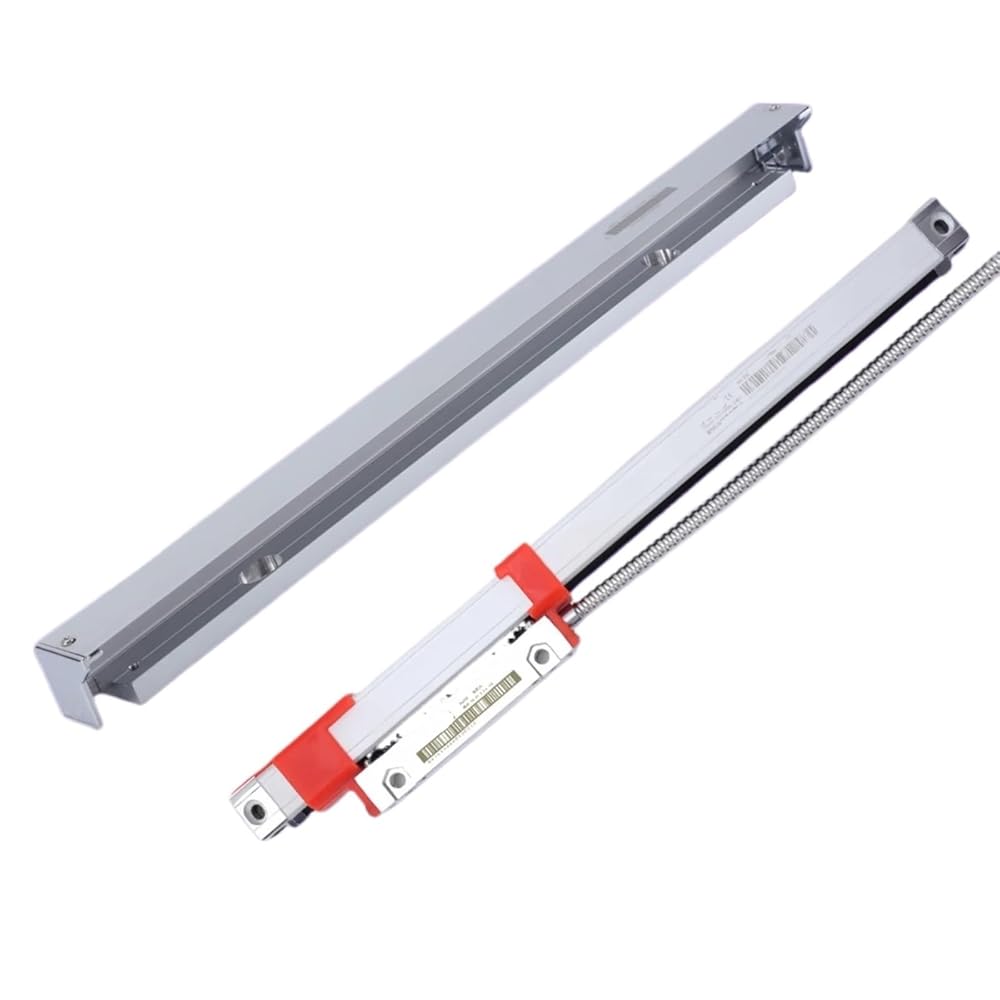

KA-200 16*16mm DRO Linear Sensors 30-340mm 0.005mm TTL Optical Encoder Line, 1pc
Model: KA200
Available measurement: 30mm to 360mm
Installation holes distance:measurement +95mm
Total length: measurement +103mm
Dimensions Cross section dimensions: 16mmx16mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm or 1um/0.001mm
Cable length: 2 meters
Battery Included : No
High-concerned chemical : None
Product name : linear scale
Travel length : 30mm-360mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 2 meters
Scale overall length : Travel+103mm
Installation holes distance : Travel+95mm
Cross section size : 16mm x 16mm
