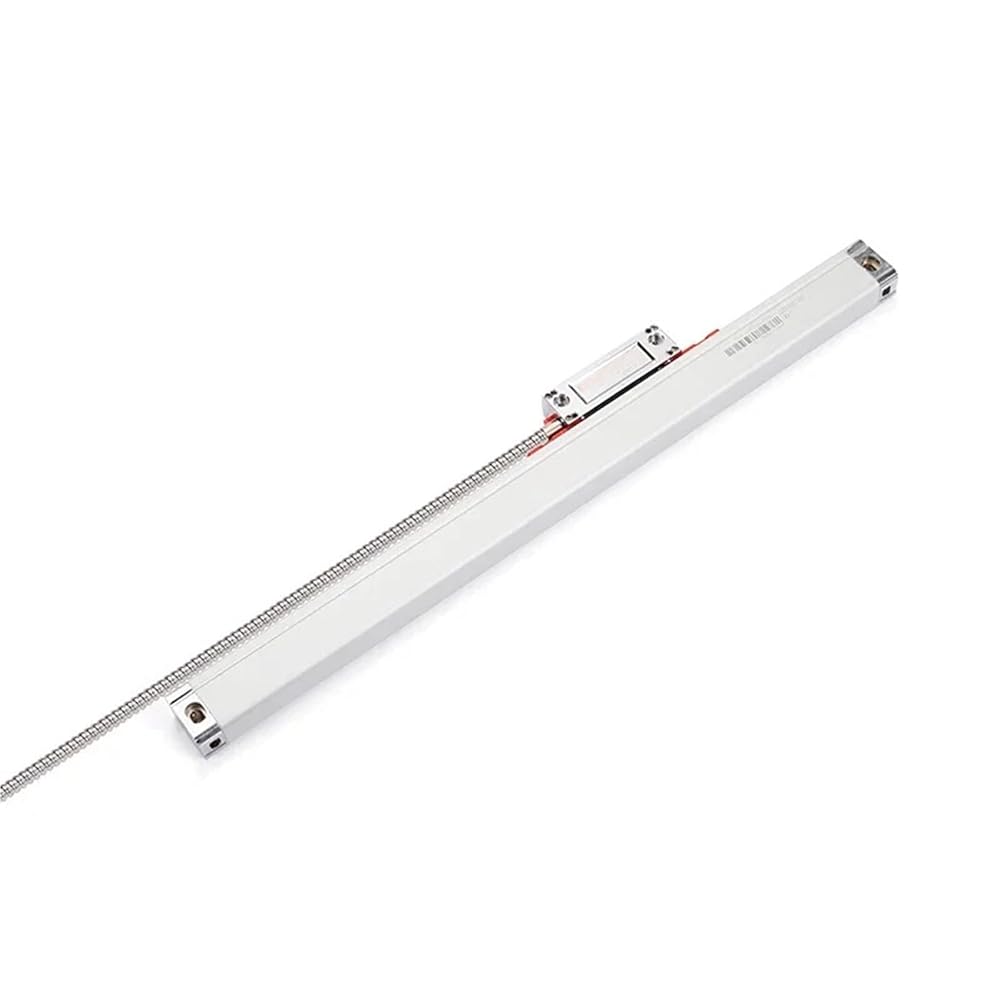

Ka300 Linear Sensors, Grating Resolution, Glass Optical Ruler, Machine Tool, Digital Display, 0.5um, 1pc
Degree in 70~1020mm.
1. technical parameters
1.1, pitch:
1.2, resolution:
1.3, accuracy:
1.4, range:
0.02 mm (50 line /mm)
5 um, 1 um, 0.5um
+ 3 + 5, M + 15, m m/m (20 + 0.1 C)
30~3000mm
1.5, moving speed: high speed ruler 120 m/min
Ordinary ruler 60m/min
1.6, power supply:
+5V + 5%, 80mA
1.7, the length of the cable: Standard 3M (special length can provide according to the needs of the user)
1.8, working temperature: 0~45
Battery Included : No
High-concerned chemical : None
Model Number : K3-0.5
Product Name: : grating ruler linear encod
Model: : 0.5um
Measuring distance: : 1020
Resolution: : 0.5um
Pitch: : 0.02mm
Voltage: : DC5V
Signal wire length: : 3M metal hose
Output signal: : EIA422
Moving speed: : 60 m / min
Operating temperature: : 0-45
