1um KA-300 DRO Grating Ruler Linear Sensors, 5V 1000mm Displacement Sensor with Protection Cover for Lathe Machine, 1pc(KA-300-170mm (1um)) in Saudi Arabia

KA-300-320mm (1um)

SAR 1,210
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA-300-320mm (1um)
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

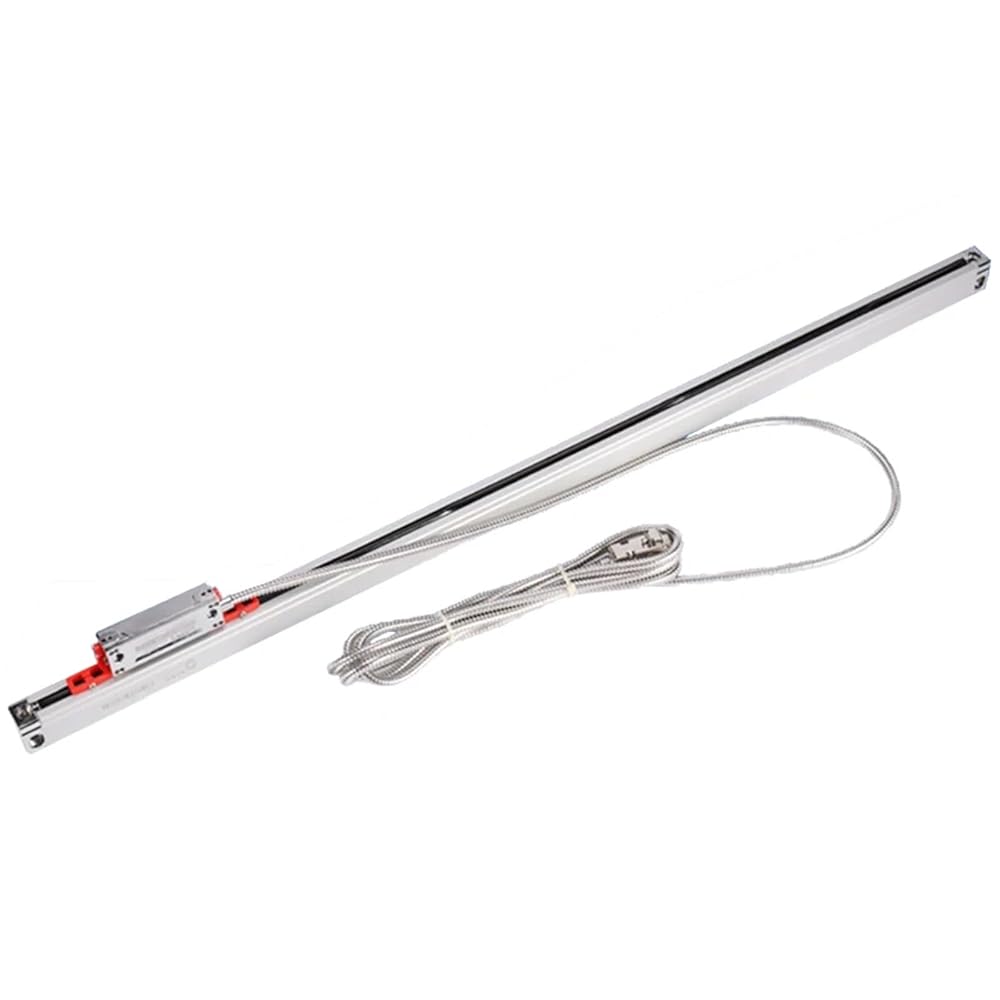

1um KA-300 DRO Grating Ruler Linear Sensors, 5V 1000mm Displacement Sensor with Protection Cover for Lathe Machine, 1pc
Model: KA300
Available measurement: 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 1020mm
Total length: available measurement +106mm
Size cross section size: 25mm x 34mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 1um(0.001mm)
Cable length: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Model Number : KA300
Operating temperature : 0-50°c
Interface Type : 20um,DB9
Output mode : TTL
Protection grade : IP54
Resolution : 1um/0.001mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 25mm* 34mm
Scale overall length : Travel+106mm
Procut name : DRO linear scale
Cable length : 3 meters
Installation holes distance : Travel+90mm
