مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

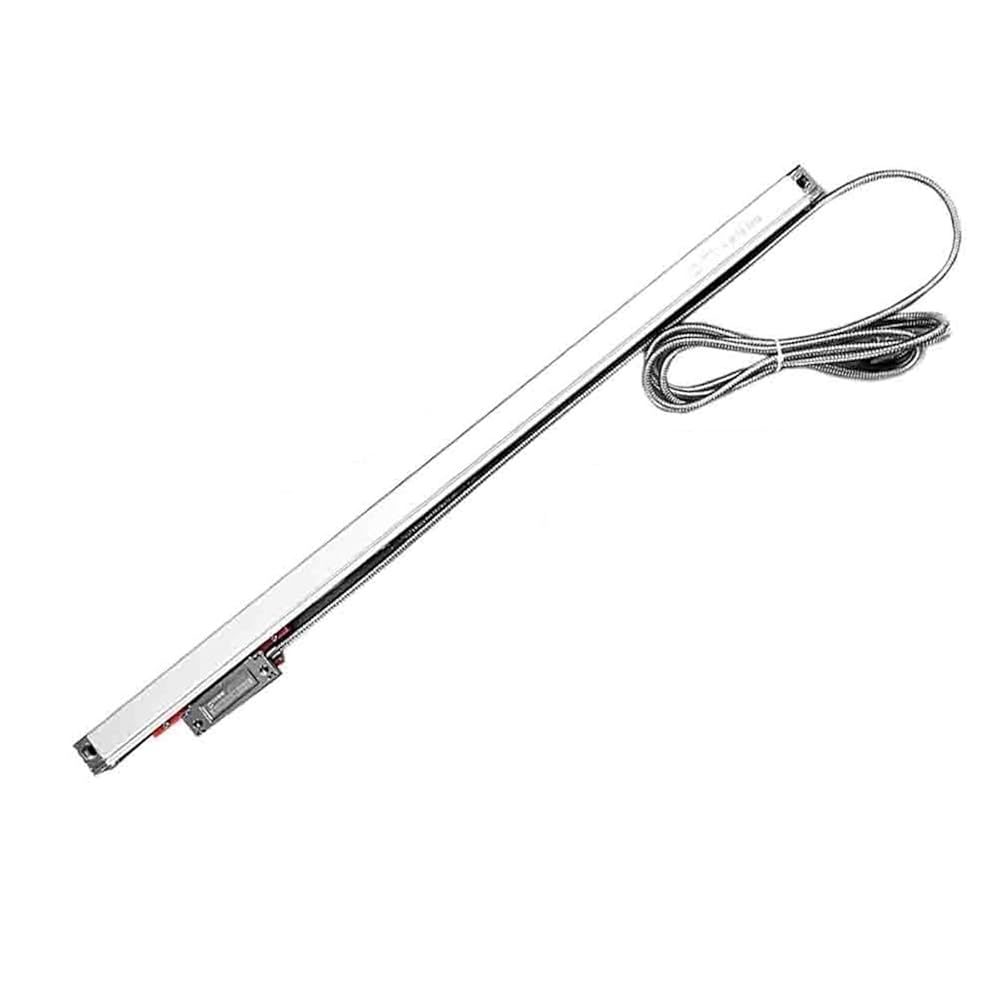

1μm Linear Sensors, Encoder Grating Ruler for Lathe Milling Digital Readout Machine KA300 570=1020mm, 1pc
Advantage
1.The reading head for the design of five bearing system
2.grating sensor is closed type
4.the light source adopts imported infrared leds
5.special oil resistance, corrosion resistant
6.with high level of anti-interference ability, high stability, high speed, vibration resistance
Metal shielded wire
1.Anti-interference
2.long lasting
3.Oil resistant
Battery Included : No
High-concerned chemical : None
Model Number : KA-300
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : 20um,DB9
Resolution : 1um/0.001mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 20mm* 18mm
Matchable DRO : the most of DRO
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cable length : 3 meters
Procut name : DRO linear scale
