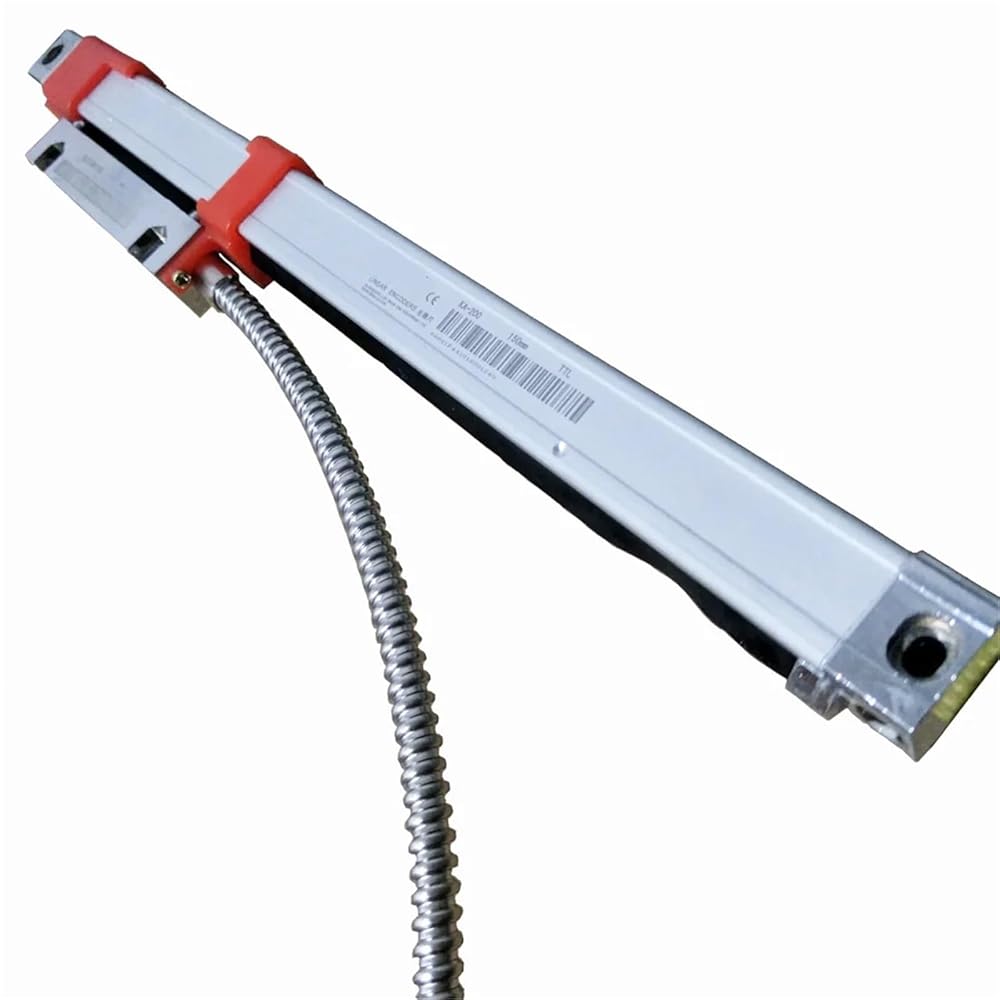

TTL Linear Sensors, KA200 Micro Grating Photoelectric Ruler With A Resolution Of 1um, 1pc
Product Brief:
KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by
optimizing the internal and external structure. It is suitable to the equipment on which
the installation is restricted and the space is even smaller. The length is 30-360mm.
1. technical parameters
1.1, pitch:
1.2, resolution:
1.3, accuracy:
1.4, range:
0.02 mm (50 line /mm)
5 m, 1 m, 0.5 M
+ 3 + 5, M + 15, m m/m (20 + 0.1 C)
30~3000mm
1.5, moving speed: high speed ruler 120 m/min
Ordinary ruler 60m/min
1.6, power supply:
+5V + 5%, 80mA
1.7, the length of the cable: Standard 2M (special length can provide according to the needs of the user)
1.8, working temperature: 0~45
1.9, plug foot instructions:
1) suitable for: 9 core socket RS-422 signal output.
2) suitable for: 9 core socket TTL signal output.
FG: shielded metal case
Battery Included : No
High-concerned chemical : None
Model Number : KA200
Product Name: : grating ruler linear encod
Model: : KA200
Measuring distance: : 70mm-420mm
Resolution: : 1um
Pitch: : 0.02mm
Voltage: : DC5V
Signal wire length: : 2M metal hose
Output signal: : TTL
Moving speed: : 60 m / min
Operating temperature: : 0-45
