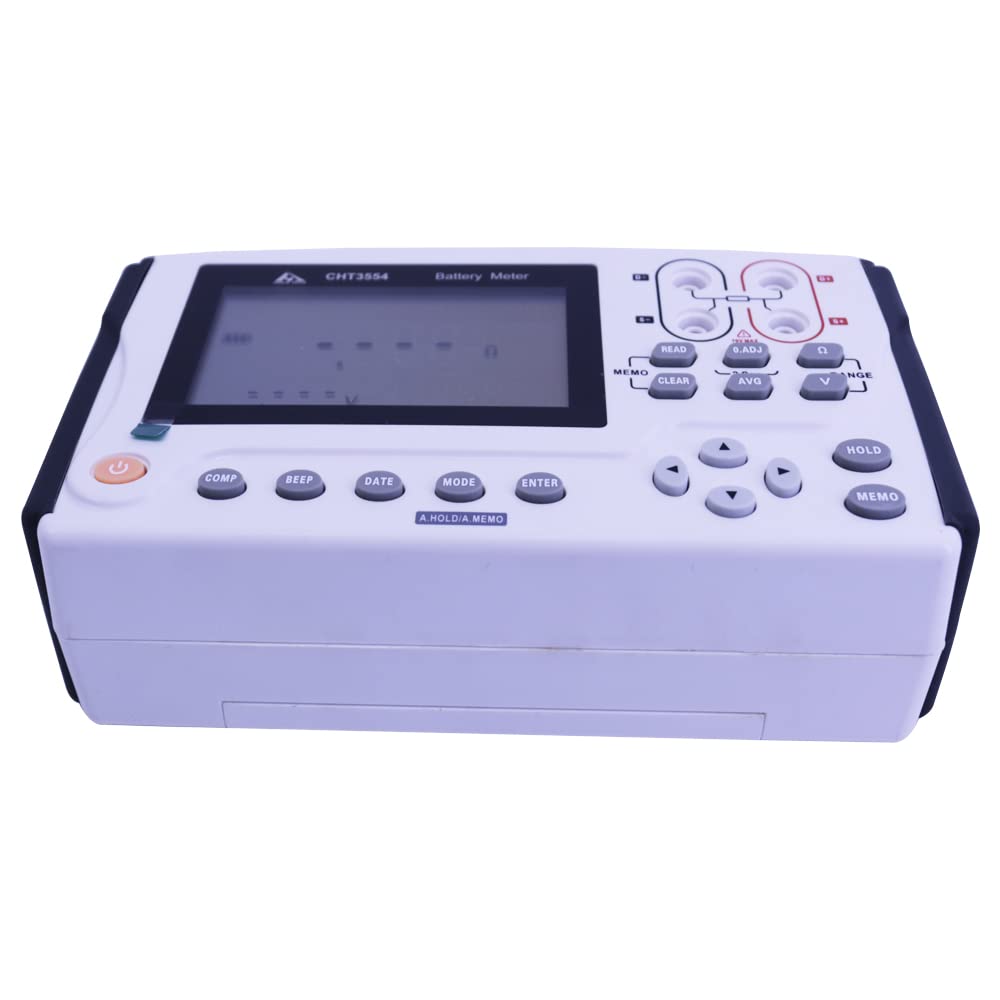

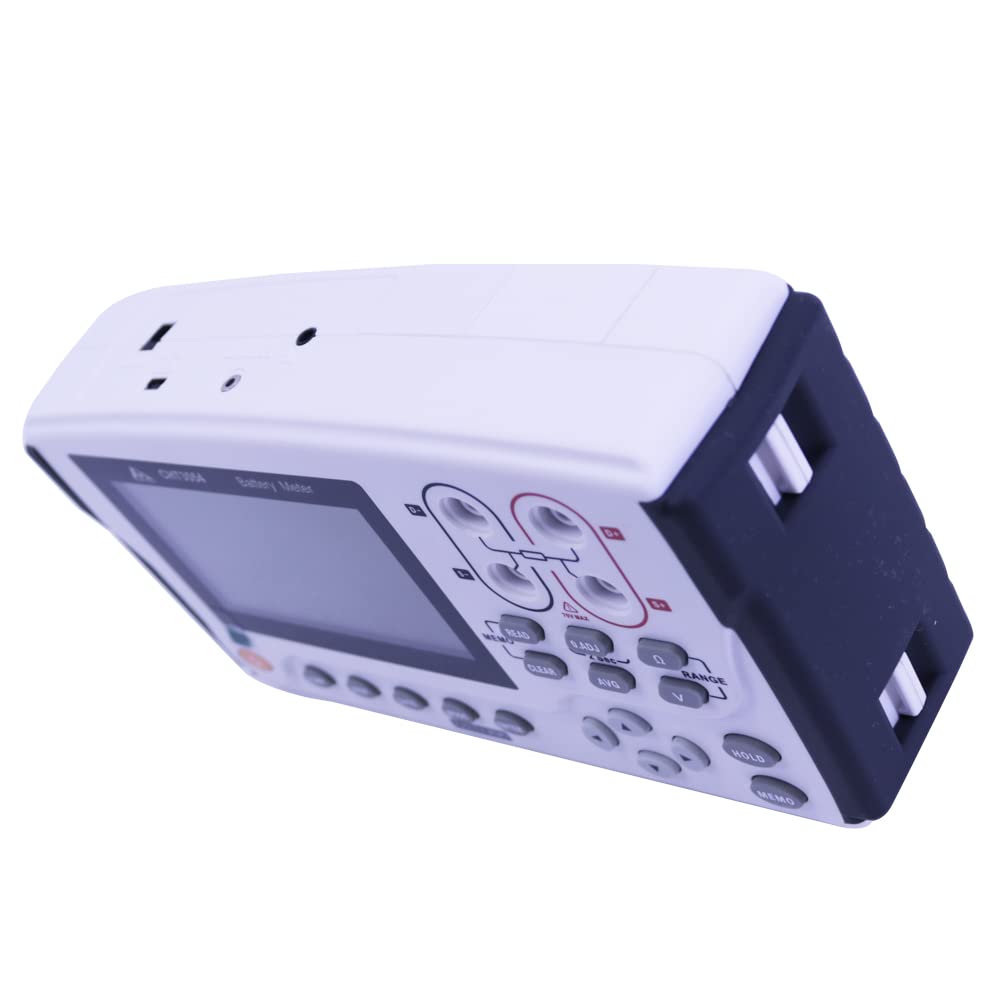

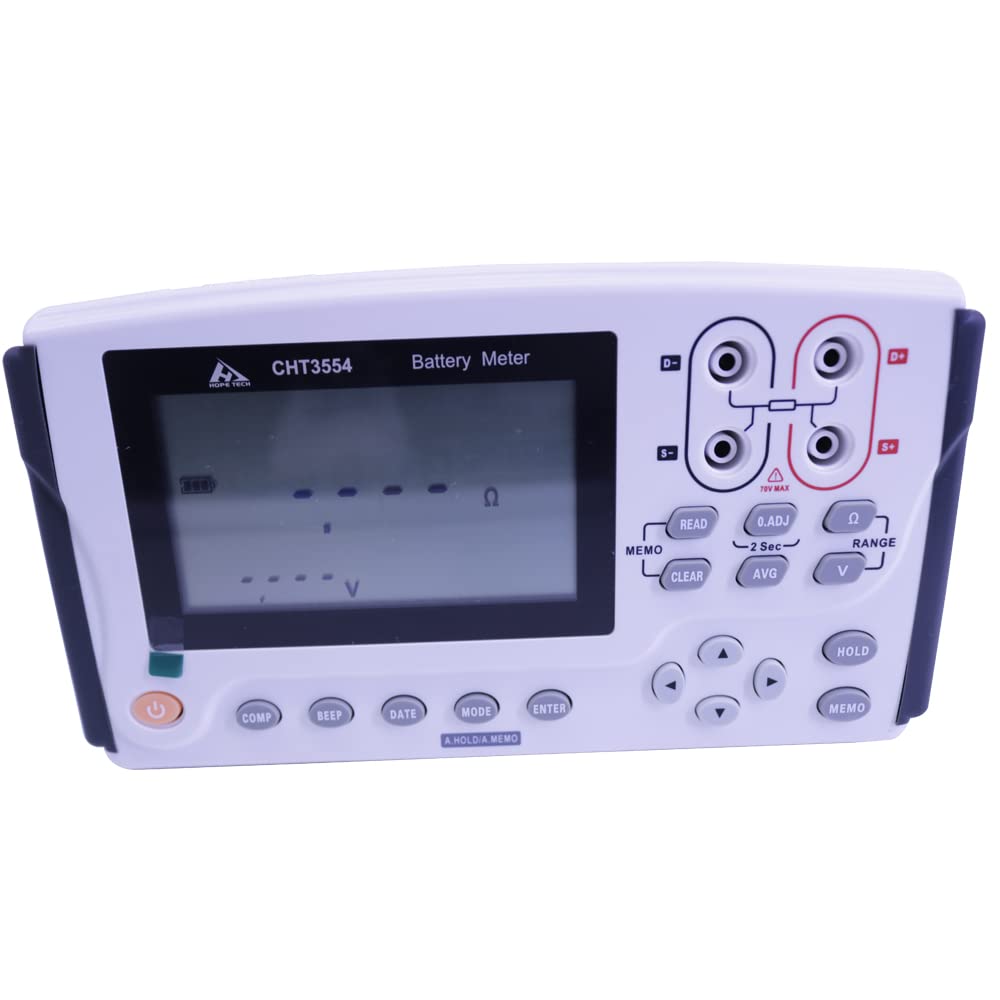

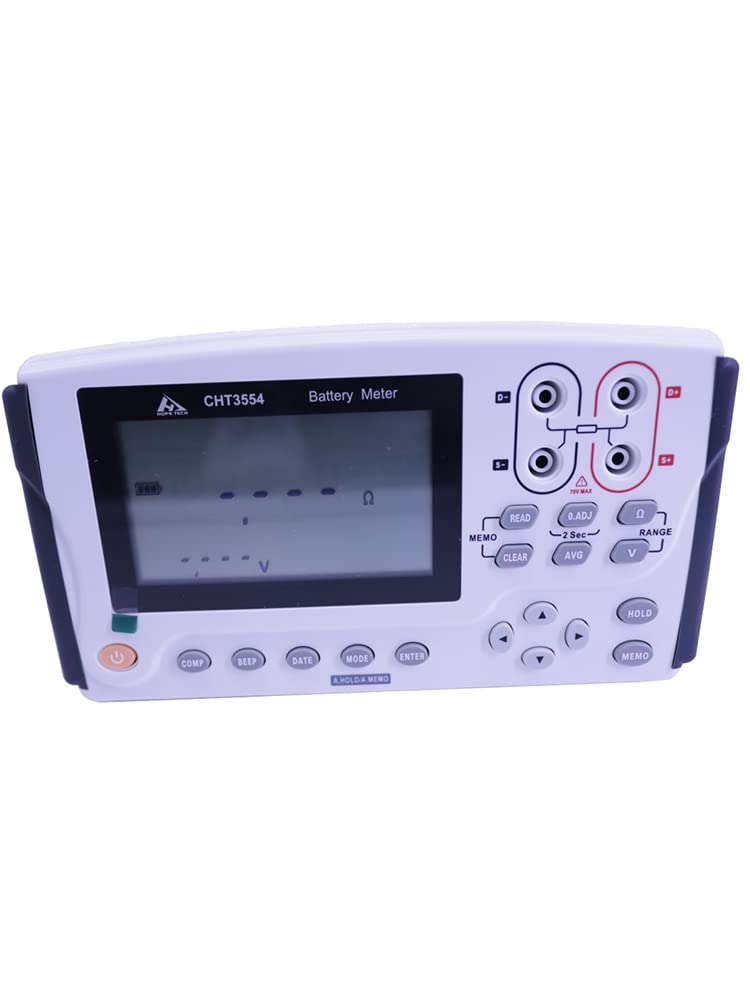

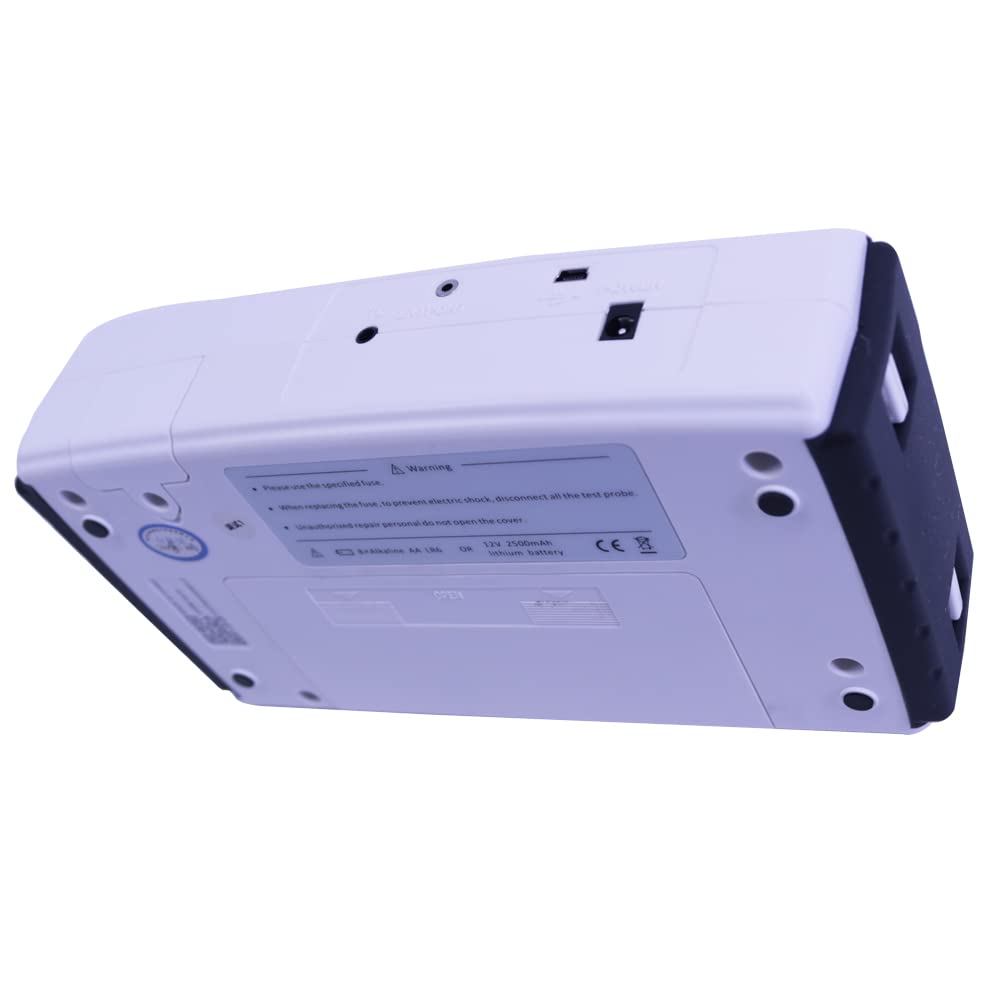

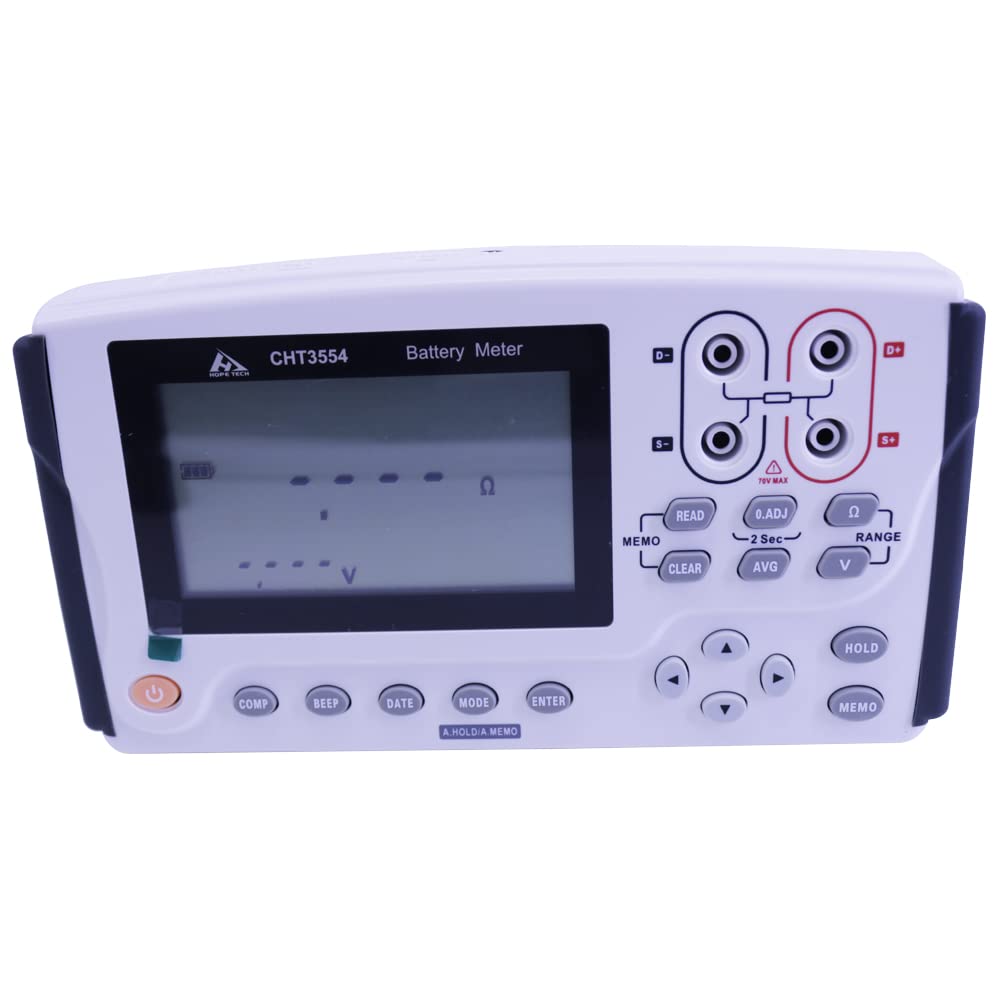

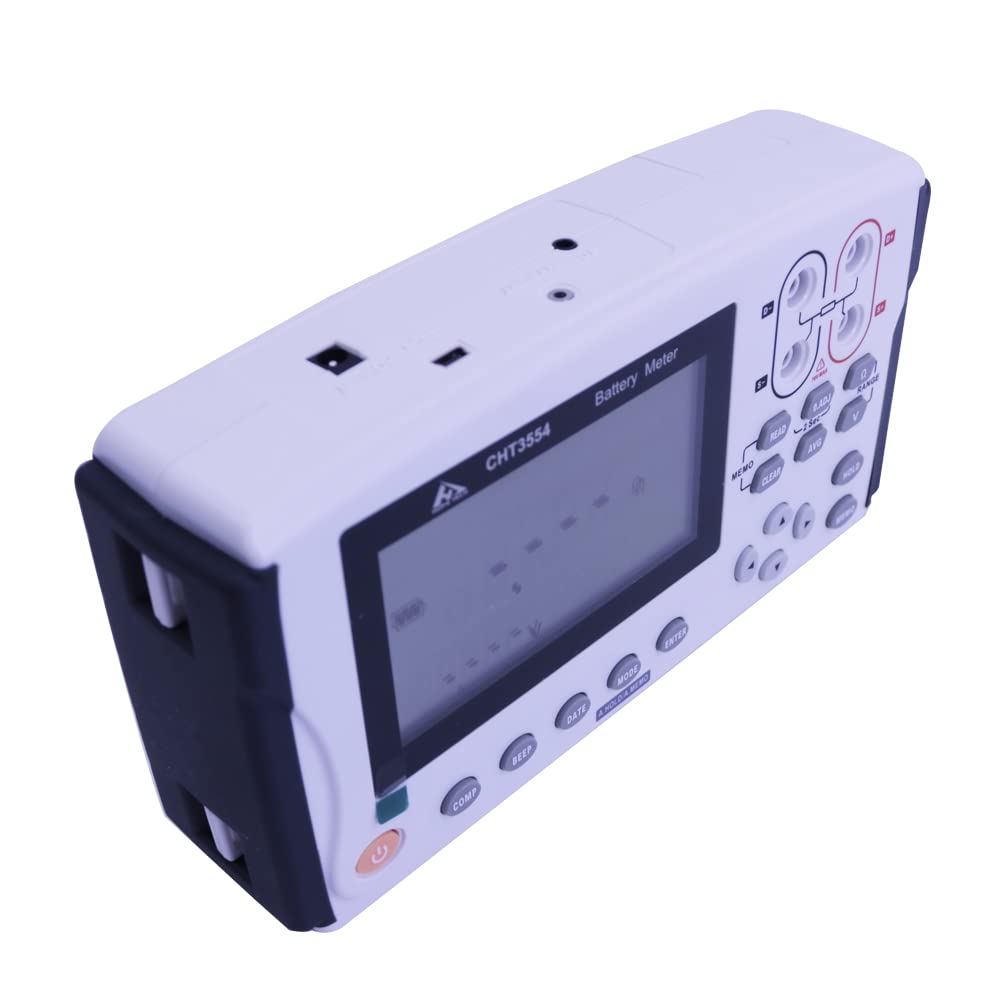

Features of Hepu CHT3554 battery tester
1. High stability, high resolution design, the highest resolution of voltage is 0.1mV, and the highest resolution of internal resistance is 0.1μΩ.
2. *Anti-interference, can test UPS battery under load.
3. Provide battery deterioration diagnosis function, which directly indicates battery health status.
4. Ultra-low power consumption design, can work continuously for 6~7 hours.
5. The power supply is compatible with lithium batteries and dry batteries, and is not limited to air transportation.
6. Save 2400 sets of data offline, and use the built-in software to directly export EXCEL format files.

Technical Parameter
Model：CHT3554
Screen size：4.3 inches LCD display
Measurement ：itemsInternal resistance, DC voltage
Basic Accuracy：Resistance: ±1% Voltage: ±0.1%
Measurement rangeResistance:0.001mΩ~ 3.100Ω Voltage: 1mV~60.00V
Signal source：AC 1kHz, Test current:
RangeResistance: 3mΩ/30mΩ/300mΩ/3Ω
Sampling rate1 meas/sec (the average number optional)
The minimum resolutionResistance: 1μΩ Voltage: 1mV
The maximum readingResistance: 31,000 Voltage:60,000
TemperatureRange:-10℃ ~60℃, Accuracy:±1℃
CorrectionShort-circuit reset for all ranges
ComparatorFAIL/PASS sorting
Internal data storage：Store up to 2400 test data
TriggerInternal/auto trigger
InterfaceUSB

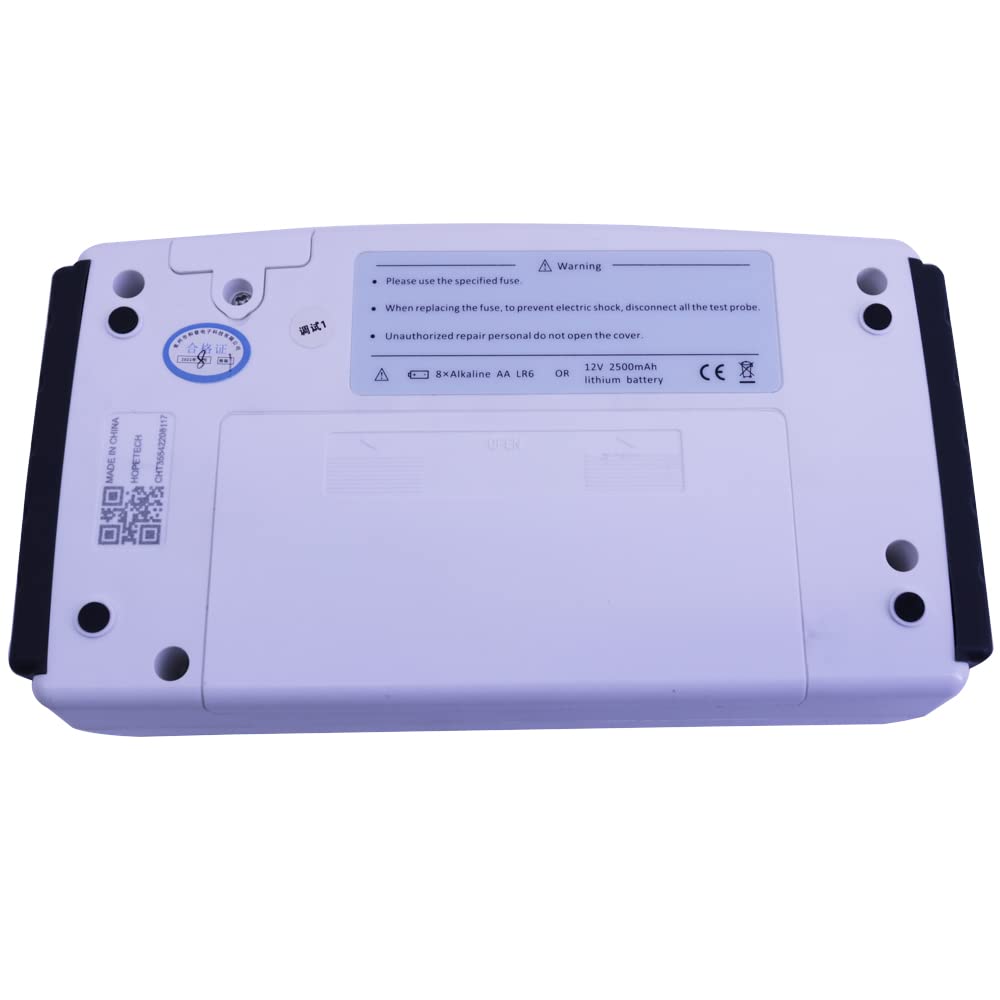

Power supply：12V/1700 mAh lithium battery, AA (LR6) Alkaline Batteries x 8
mption
Input impedance：32kΩ
Dimensions and weight：208 mm (L) x52.5mm (W) x120mm (D); Weight: 0.81kg

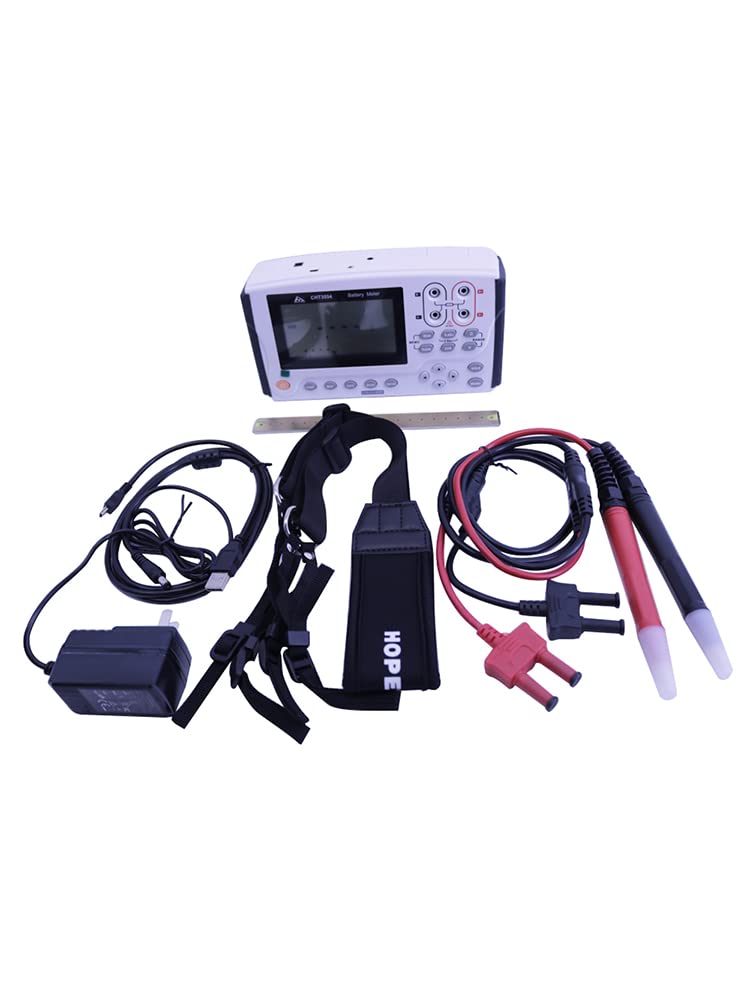

AccessoriesTest probe, zero board, lithium battery, DC power adapter, temperature probe, Mini-USB cable
