Description:
Material - Push to connect plug fittings are made of plastic, and have the characteristics of flexibility, wear resistance, light weight, crack resistance, compression and corrosion resistance, good sealing performance, and long service life.

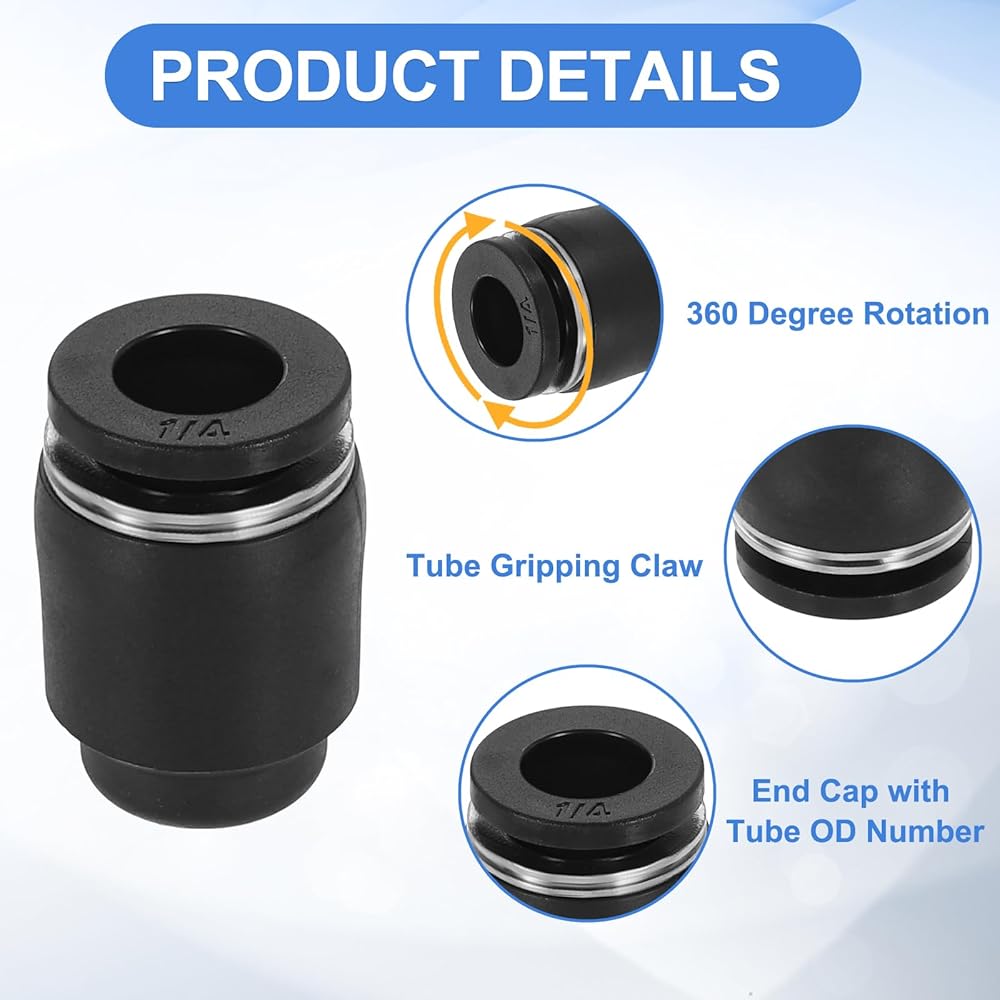

Design - The pneumatic pipe cap has a tube gripping claw inside to provide a strong grip, good sealing performance, and prevent leaking. The pneumatic cap style plug adopts a 360° rotation design, and the direction of the pipe can be changed after installation.

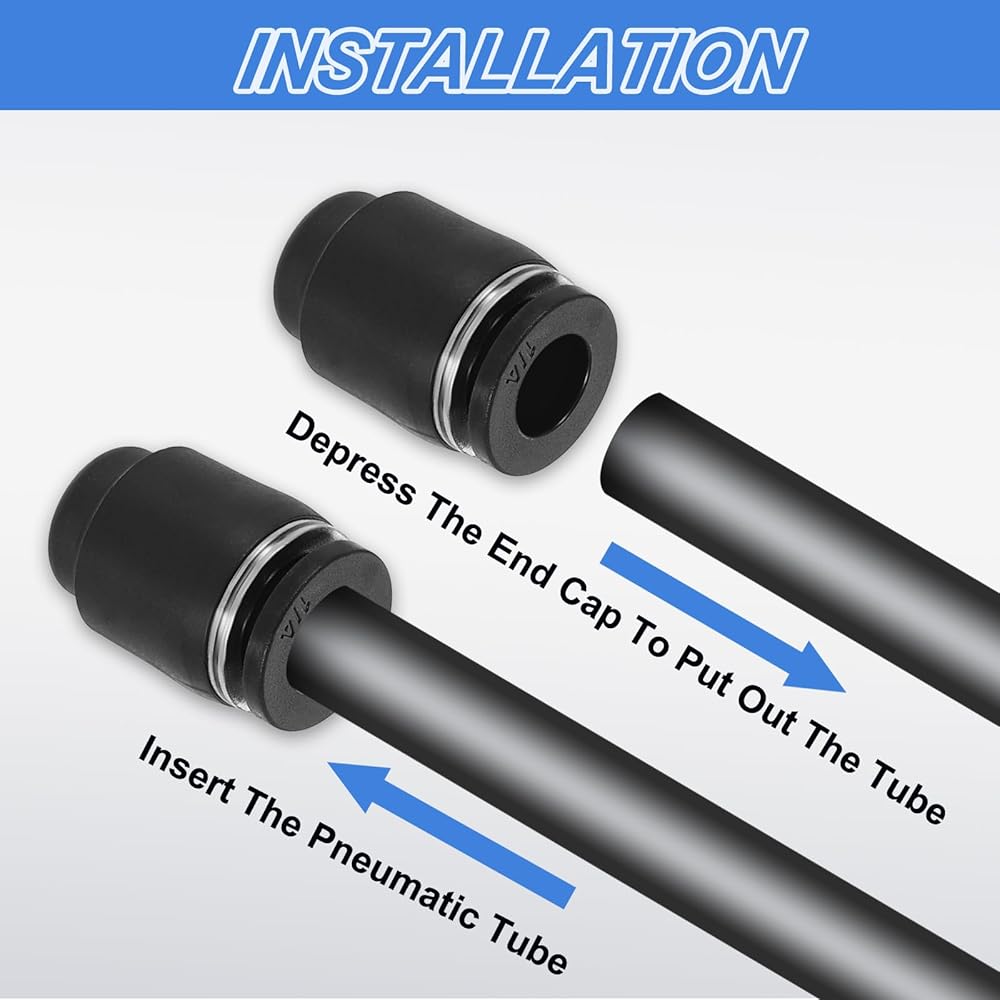

Installation - Push-in tubing is easy to install. First, cut the pipe flat, then put the pipe into the end of the fitting to prevent leakage. After inserting the pipe, try to pull the pipe. If the pipe cannot be pulled, it means it is connected. When loosening the pipe, make sure there is no pressure in the pipe, and then press the end cap evenly to the bottom.

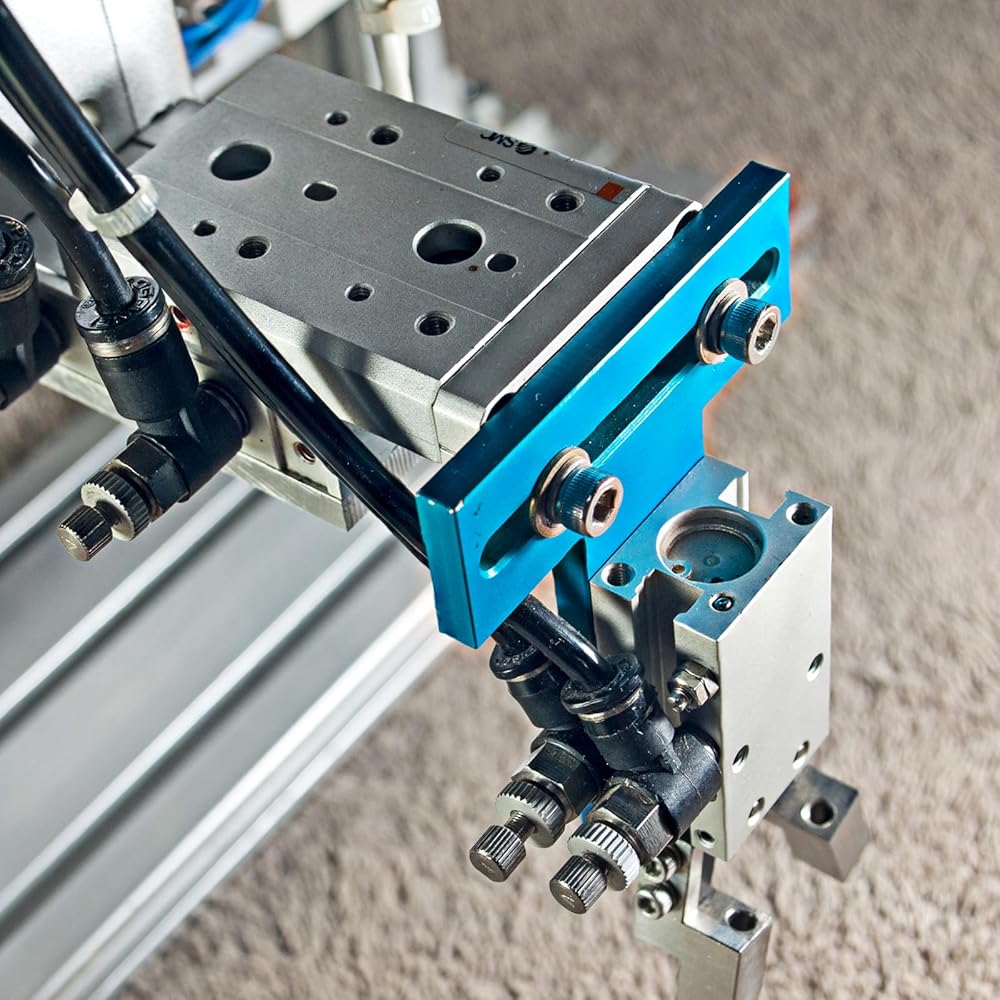

Wide Application - Push to connect fittings can be used to connect polyethylene, nylon, and PU pipes. Commonly used in low-pressure hydraulic and pneumatic systems, such as aircraft control, air horns, automotive assembly, and maintenance, etc.

Specification:
Material: Plastic
Color: Black
Operating Pressure: 0-1.2 MPa
Operating Temperature: 0-70 Degree Celsius
Fit Tube OD: 1/4"
Plug Fitting Size: 19 x 12mm/0.75" x 0.47"(L*W)

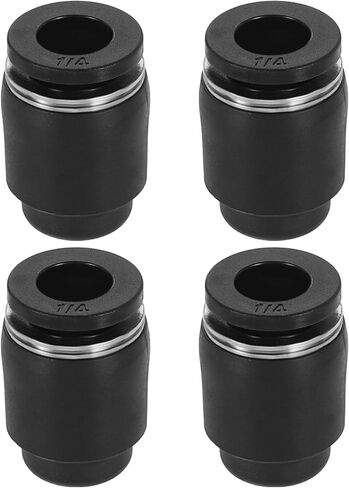

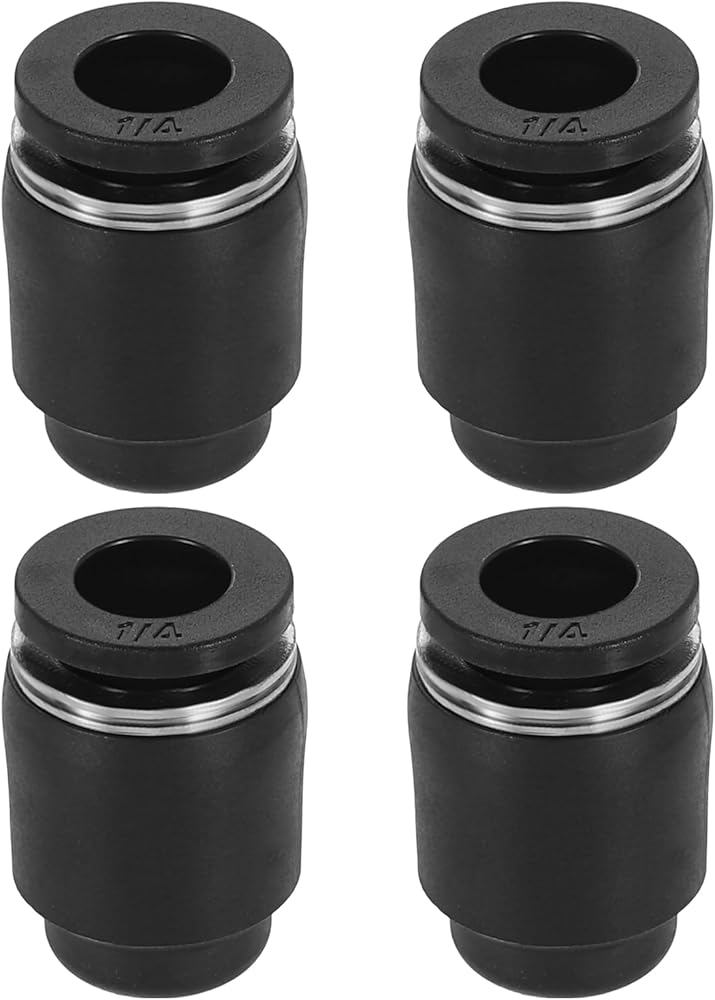

Package: 4Pcs x Pneumatic Cap Style Plug Fittings
