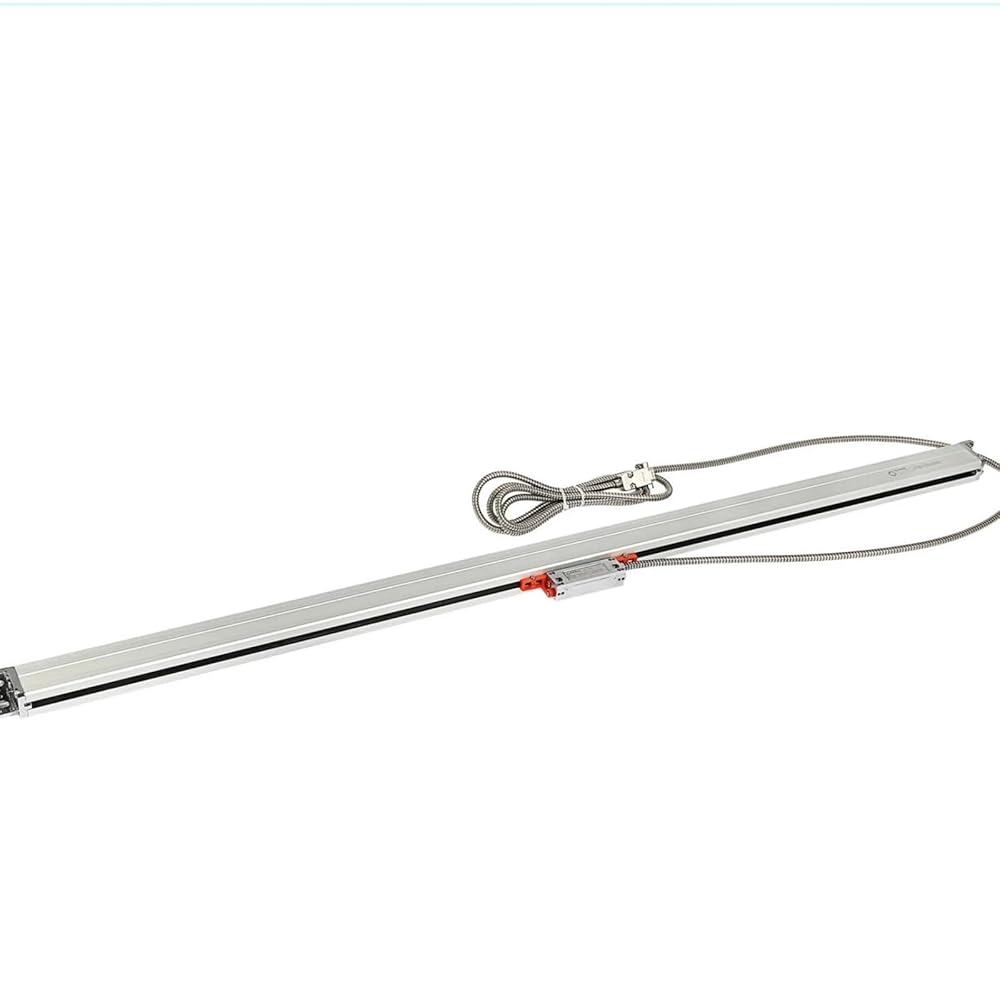

KA-600 DRO Linear Sensors, 5um TTL Lathe Mill Machine KA600 1000mm/1500mm Grating Ruler Optical Encoder, 1pc(KA600-5um-1100mm) in Saudi Arabia

KA600-5um-1200mm

SAR 2,043
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorKA600-5um-1200mm
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

KA-600 DRO Linear Sensors, 5um TTL Lathe Mill Machine KA600 1000mm/1500mm Grating Ruler Optical Encoder, 1pc
Product name: KA-600 Linear scale
Available Measrus Length: 1100mm, 1200mm, 1300mm, 1400mm, 1500mm
Cross Section: 30mm X 43mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 3 meters(longer option)
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
HYMSEANN Model : KA-600
Procut name : KA600 linear scale
Travel length : 1100mm, 1200mm, 1300mm, 1400mm, 1500mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters(Longer option)
Cross section size : 30mmx43mm
Scale overall length : Travel+170mm
Installation holes distance : Travel+150mm
