0.005mm Linear Sensors KA35, Grating Optical Ruler Sensor 5um TTL 100mm /1000mm, 1pc(Travel Length-850MM) in Saudi Arabia

Travel Length-450MM

SAR 1,028
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
ColorTravel Length-450MM
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

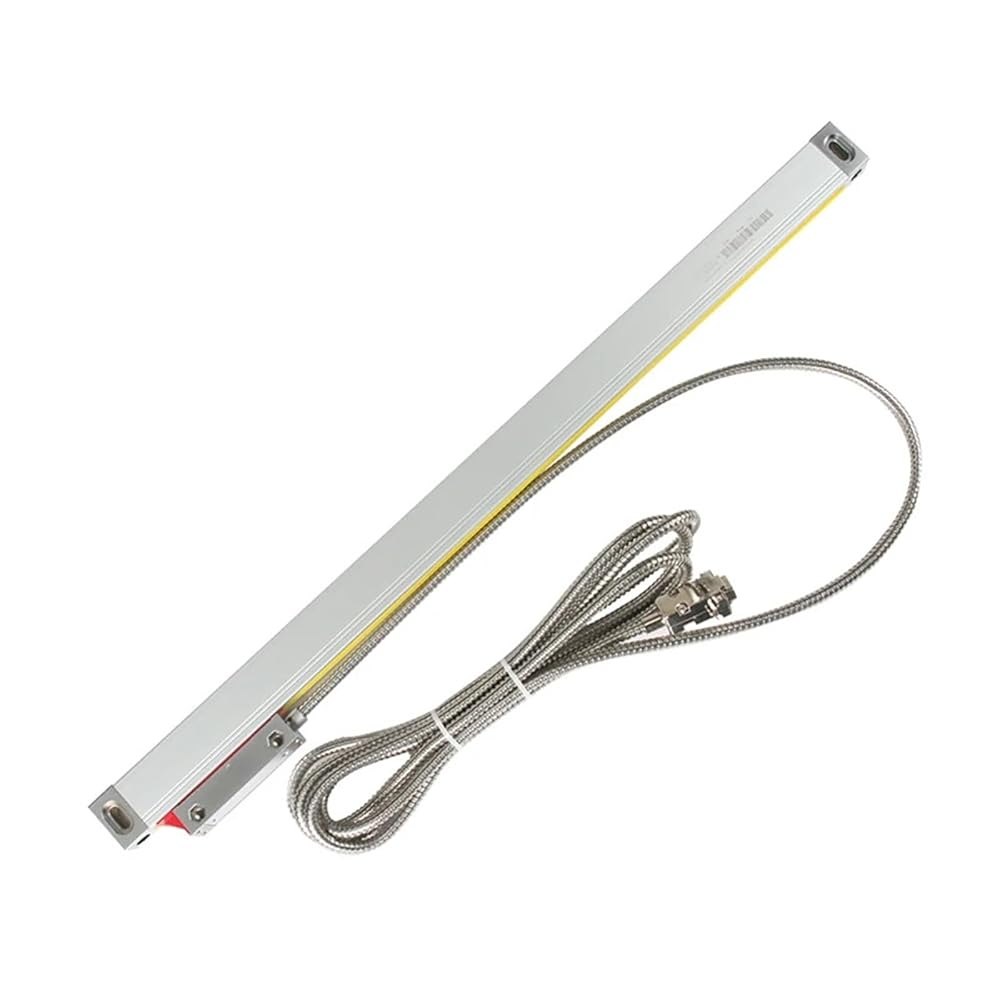

0.005mm Linear Sensors KA35, Grating Optical Ruler Sensor 5um TTL 100mm /1000mm, 1pc
Model: KA35
Travel length(Available measurement): 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm
Total length: available measurement +143mm
Size cross section size: 22mm x 34mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um(0.005mm)
Cable length: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
The Signal of Linear scale
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 Orang B
High-concerned chemical : None
Electronic : No
Type : Linear Scale
Model Number : KA35
DIY Supplies : Electrical
Resolution : 5um/0.005mm
KA35 available travel length : 50mm to 1000mm
Scale overall length : Travel+143mm
Installation holes distance : Travel Length+125mm
Cross Section Dimension : 22mm* 34mm
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Interface Typ : 20um
Cable length : 3 meters
Application : Mill, Lathe, Grinder, CNC etc.
