Special Features

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

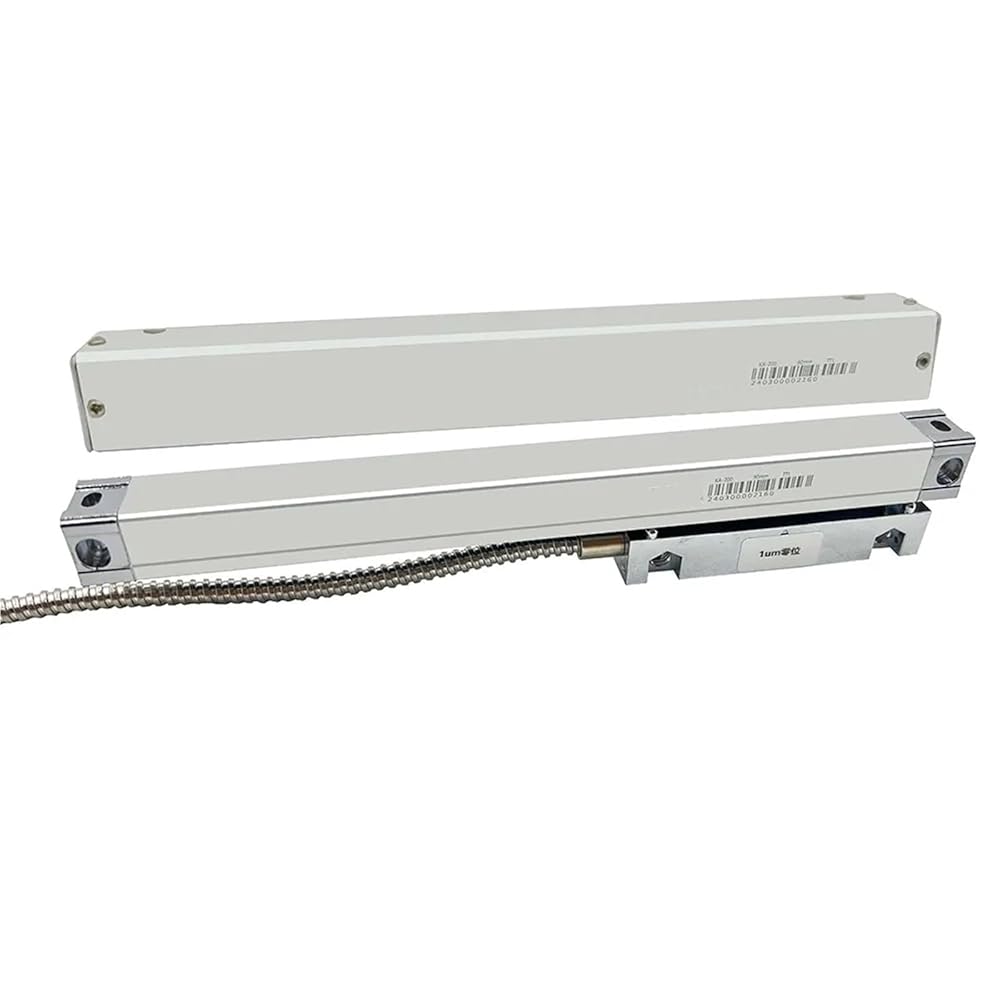

KA200 TTL 5V 5um Linear Sensors, Glass Grating Ruler Electronic Ruler Milling Machine Lathe DRO, 1pc
1. Technical Parameter
1.1 Scaling distance: 0.02 mm (50lines /mm)
1.2 Resolution: 5m,
1.3 Precision: ±3m,±5m,±15m/m (20±0.1)
1.4 Measuring range: 120~200mm
1.5 Moving speed: High-speed encoder 120 m/min
Ordinary encoder 60m/min
1.6 Power supply: +5V±5%,80mA
1.7 Cable length: Standard 2m (Special length available according to the user'sneeds
1.8 Working Temperature: 0~45
Battery Included : No
High-concerned chemical : None
Model Number : KA200-5um-70-420
MSTBODEN Model : KA200
