مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

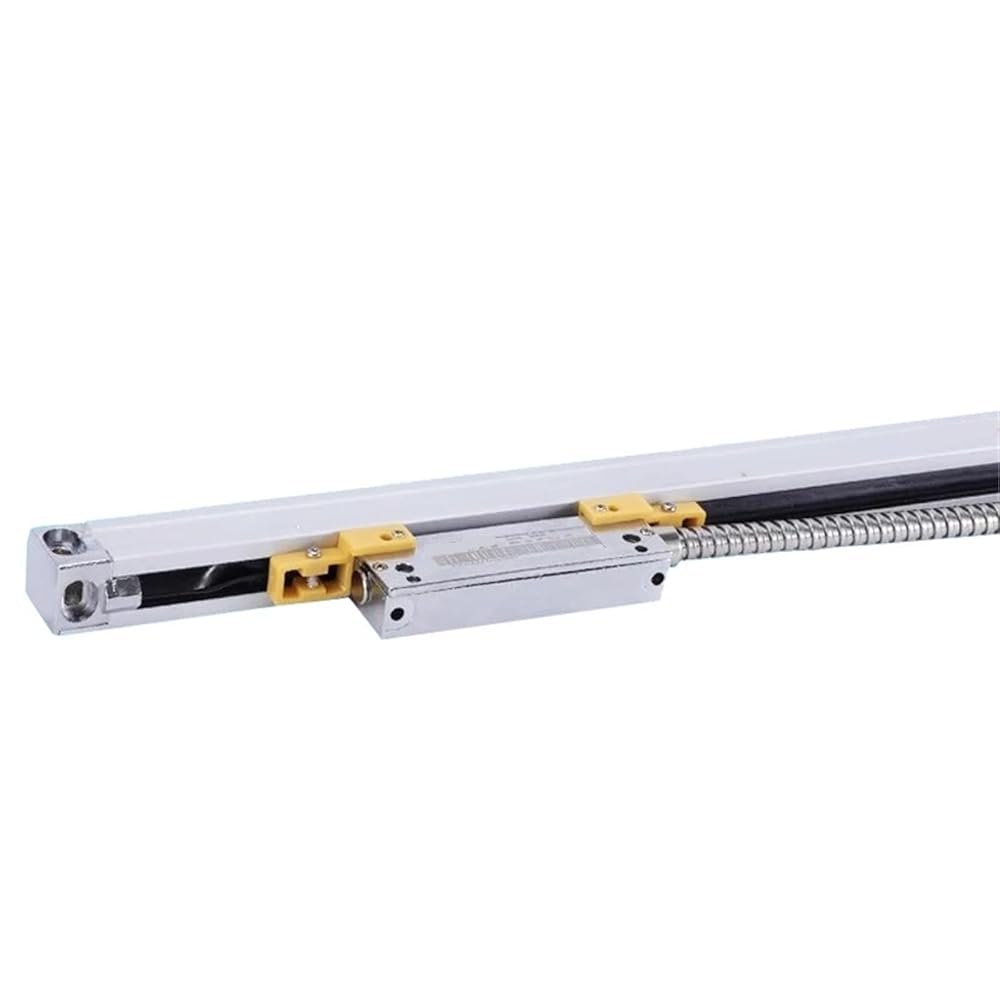

0.005mm KA-500 120mm-520mm Slim Linear Sensors, Thin Small Linear Encoder for DRO, 1pc
Model: KA-500
Advantage: Slim scale suits for small machine tool
Product name: Linear scale sensor
Travel/working length: 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm
Resolution: 0.005mm (0.001mm option with extra cost)
Ouput signal: TTL
Input voltage:5VDC
Cale length: 3 meters
Battery Included : No
High-concerned chemical : None
Model Number : KA-500
Item name : Sino linear scale
Available Measrus Length : 70mm-520mm
Cross Section Dimension : 18mm * 20mm
Resolution : 5um(0.005mm)
Output signal : TTL
Reference Point : one unit per 50mm
Max of Measuring speed : 60m/min
