Special Features

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

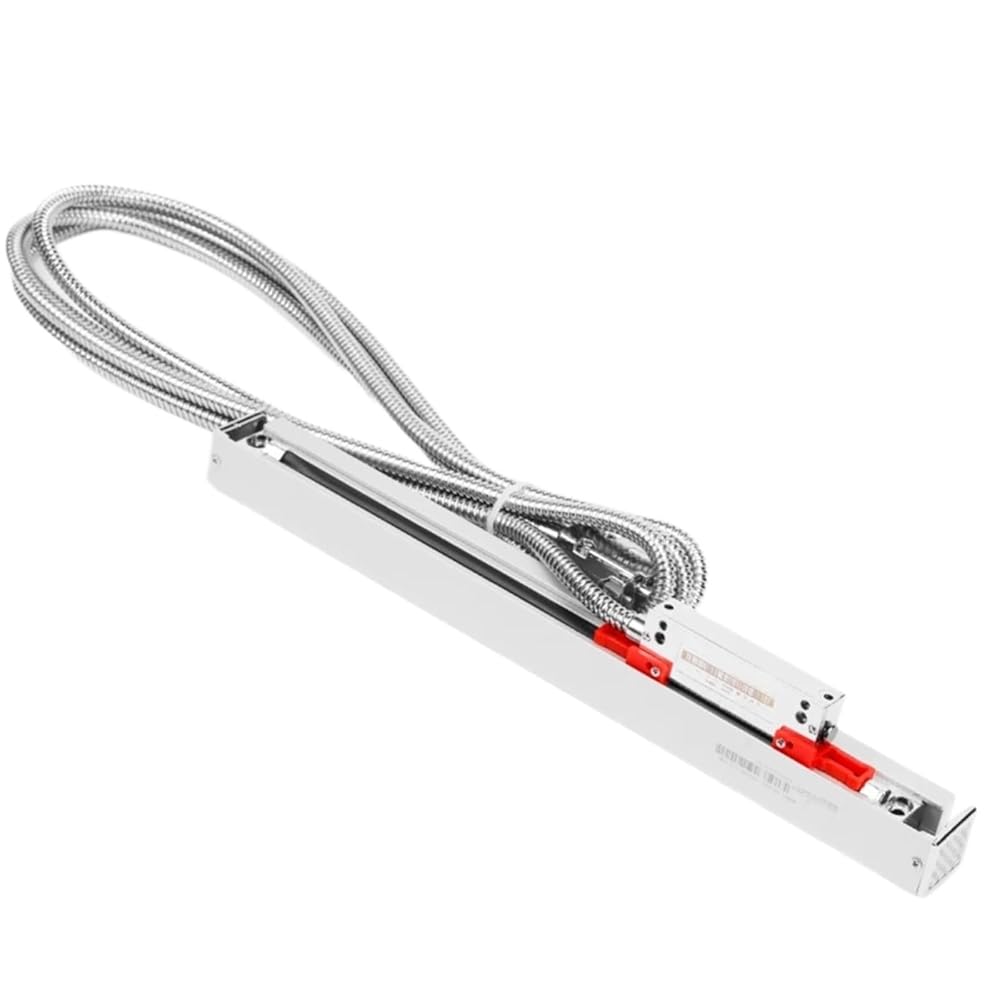

Linear Sensors, 5micron Optical Encoder Ruler 70-420mm Slim Optical Grating Ruler, 1pc
Model: K5
Advantage: Slim scale suits for small machine tool
Product name: Linear scale sensor
Travel/working length: 70mm-470mm
Resolution: 0.005mm
Ouput signal: RS-422/EIA-422-A
Input voltage:5VDC
Cale length: 3 meters
Battery Included : No
High-concerned chemical : None
Model Number : Small Size K5 RS422
Item name : linear scale linear ruler linear encoder
Input voltage : 5VDC
Output signal : RS-422/EIA-422-A
Resolution : 5um/0.005mm
Scale travel : 70 120 170 220 270 320 370 420mm
Scale total length : travel + 112mm
Dimension : 18mm*20mm
If include accessories : Yes(with scale cover, screws and accessories)
