مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

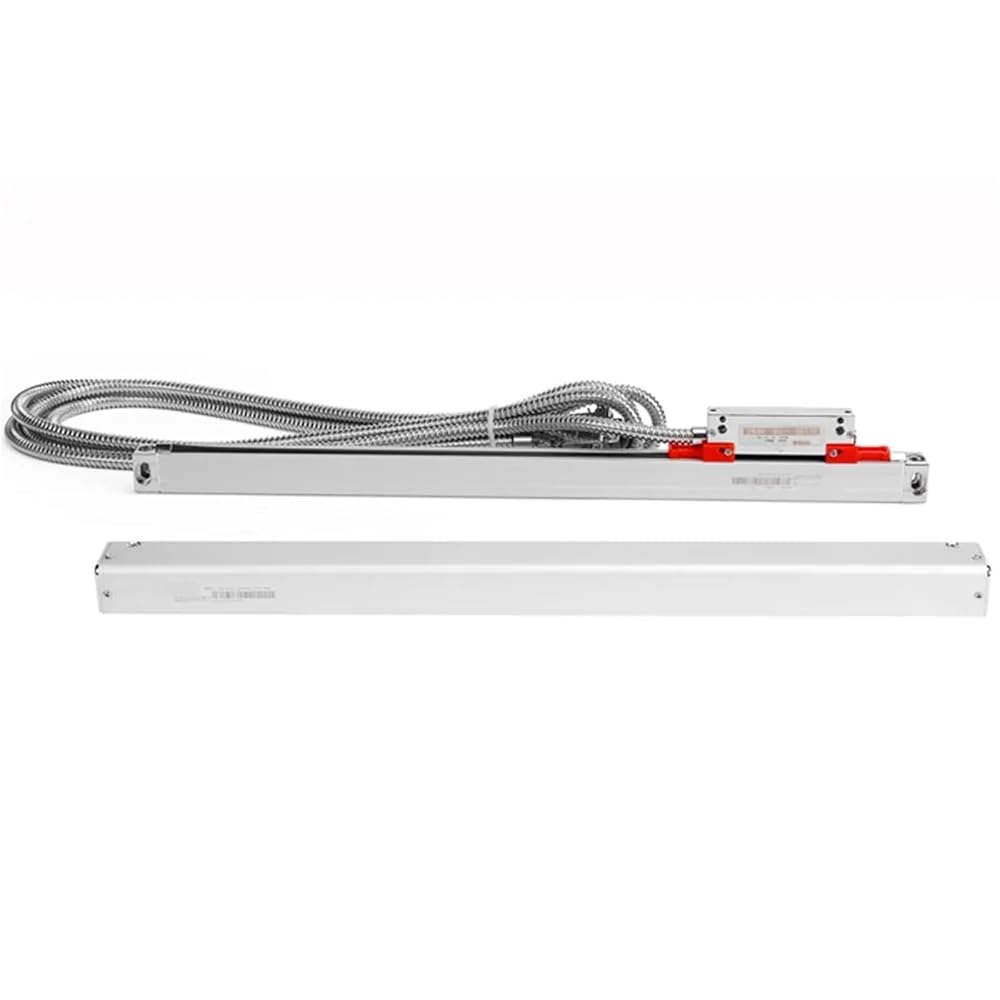

TTL KA500 Optical Linear Sensors, Electronic Grating Ruler Incremental Encoder Dro Lathe Milling Machine, 1pc
who have requirements for position. The length is 70~470mm
1. technical parameters
1.1, pitch:0.02 mm (50 line /mm)
1.2, resolution:5 um, 1 um, 0.5um
1.3, accuracy:+ 3um + 5um + 15um m/m (20 + 0.1 C)
1.4, range:30-470mm
1.5, moving speed: Ordinary ruler 60m/min
1.6, power supply:+5V + 5%, 80mA
1.7, the length of the cable: Standard 3M (special length can provide according to the needs of the user)
1.8, working temperature: 0~45
Battery Included : No
High-concerned chemical : None
Model Number : KA500
MSTBODEN Model : KA500
