Special Features

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

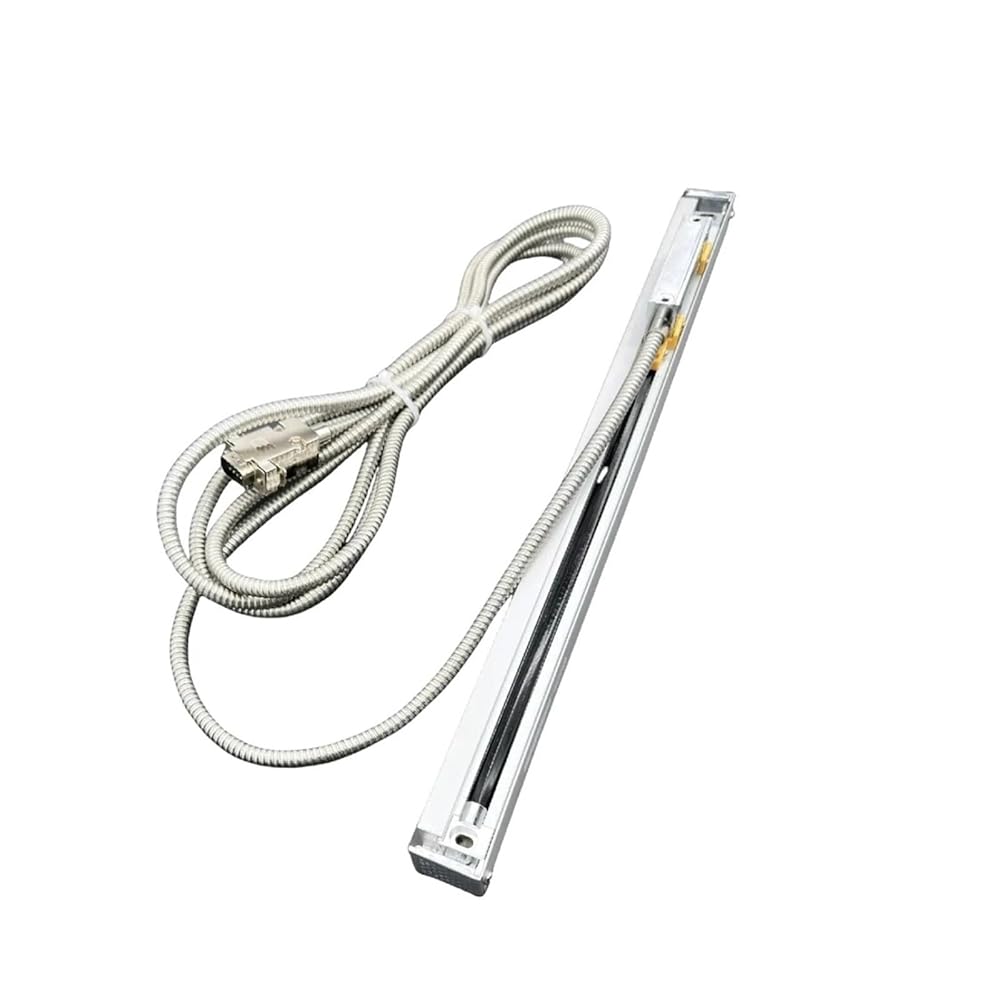

KA500 1um 70-370mm Slim DRO Linear Sensors, 18x20mm Thin Lathe Linear Encoder Grating Ruler Sensor, 1pc
Model: KA500
Available measurement: 70mm to 420mm
Total length: measurement +112mm
Dimensions Cross section dimensions: 18mmx20mm
Input voltage: 5VDC
Power supply: +5V±5%,80mA
Moving speed:60m/min
Output signal: TTL
Connector: 9 pin socket
Resolution: 1um/0.001mm
Cable length: 3 meters
Battery Included : No
High-concerned chemical : None
Product name : linear scale
Travel length : 70 120 170 220 270 320 370mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.001mm/1um
Cable length : 3 meters
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cross section size : 18mmx20mm
