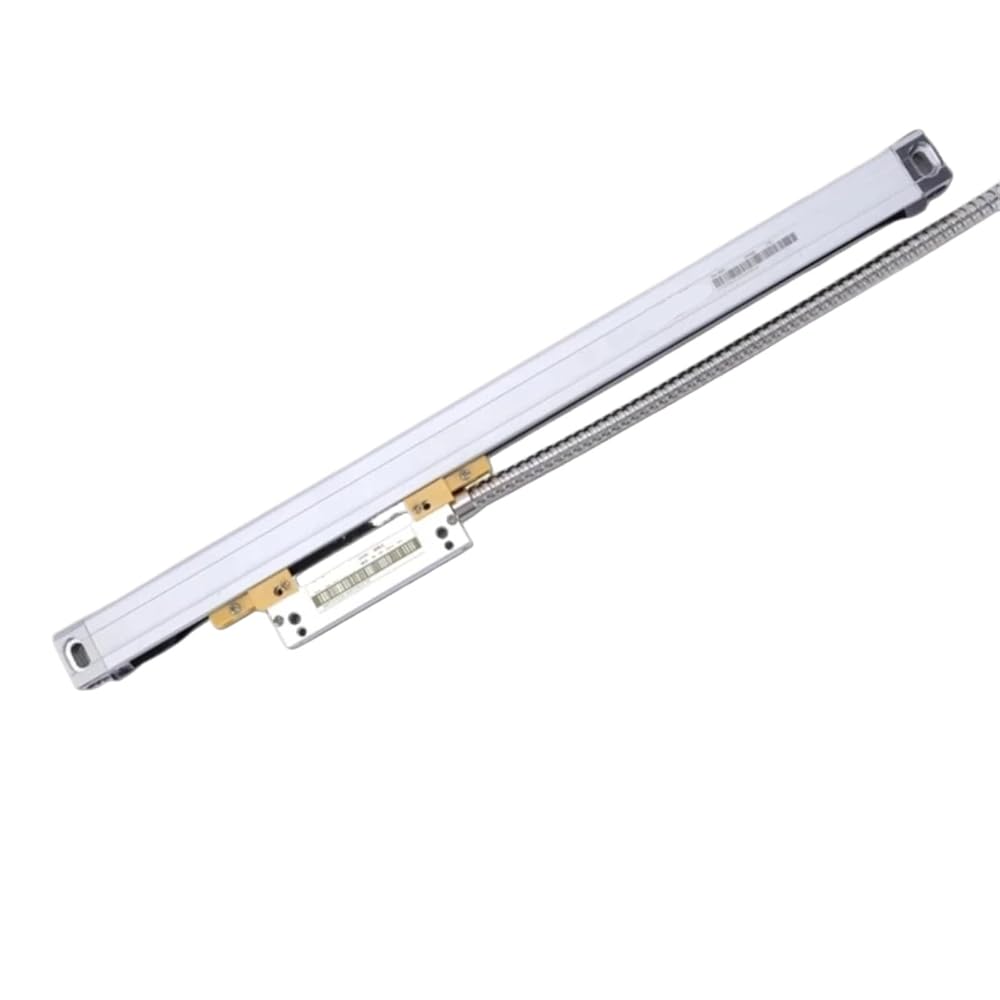

KA-500 70/420mm TTL DRO Linear Glass Scale, KA500 0.005mm Optical Encoder Ruler, 1pc(KA500-5um-170mm) in Saudi Arabia KA-500 70/420mm TTL DRO Linear Glass Scale, KA500 0.005mm Optical Encoder Ruler, 1pc(KA500-5um-170mm) in Saudi Arabia

KA-500 70/420mm TTL DRO Linear Glass Scale, KA500 0.005mm Optical Encoder Ruler, 1pc(KA500-5um-120mm)

SAR 1,514
Brand
LOXNVUY
Category
Sensors
ColorKA500-5um-120mm
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

KA-500 70/420mm TTL DRO Linear Glass Scale, KA500 0.005mm Optical Encoder Ruler, 1pc
Model: KA500
Available measurement: 70mm to 770mm
Installation holes distance:measurement +102mm
Total length: measurement +112mm
Dimensions Cross section dimensions: 18mmx20mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3 meters
Battery Included : No
High-concerned chemical : None
Model Number : KA500
Product name : linear scale
Travel length : 70mm-420mm
Resolution : 0.005mm/5um
Cable length : 3 meters
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cross section size : 18mm x 20mm
Application : Mill, Lathe, Grinder, CNC Etc.
