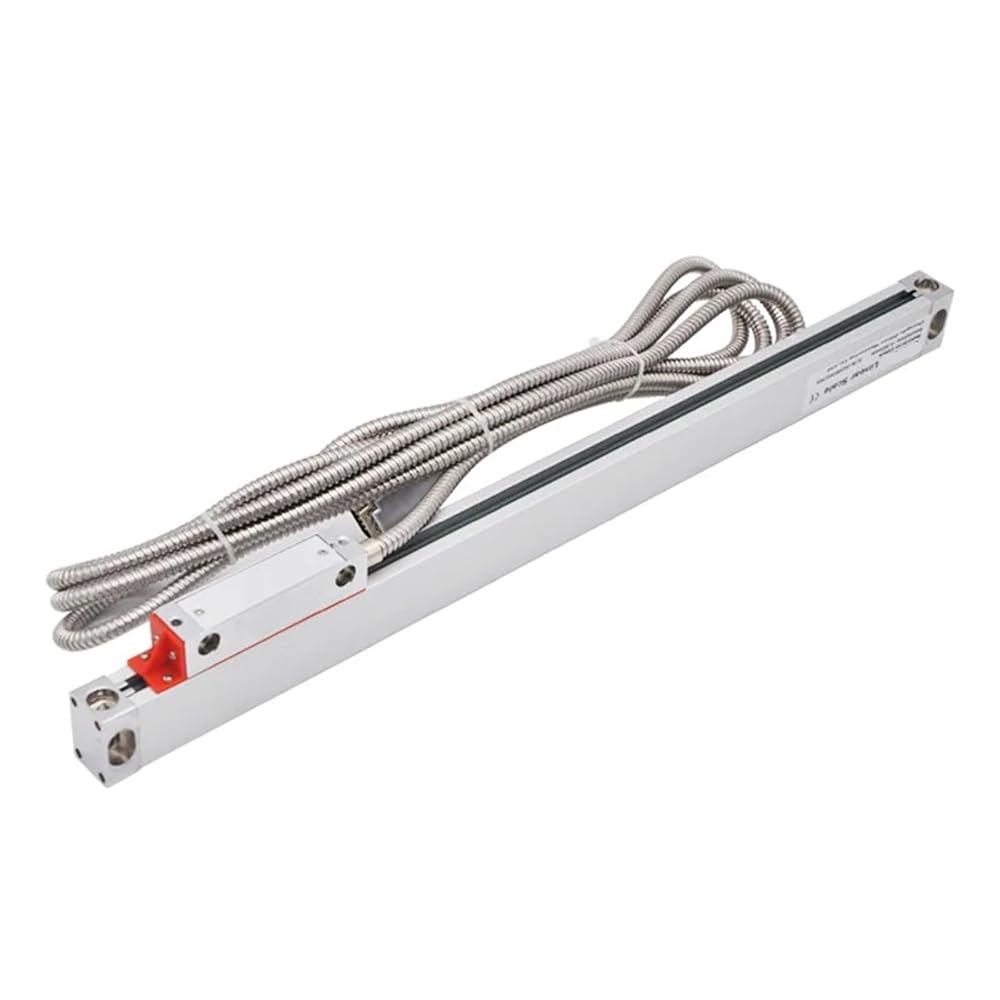

Optical Glass Linear Scale Sensor, 0.001mm Encoder Suitable DRO Readout Display for Lathe Milling Machine, 1pc(1000mm Travel) in Saudi Arabia

350mm travel

SAR 1,039
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
Color350mm travel
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

Optical Glass Linear Scale Sensor, 0.001mm Encoder Suitable Dro Readout Display for Lathe Milling Machine, 1pc
Technical Parameters:
1.Avaliable measuring length:50-1100mm
2.Cross Section:20.5*31mm
3.Resolution:5um
4.Accurancy:±5u,±10um/M
5.Working Temperature:-10C°-60C°
6.Sealing Protection:IP55
7.Max.Moving Speed:60M/Min
8.Reference Point: Every 50mm
9.Output Signal:5VTTL/RS422
10.Connector:9 pins
Advantage:
1.Vertical five bearings sliding system,smooth and accurate movement.
2.Calibrated by Laserinterferometer,accuracy giaranteed
3.Full sealing structure,swarf and coolant proof.
4.Special oil resistance,corrosion resistant.
5.With high level of anti-interference ability,high stability,high speed and vibration resistance.
Battery Included : No
High-concerned chemical : None
Model Number : DC11
Measuring Length : 50-1100mm
Cross Section : 20.5*31mm
Sealing Protection : IP55
Max.Moving Point : 60M/Min
Reference Point : Every 50mm
Usuage : Measuring Length
Resolution : 1um
