مميزات خاصة

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

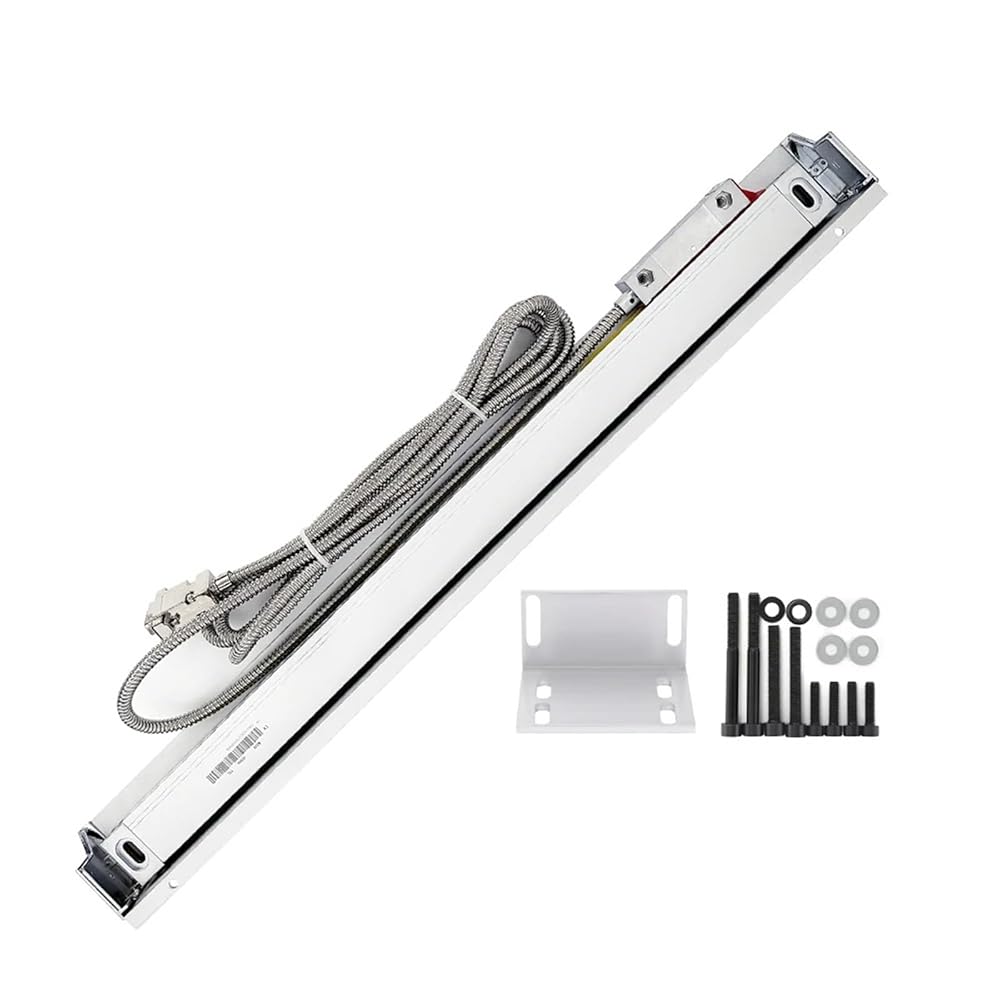

0.005mm K35 Linear Sensors, 500mm/1000mm TTL Optical Grating Ruler Sensor Linear Scale, 1pc
Model: K35
Available measurement: 500mm to 1000mm
Total length: measurement+142mm
Size cross section size: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3meters
Battery Included : No
High-concerned chemical : None
Model Number : KA35 5m 5V
Accuracy : 5um/0.005mm
Output mode : TTL
Input voltage : DC 5V
Interface Typ : DB9
Max of Measuring speed : 60m/min
Installation holes distance : Travel+124mm
Scale overall length : Travel+140mm
Cable length : 3 meters
