Linear Scale Sensors, 5um TTL Lathe Mill Machine KA35 100mm/400mm Grating Ruler Optical Encoder, 1pc(100mm Travel) in Saudi Arabia

350mm Travel

SAR 1,138
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
Color350mm travel
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

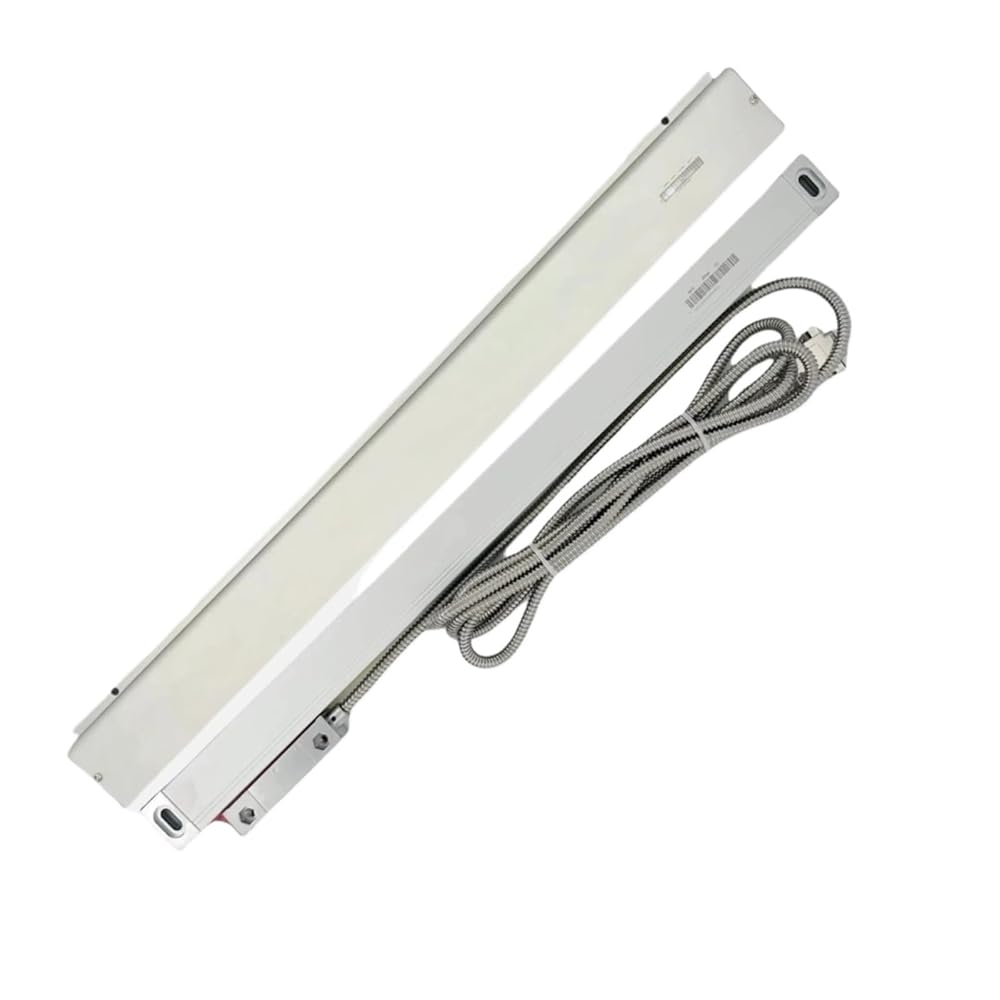

Linear Scale Sensors, 5um TTL Lathe Mill Machine KA35 100mm/400mm Grating Ruler Optical Encoder, 1pc
Parameter
Model: KA35
Available measurement: 100mm to 400mm
Total length: measurement+140mm
Size cross section size: 21.5mmx33.5mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3meters
Specifications:
Model: KA35
Scale cable: 3 meters
Resolution: 5um
Scale available travel length: 100mm-400mm
Total Length: Measurement + 140mm
Output Signal: TTL
Features:
Precision and Versatility
The High Precision Milling Lathe Grinder DRO Linear Glass Scale is a state-of-the-art tool designed for professionals who demand the highest level of accuracy in their machining processes. With a resolution of 5um/0.005mm, this scale ensures precise measurements, making it ideal for a wide range of applications, from turning lathes to milling machines and grinders. The scale's overall length, including the travel and mounting bracket, is 142mm longer than the measurement range, providing ample space for installation and adjustment.
Battery Included : No
High-concerned chemical : None
Model Number : KA35
Product name : linear scale
Travel length : 100mm 150mm 200mm 250mm 300mm 350mm 400mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters
Scale overall length : Travel+140mm
Installation holes distance : Travel+124mm
Cross section size : 21.5mm*33.5mm
Application : Mill, Lathe, Grinder, CNC Etc.
