Special Features

【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

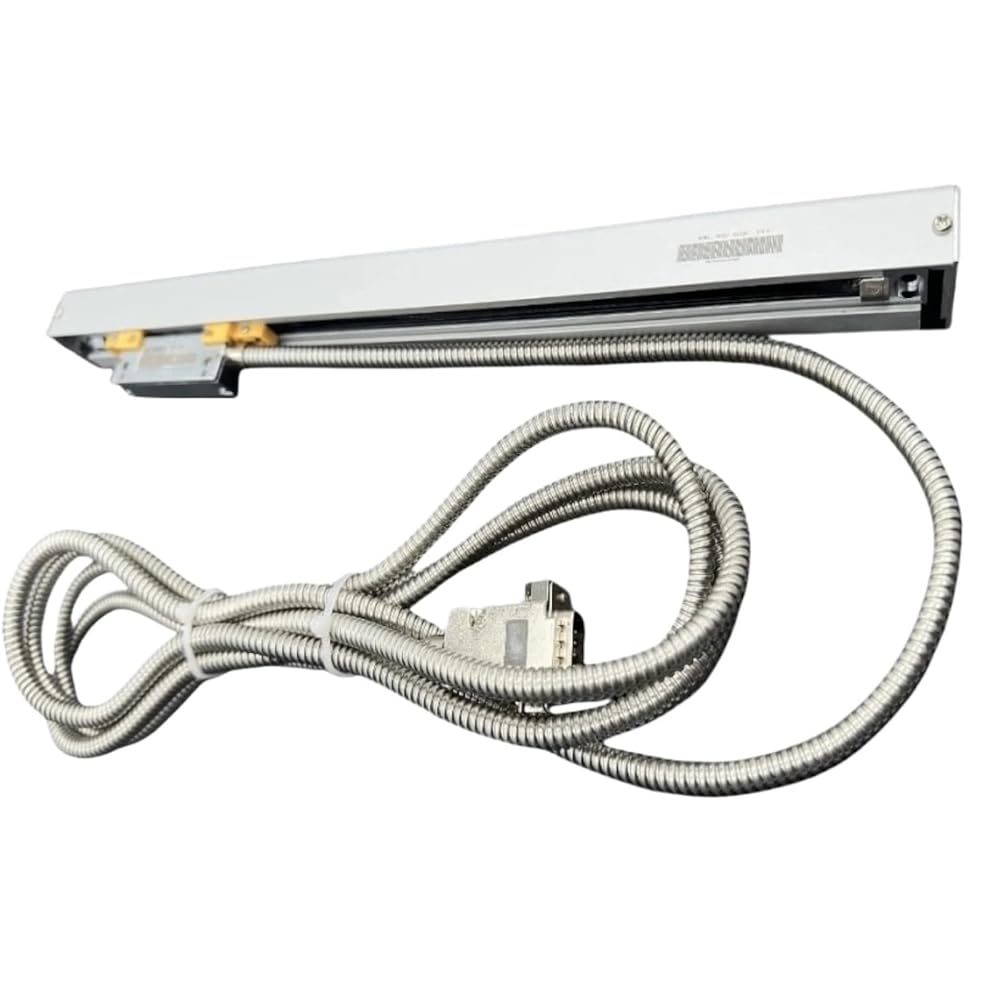

5μm Slim Linear DRO Glass Scale, TTL 5VDC 470mm-770mm Grating Ruler Sensor Displacement, for Milling Lathe Machine, 1pc
Model: KA500
Available measurement: 470mm to 770mm
Total length: measurement+112mm
Size cross section size: 18mmx20mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um/0.005mm
Cable length: 3meters
Specifications:
Model: KA500
Scale cable: 3 meters
Resolution: 5um
Scale available travel length: 470mm-770mm
Total Length: Measurement + 112mm
Output Signal: TTL
Features:
Precision and Versatility
The High Precision Milling Lathe Grinder DRO Linear Glass Scale is a state-of-the-art tool designed for professionals who demand the highest level of accuracy in their machining processes. With a resolution of 5um/0.005mm, this scale ensures precise measurements, making it ideal for a wide range of applications, from turning lathes to milling machines and grinders. The scale's overall length, including the travel and mounting bracket, is 112mm longer than the measurement range, providing ample space for installation and adjustment.
Battery Included : No
High-concerned chemical : None
Model Number : KA500
Product name : linear scale
Travel length : 470mm-770mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cross section size : 18mm*20mm
Application : Mill, Lathe, Grinder, CNC Etc.
