50mm-175mm KTC Linear Displacement Sensor, Pull Rod Electronic Ruler Position Transducer, 1pc(125mm) in Saudi Arabia 50mm-175mm KTC Linear Displacement Sensor, Pull Rod Electronic Ruler Position Transducer, 1pc(125mm) in Saudi Arabia

50mm-175mm KTC Linear Displacement Sensor, Pull Rod Electronic Ruler Position Transducer, 1pc(100mm)

SAR 475
Brand
LOXNVUY
Category
Sensors
Weight
0.6 kg
– 1 +

Special Features

  • 【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
  • 【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
  • 【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
  • 【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
  • 【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

Description

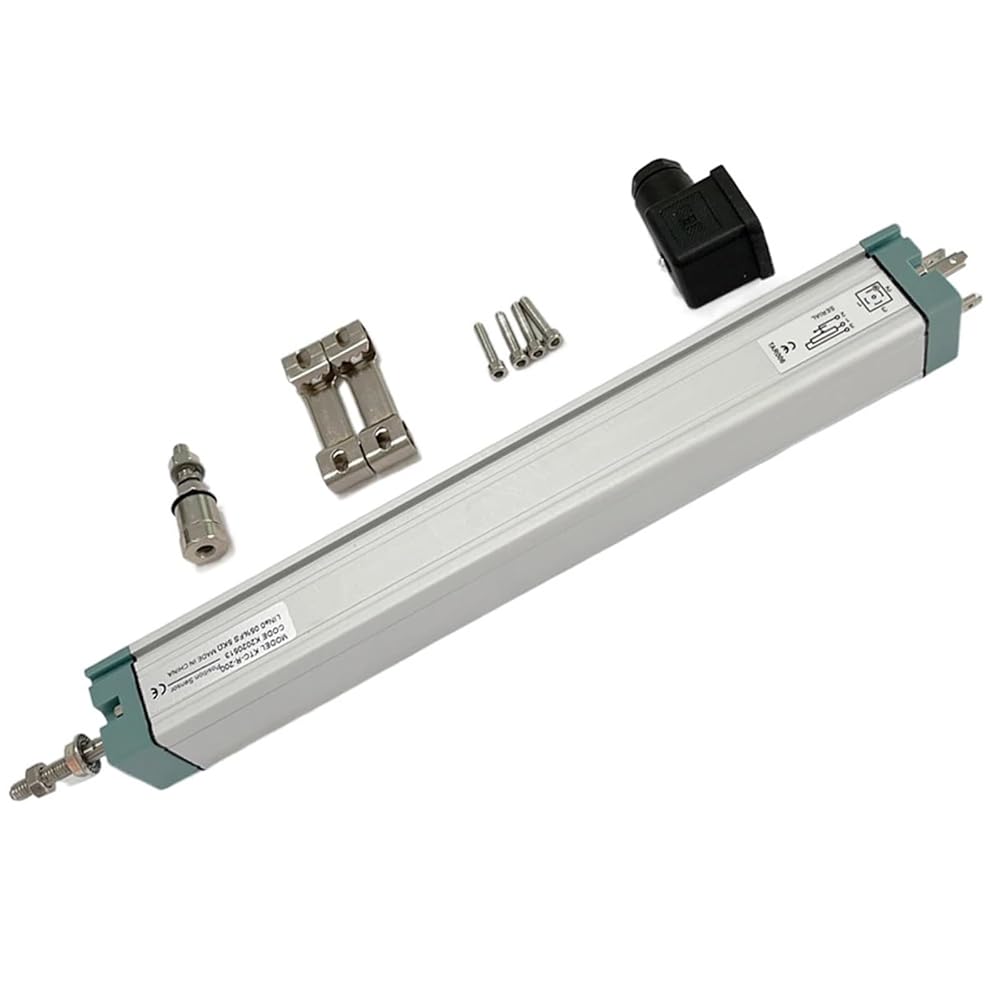

50mm-175mm KTC Linear Displacement Sensor, Pull Rod Electronic Ruler Position Transducer, 1pc
Function:
Molding machine, die casting machine woodworking machinery, hydraulic machinery, medical machinery,
Light industry equipment automatic doors, oil presses and other industries, etc.
The sensor is used in the positioning of the mold, a linear sensor necessary for automatic production machines.
Measure Stroke:50-1250mm
Output Module: 5K/10K (Default option)
4-20mA,0-5v/10v,RS485
Other output signals will have to add a transmitter to convert the corresponding signal
Type: KTC / LWH
Feature :
1.Usage Life Is Longer , Times Could Reach Thirty Million
2.Linear Excellent
3.Resolution Rate Is Higher Than 0.01mm
4.High Speed
5.Din 43650 Standard Plug And Socket
6.Protection Grade Is Ip65
The only difference is the installation of the brackets.
Sliding type is the KTC(GREEN,RED).
Compression type is the LWH(BLACK).
Click the product image below for LWH
Battery Included : No
High-concerned chemical : None
Model Number : KTC
Measuring stroke : 50 to 1250 mm
Repeated : 0.02mm
Resolution : infinite
Resistance tolerance : ±%20
Allow power supply voltage : 28V
Shell size : 32mX 32mm
Shell material : Anodized Aluminum
Rod material : Stainless steel
Rod diameter : 6mm
Mechanical fixation : Adjustable stand
IP degree : IP 65
Operating temperature : -40/+80
